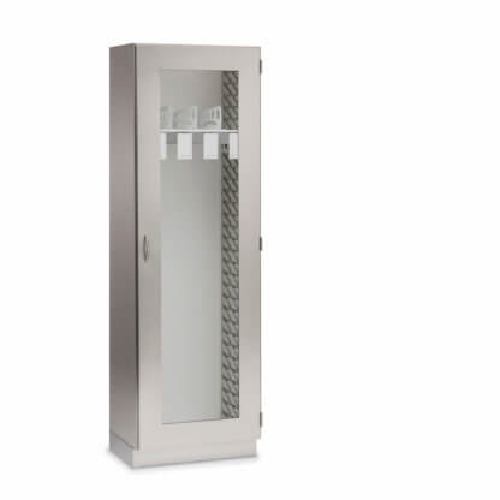

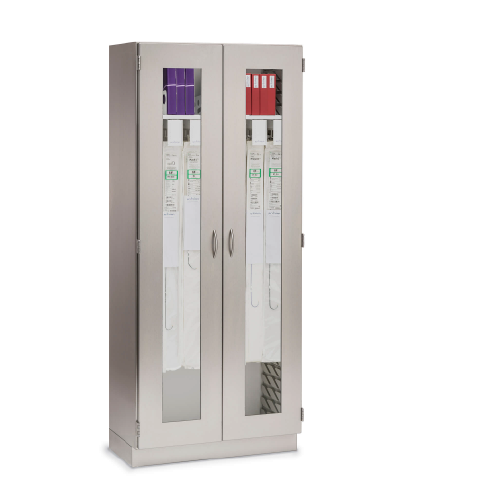

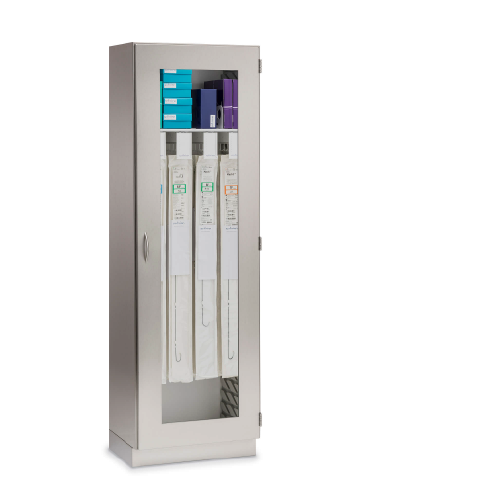

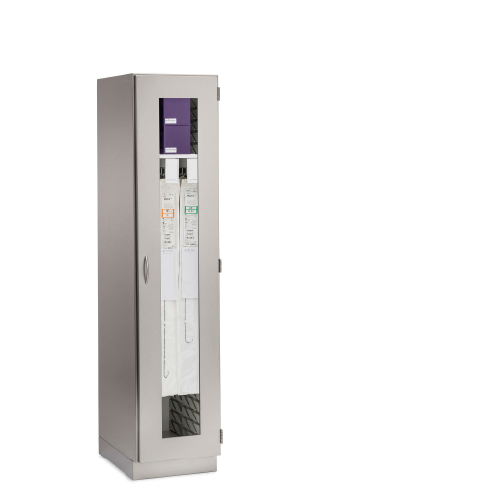

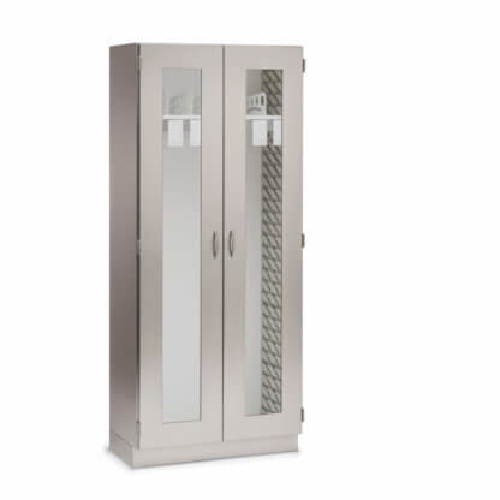

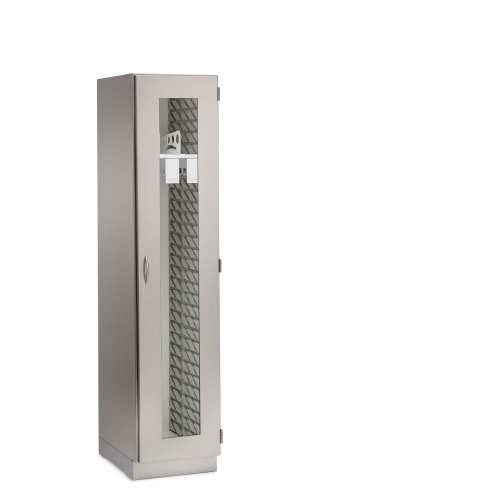

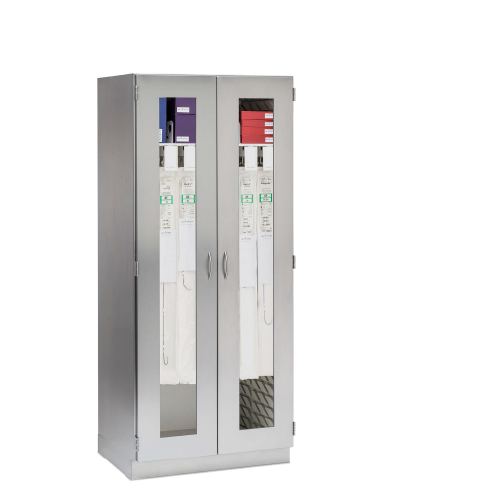

Catheter Cabinet

Product Numbers

Hinged Door:

18.75″w x 27.25″d x 84″h

• SES2719TGRCC, SES2719TGLCC

26.75″w x 19.25″d x 84″h

• SES1927TGRCC,  SES1927TGLCC

36″w x 19.25″d x 84″h

• SES1936TGCC

36″w x 27.25″d x 84″h

• SES2736TGCC

Dimensions

Nominal

Hinged door: exterior (interior)

• 18.75″w x 27.25″d x 84″h (14.5″w x 24.75″d x 78.5″h)
• 26.75″w x 19.25″d x 84″h (22.5″w x 16.75″d x 78.5″h)
• 36″w x 19.25″d x 84″h (31.75″w x 16.75″d x 78.5″h)
• 36″w x 27.25″d x 84″h (31.75″w x 24.75″d x 78.5″h)

Cabinet with 6”h toe kick is 86”h; cabinet with no toe kick is 80”h

Interior Configuration

36”w cabinet: 1 double-compartment shelf, 5 shelf dividers, and 7 cath managers
26.75”w cabinet: 1 single-compartment shelf, 3 shelf dividers, and 4 cath managers
18.75”w cabinet: 1 single-compartment shelf, 2 shelf dividers, and 3 cath managers

Cabinet with hinged door:

• 50 FlexCells

Materials and Finishes

• Cabinet shell: 18-gauge 304 stainless steel with 18% chrome and 8% nickel analysis; exposed surfaces furnished with #4 mill finish
• Door: 0.125″ poly-sealed tempered glass or solid hinged doors with 18-gauge 304 stainless steel construction
• Hinges: Stainless steel
• Door Pulls: 5” stainless steel bow pull
