Scope Tracking Cabinet

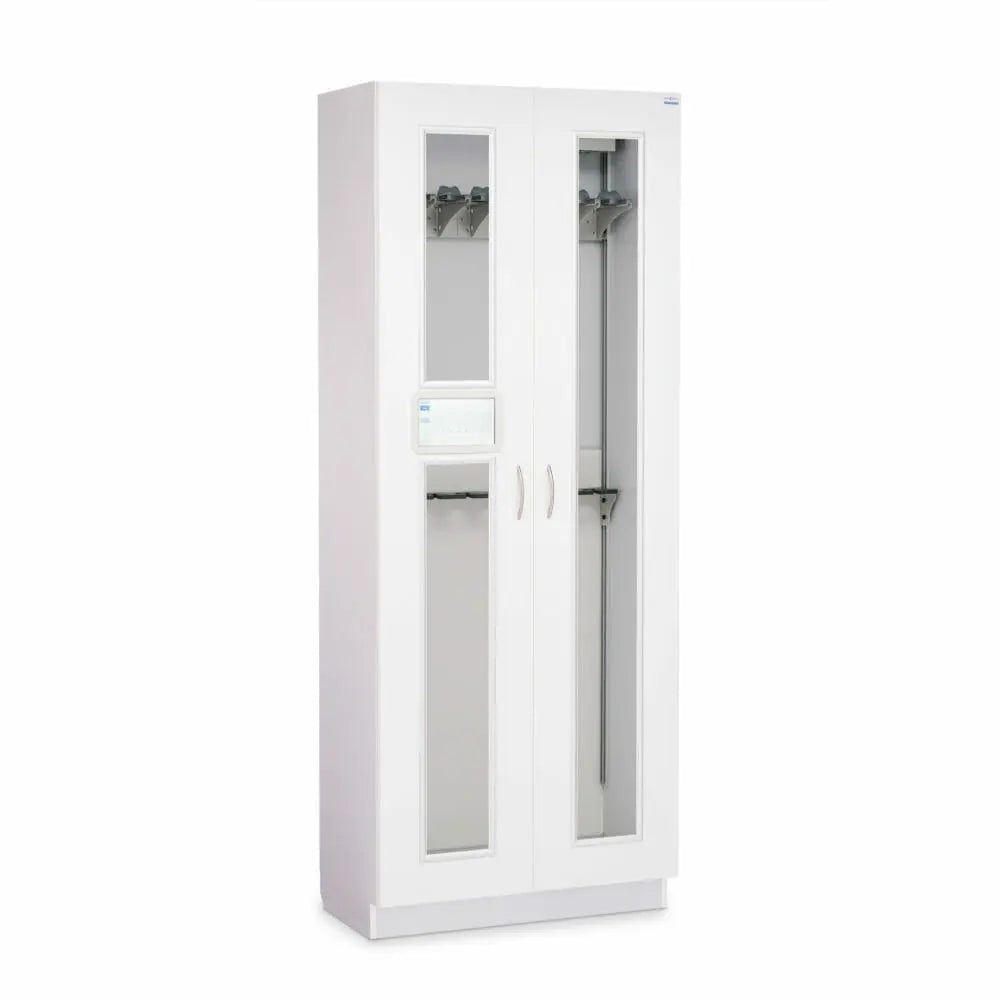

The 19.25”-deep scope tracking cabinet comes in 3 widths and 3 heights with solid-front or tempered glass doors. The scope tracking cabinet efficiently and cost-effectively monitors endoscope storage. It identifies scope locations, storage times, channel availability, and lengths of time before scopes expire. Material choices include compression board with a melamine or specified laminate surface, stainless steel, or nonporous AireCore with Glacier White finish, Brushed Aluminum finish, or specified laminate surface. Cabinet has a 4”-high toe kick.

Remotely monitor scope tracking and storage with Innerspace Cloud services, which includes pre-loading of data, configuration of products after installation, and onsite and on-demand training.

Details

Note: Overall cabinet height may vary based on selected configuration. Final dimensions will be confirmed prior to order placement.

Dimensions (Nominal)

Exterior (Interior), Scope hanging length

• 26.75″w x 19.25″d x 48″h (25.25″w x 17″d x 46.5″h), 40″ maximum
• 26.75″w x 19.25″d x 60″h (25.25″w x 17″d x 54.5″h), 51″ maximum
• 26.75″w x 19.25″d x 92″h (25.25”w x 17”d x 86.5”h), 83” maximum
• 36″w x 19.25″d x 92″h (34.5”w x 17”d x 86.5”h), 83” maximum
• 40”w x 19.25”d x 92”h (38.5”w x 17”d x 86.50”h), 83” maximum

Interior Configuration

• 48”h and 60”h x 26.75”w cabinets hold 5 scopes
• 92”h x 26.75”w cabinet holds 5 or 10 scopes
• 92”h x 36”w cabinet holds 8 or 16 scopes
• 92”h x 40”w cabinet holds 9 or 18 scopes

Specifications

Electrical requirements for tracking unit:

• 120 VAC, 60Hz, 15-amp standard duplex receptacle
• Includes a 125V, 10-amp, 10-foot-long power cord

Materials and Finishes

Cabinet shell:

• AireCore: Aluminum composite with Glacier White finish or specified Wilsonart, Formica, or Pionite standard laminate
• AireCore with Brushed Aluminum finish: Aluminum composite with Brushed Aluminum finish
• Stainless Steel: 18-gauge 304 stainless steel with 18% chrome and 8% nickel analysis; exposed surfaces

Edge banding:

• AireCore with Brushed Aluminum finish: Brushed Aluminum acrylic

Solid-front doors:

• AireCore: Aluminum composite with Glacier White finish or specified Wilsonart, Formica, or Pionite standard laminate
• AireCore with Brushed Aluminum finish: Aluminum composite with Brushed Aluminum finish
• Stainless steel: 18-gauge 304 stainless steel with 18% chrome and 8% nickel analysis

Glass-front doors:

• AireCore: Aluminum composite with Glacier White finish or specified Wilsonart, Formica, or Pionite standard laminate with tempered glass and clear anodized aluminum trim
• AireCore with Brushed Aluminum finish: Aluminum composite with Brushed Aluminum finish with tempered glass and clear anodized aluminum trim
• Stainless steel: 18-gauge 304 stainless steel with 18% chrome and 8% nickel analysis and tempered glass

Hinges:

• AireCore and AireCore with Brushed Aluminum cabinet: Metal concealed European-style
• Stainless steel cabinet: Stainless steel

Door pulls:

• AireCore and AireCore with Brushed Aluminum cabinet: Dull chrome-plated steel bow pull
• Stainless steel cabinet: 5” stainless steel bow pull

Options

• Solid-front and glass door on 92”h cabinet; 48” h and 60”h cabinets have glass door only
• Door can be hinged on right or left side of 26.75”w cabinet
• Sloped top
• 6” toe kick
• Innerspace Cloud services are available to customers who purchase Ventaire Endoscopy System scope drying and tracking products

Product Numbers

To order a scope tracking cabinet, first specify the cabinet size, door type, material, and configuration, and then specify the scope tracking unit.

26.75”w x 19.25”d x 48”h

AireCore: SEA1927SGLW, SEA1927SGRW; AireCore and Brushed Aluminum: SEB1927SGLW, SEB1927SGRW; Stainless steel: SES1927SGLW, SES1927SGRW

26.75”w x 19.25”d x 60”h

AireCore: SEA1927SGLB, SEA1927SGRB; AireCore and Brushed Aluminum: SEB1927SGLB, SEB1927SGRB; Stainless steel: SES1927SGLB, SES1927SGRB

26.75″w x 19.25″d x 92″h

AireCore: SEA1927SGLS, SEA1927SGRS, SEA1927SSLS, SEA1927SSRS; with double scope holder: SEA1927SGLD, SEA1927SGRD, SEA1927SSLD, SEA1927SSRD; AireCore with Brushed Aluminum: SEB1927SGLS, SEB1927SGRS, SEB1927SSLS, SEB1927SSRS; with double scope holder: SEB1927SGLD, SEB1927SGRD, SEB1927SSLD, SEB1927SSRD; Stainless steel: SES1927SGLS, SES1927SGRS, SES1927SSLS, SES1927SSRS; with double scope holder: SES1927SGLD, SES1927SGRD, SES1927SSLD, SES1927SSRD

36″w x 19.25″d x 92″h

AireCore: SEA1936SGS, SEA1936SSS; with double scope holder: SEA1936SGD, SEA1936SSD; AireCore with Brushed Aluminum: SEB1936SGS, SEB1936SSS; with double scope holder: SEB1936SGD, SEB1936SSD; Stainless steel: SES1936SGS, SES1936SSS; with double scope holder: SES1936SGD, SES1936SSD

40”w x 19.25”d x 92”h

AireCore: SEA1940SGS, SEA1940SSS; with double scope holder: SEA1940SGD, SEA1940SSD; AireCore with Brushed Aluminum: SEB1940SGS, SEB1940SSS; with double scope holder: SEB1940SGD, SEB1940SSD; Stainless steel: SES1940SGS, SES1940SSS; with double scope holder: SES1940SGD, SES1940SSD

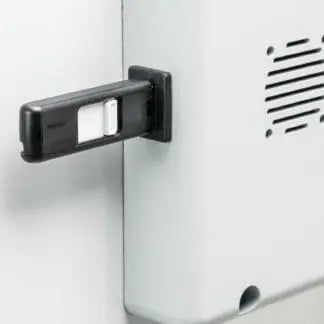

Scope Tracking Unit

When ordering a tracking unit for a stainless steel cabinet, add an S to the beginning of the product number.

For 26.75”w x 48”h left-hinged cabinet
5-scope unit: SVTUGL5W (for glass door cabinet)

For 26.75”w x 48”h right-hinged cabinet
5-scope unit: SVTUGR5W (for glass door cabinet)

For 26.75”w x 60”h left-hinged cabinet
5-scope unit: SVTUGL5B (for glass door cabinet)

For 26.75”w x 60”h right-hinged cabinet
5-scope unit: SVTUGR5B (for glass door cabinet)

For 26.75”w left-hinged cabinet
5-scope unit: SVTUSL5 (for solid door cabinet), SVTUGL5 (for glass door cabinet);
10-scope unit: SVTUSL10 (for solid door cabinet), SVTUGL10 (for glass door cabinet)

For 26.75”w right-hinged cabinet
5-scope unitt: SVTUSR5 (for solid door cabinet), SVTUGR5 (for glass door cabinet);
10-scope unit: SVTUSR10 (for solid door cabinet), SVTUGR10 (for glass door cabinet)

For 36”w cabinet
8-scope unit: SVTUS8 (for solid door cabinet), SVTUG8 (for glass door cabinet);
16-scope unit: SVTUS16 (for solid door cabinet), SVTUG16 (for glass door cabinet)

For 40”w cabinet
9-scope unit: SVTUS9 (for solid door cabinet), SVTUG9 (for glass door cabinet);
18-scope unit: SVTUS18 (for solid door cabinet), SVTUG18 (for glass door cabinet)
