Cabinet with FlexCell and Offset Column - Evolve FlexCell Series

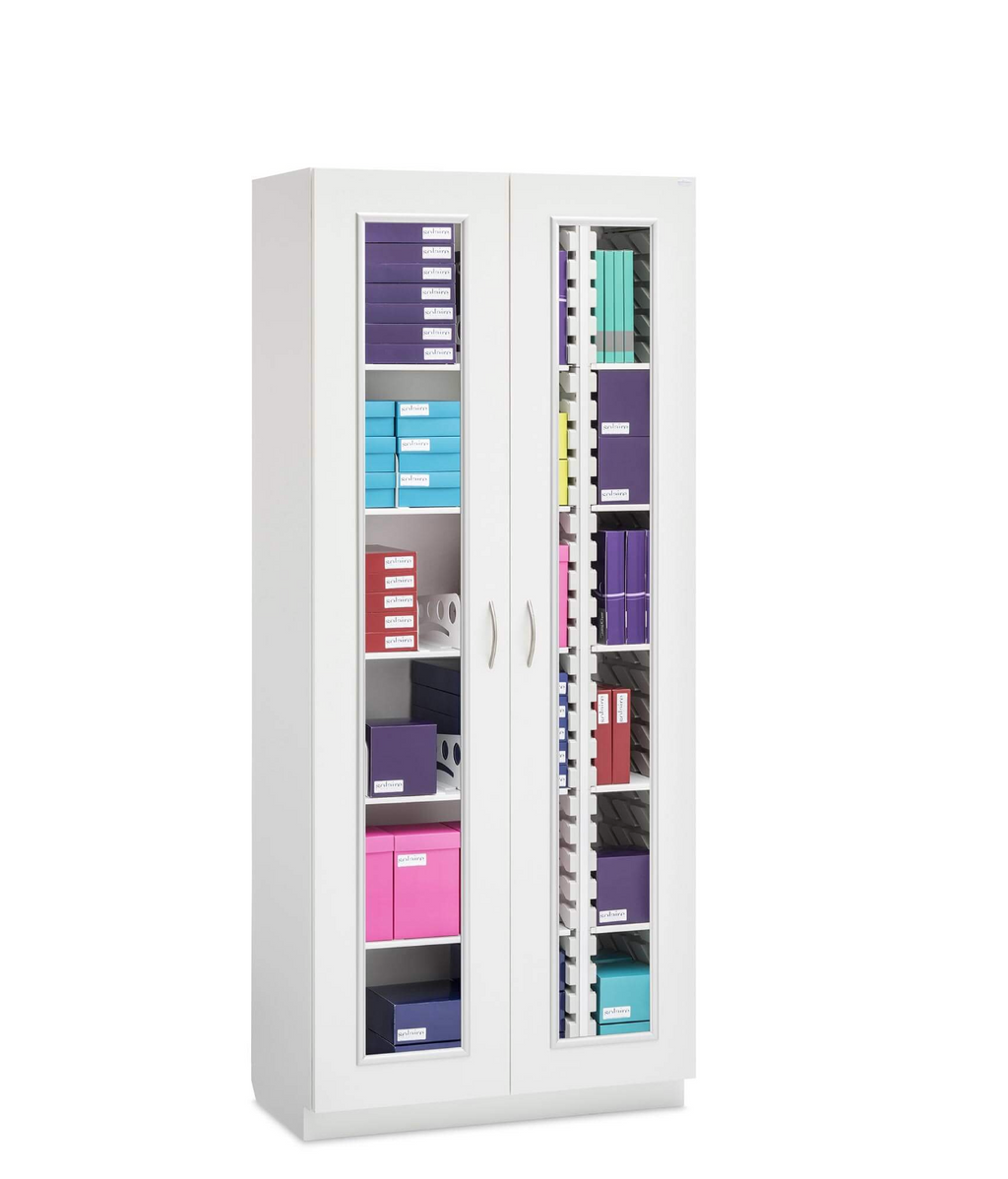

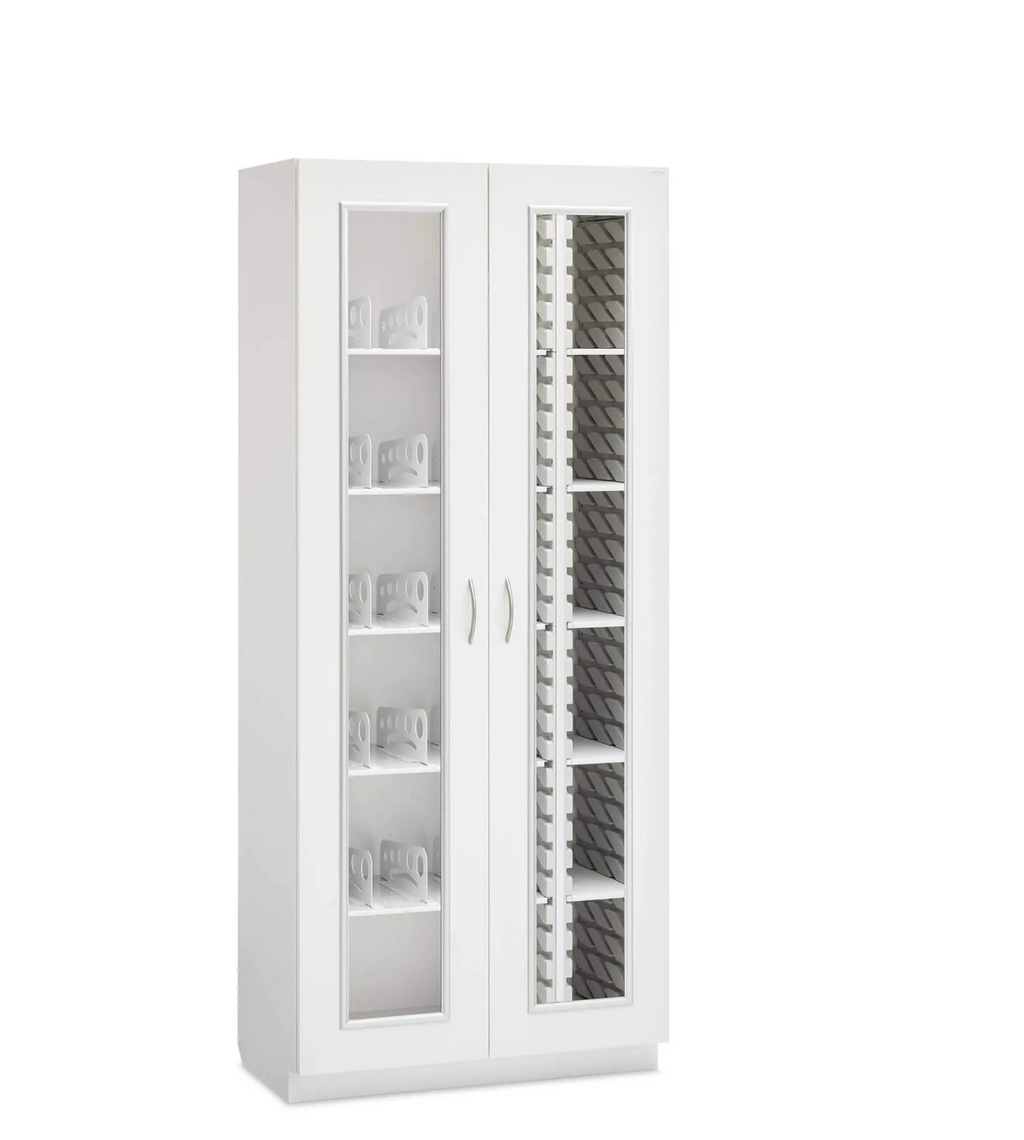

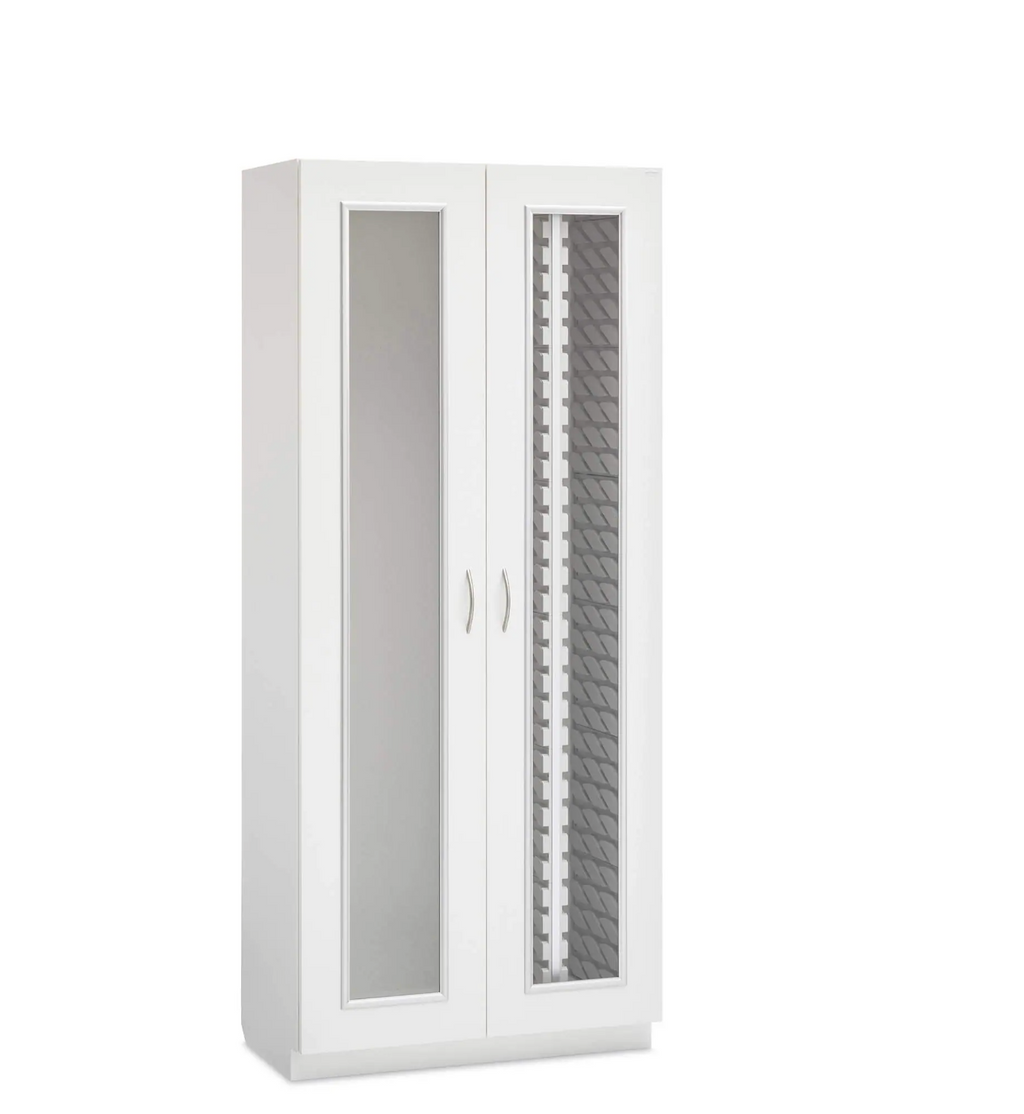

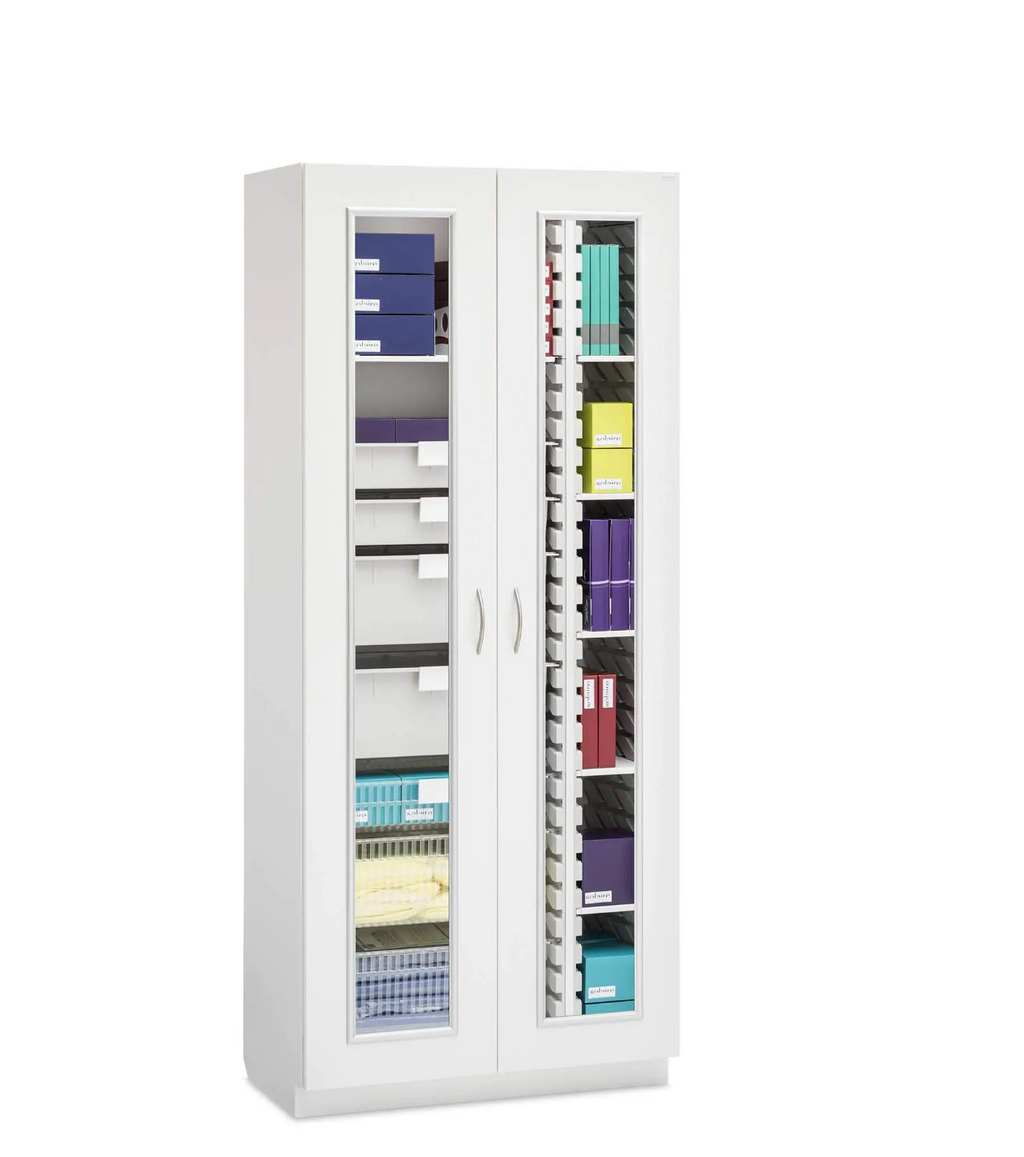

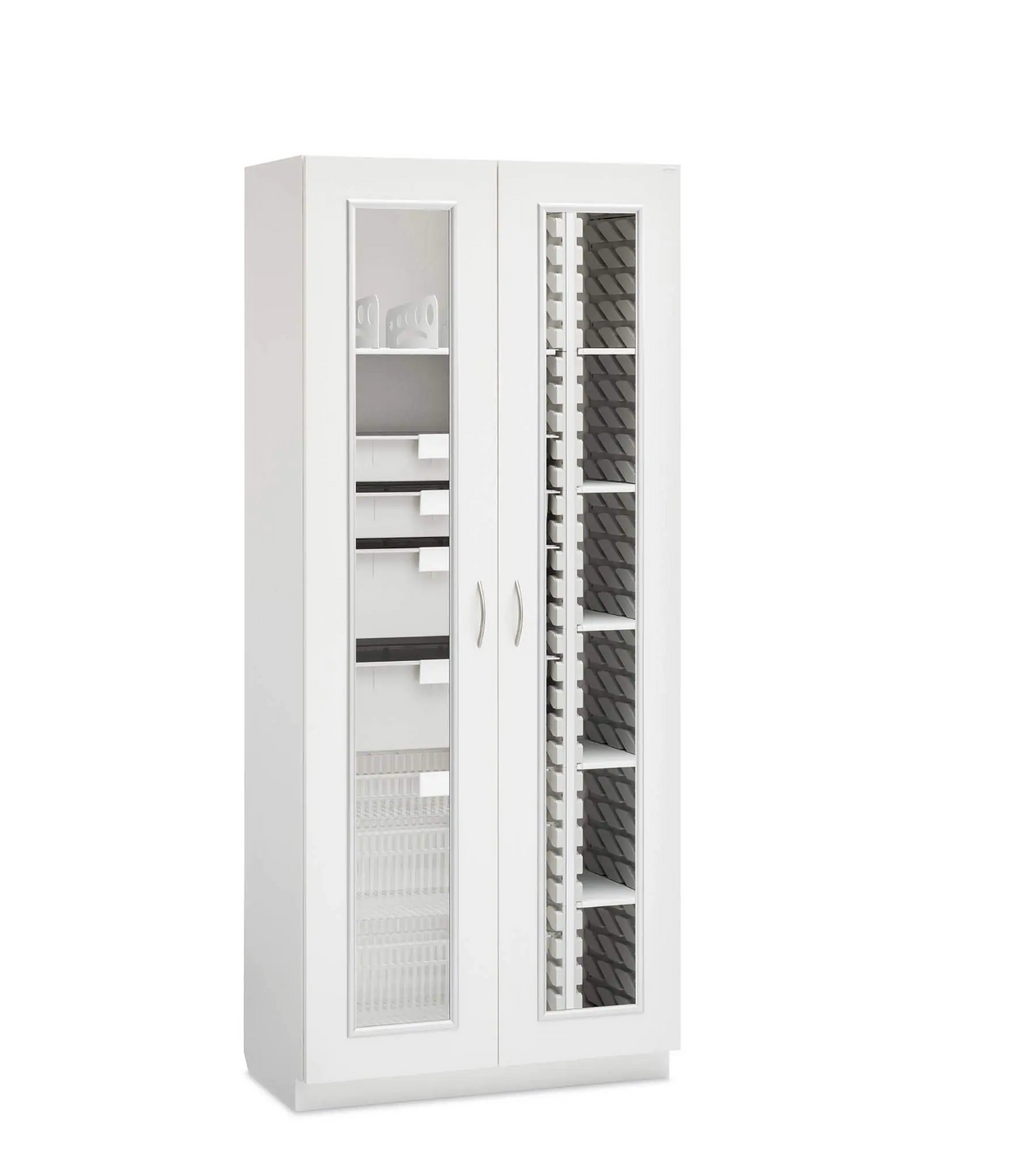

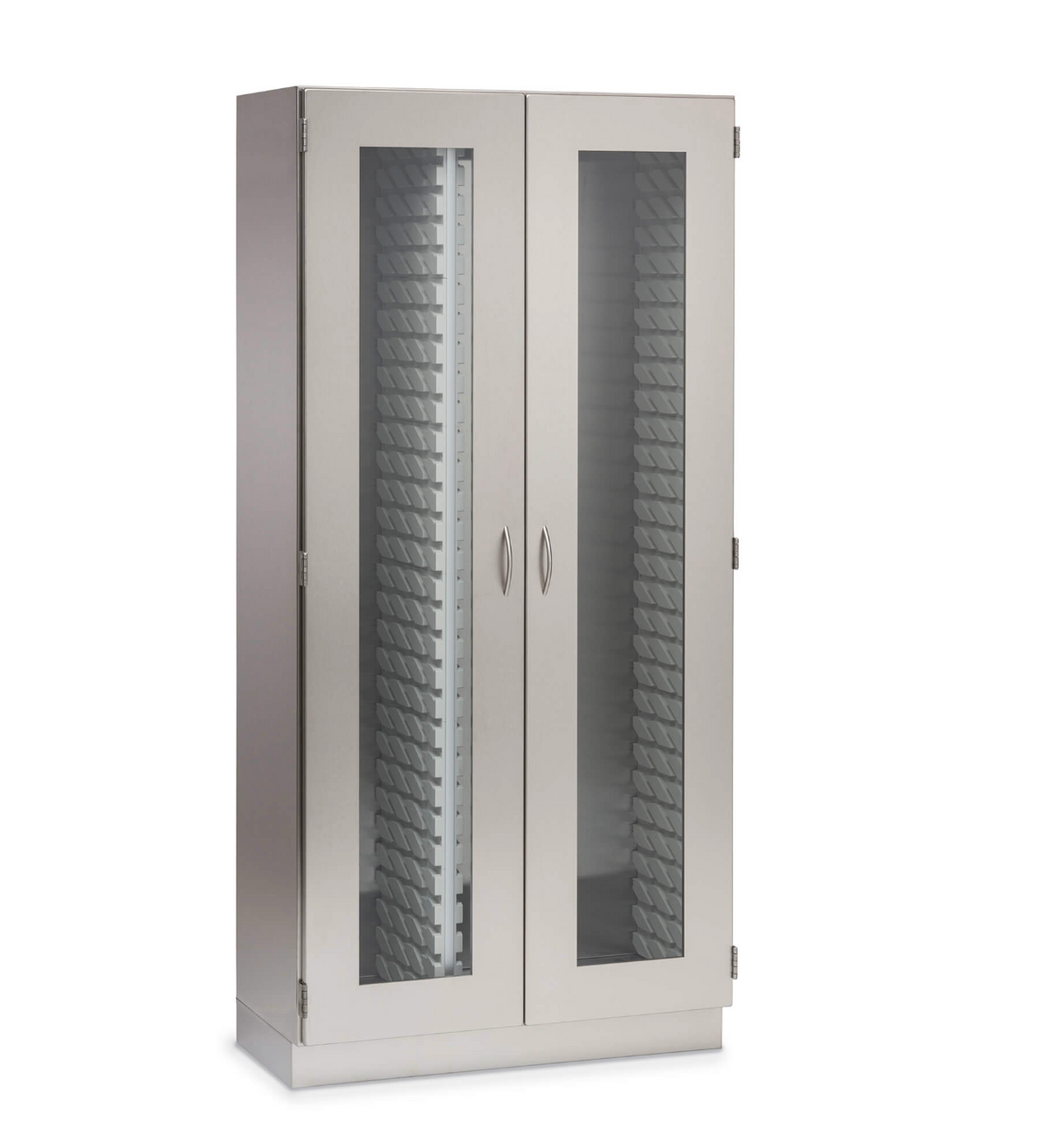

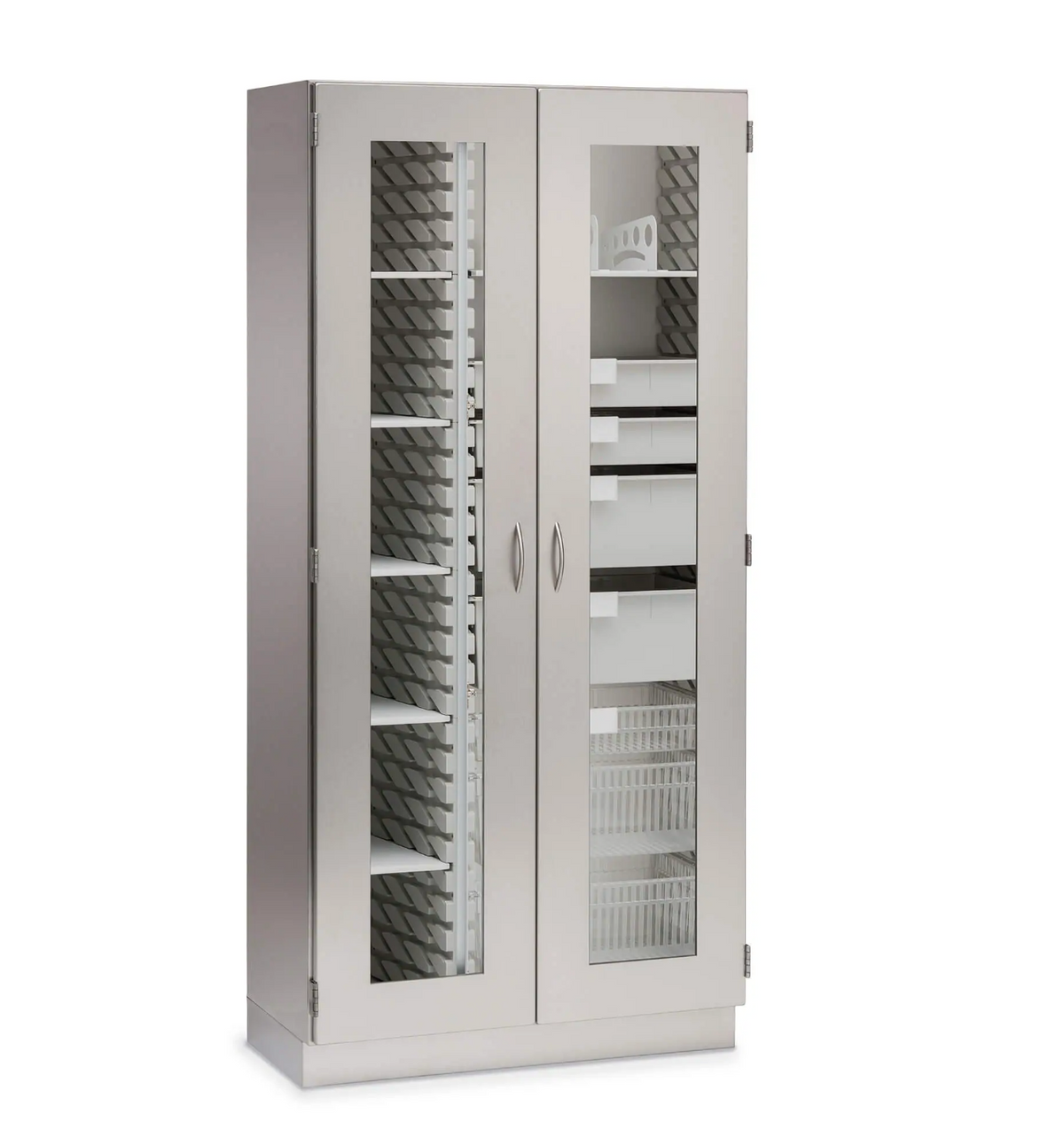

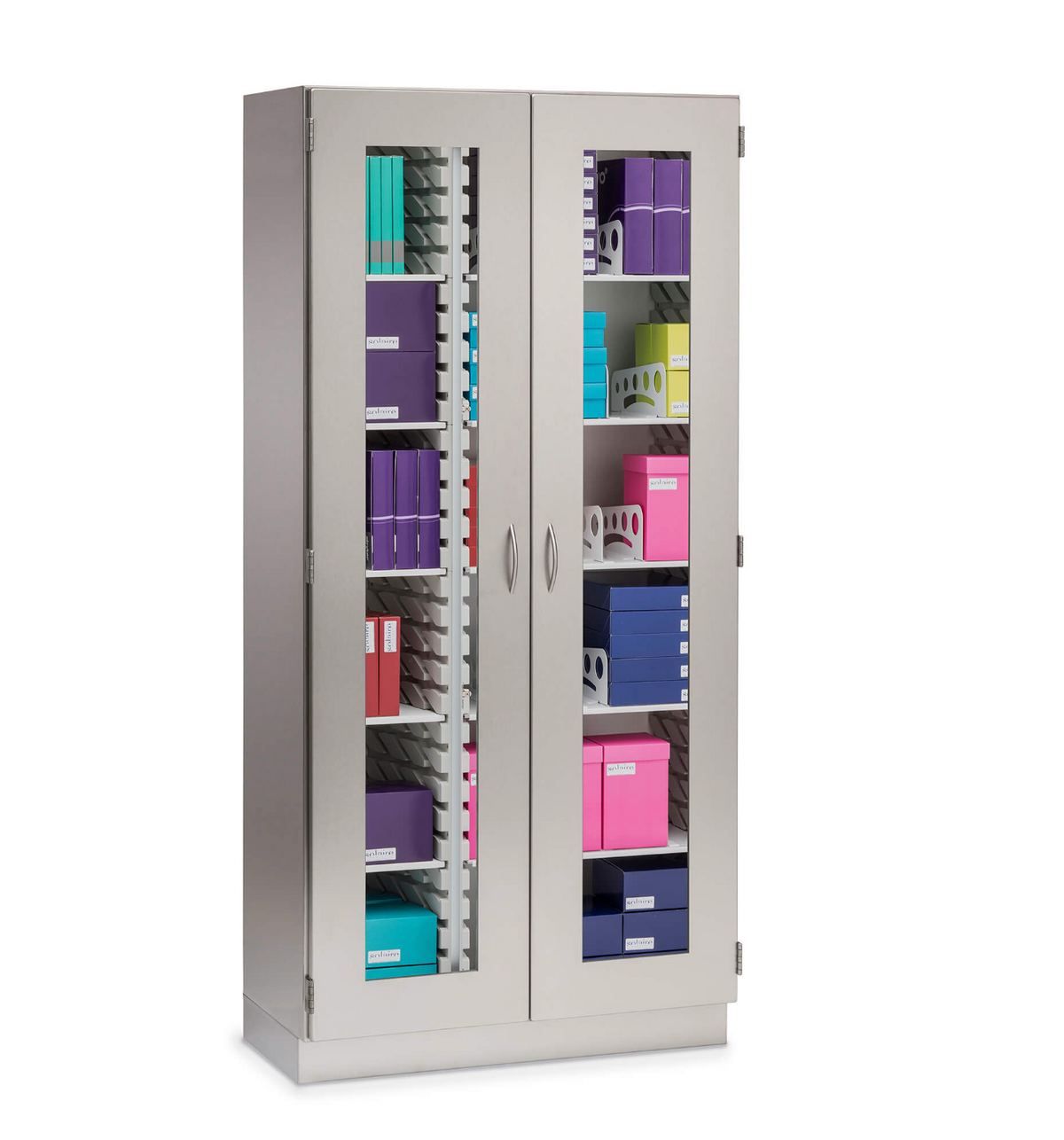

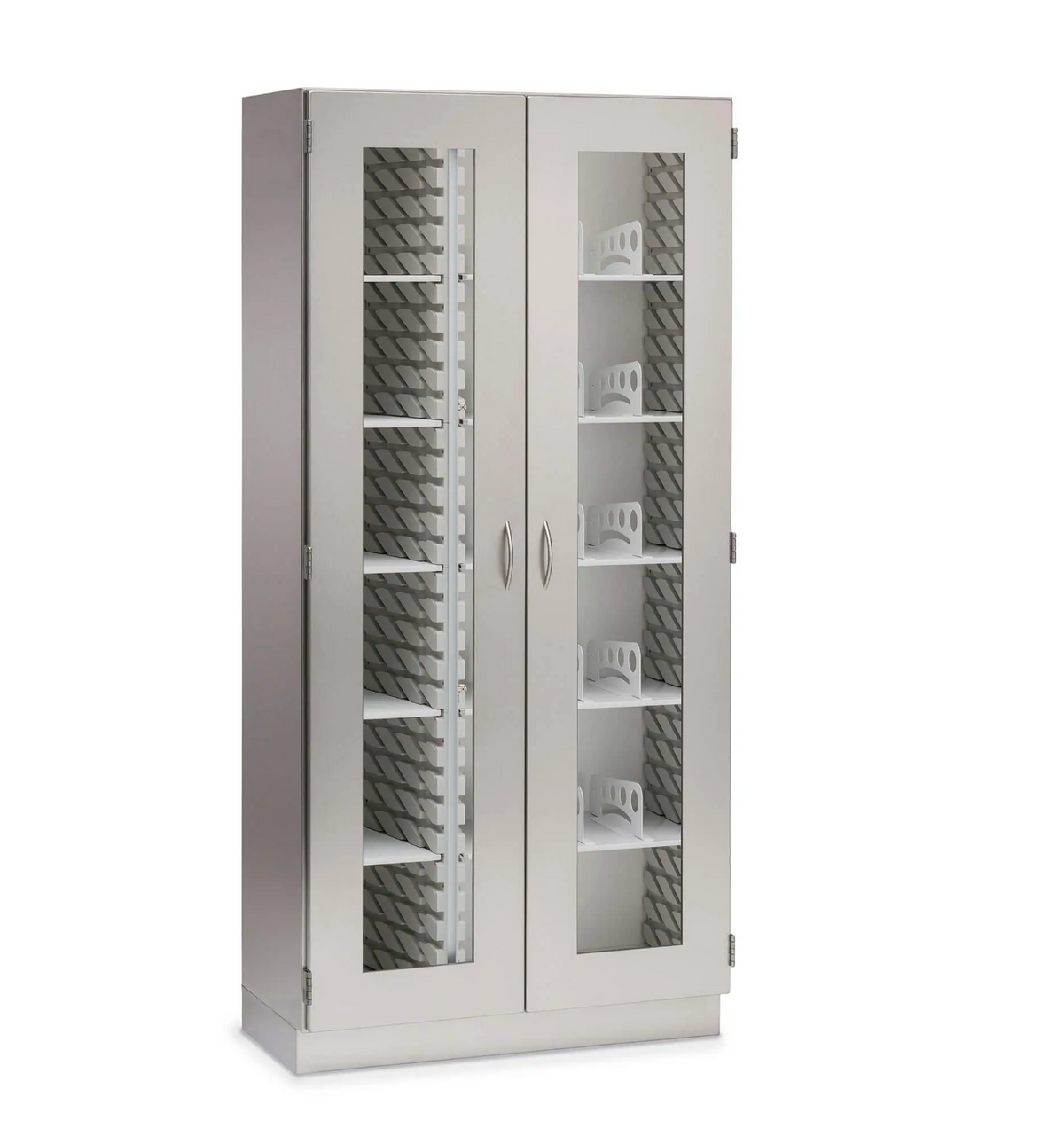

This 40”-wide, 19.25”-deep, 84”-high cabinet includes a wide and narrow compartment that accept a variety of components. The FlexCell interior provides a durable and cleanable reconfigurable system of trays, baskets, and shelves for the wide column and a narrow tray and shelf in the narrow compartment. Door choices include solid-front or tempered glass doors. Cabinet has a 4”-high toe kick.

Details

Note: Overall cabinet height may vary based on selected configuration. Final dimensions will be confirmed prior to order placement.

Dimensions (Nominal)

Hinged door: exterior (interior)

• 40″w x 19.25″d x 84″h (22.5″w compartment and 10.75″w compartment x 16.75″d x 78.5″h)

Cabinet with 6”h toe kick is 86”h; cabinet with no toe kick is 80”h

Interior Configuration

Cabinet with hinged door:

• 50 FlexCells per compartment, 100 total

Materials and Finishes

Cabinet with Compression Board

• Cabinet shell: Thermally fused melamine over 0.75”-thick compression board
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Thermally fused melamine over 0.75”-thick compression board
• Roll-top door slats and recessed channel: Polypropylene
• Hinges: Metal concealed European-style
• Edge banding: White ABS
• FlexCell panel: Injection-molded ABS
• Door pulls: Dull chrome-plated steel

Cabinet with AireCore

• Cabinet shell: Aluminum composite with Glacier White finish
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Aluminum composite with Glacier White finish
• Roll-top door slats and recessed channel: Polypropylene
• Hinges: Metal concealed European-style
• Edge banding: White ABS
• FlexCell panel: Injection-molded ABS
• Door pulls: Dull chrome-plated steel

Cabinet with AireCore and Brushed Aluminum

• Cabinet shell: Aluminum composite with Brushed Aluminum
• Glass doors: Clear anodized aluminum and tempered glass
• Solid-front doors: Aluminum composite with Brushed Aluminum
• Glass trim: Clear anodized aluminum
• Roll-top door slats and recessed channel: Polypropylene
• Hinges: Metal concealed European-style
• Edge banding: Brushed Aluminum Acrylic
• FlexCell panel: Injection-molded ABS
• Door pulls: Dull chrome-plated steel

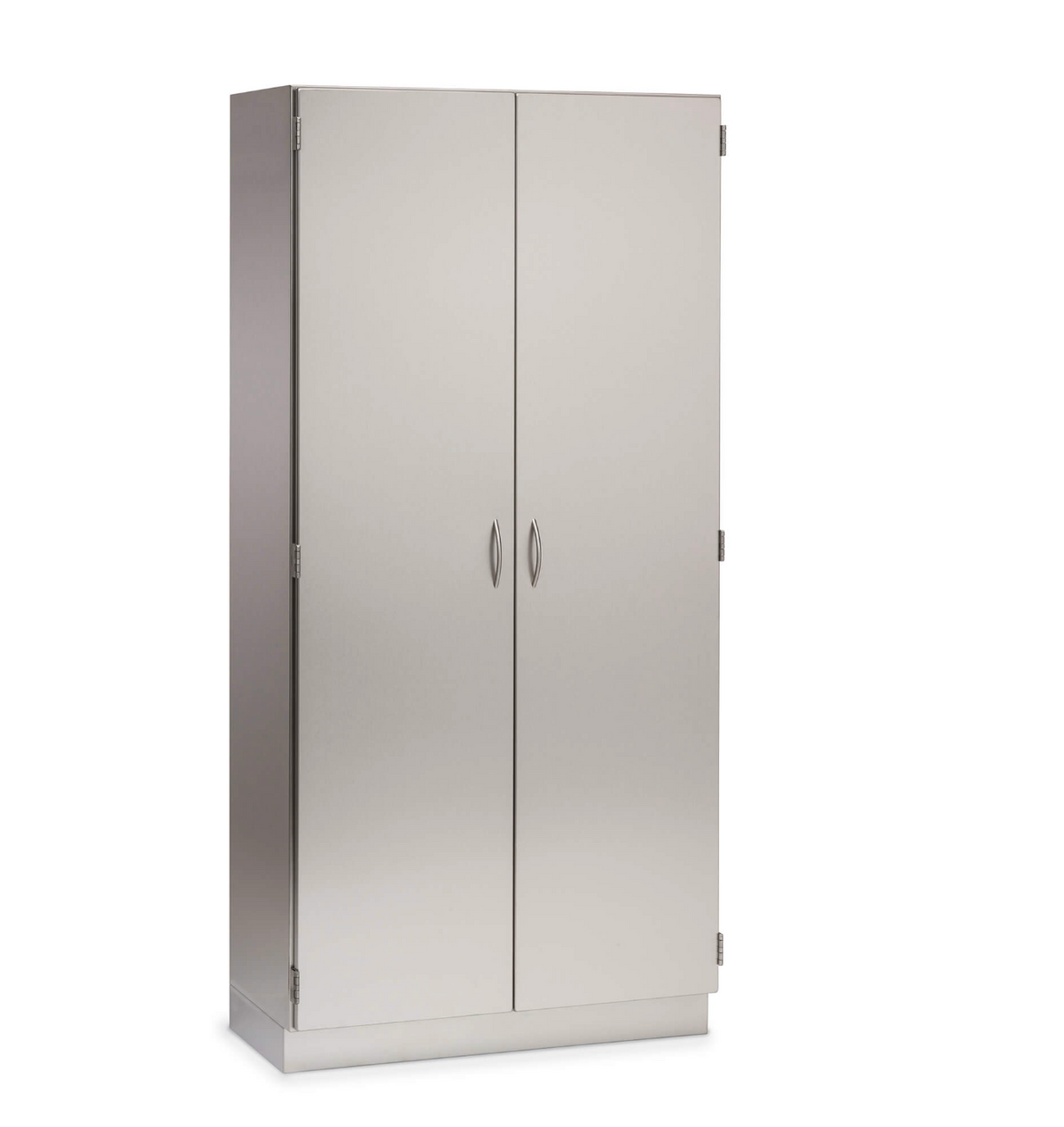

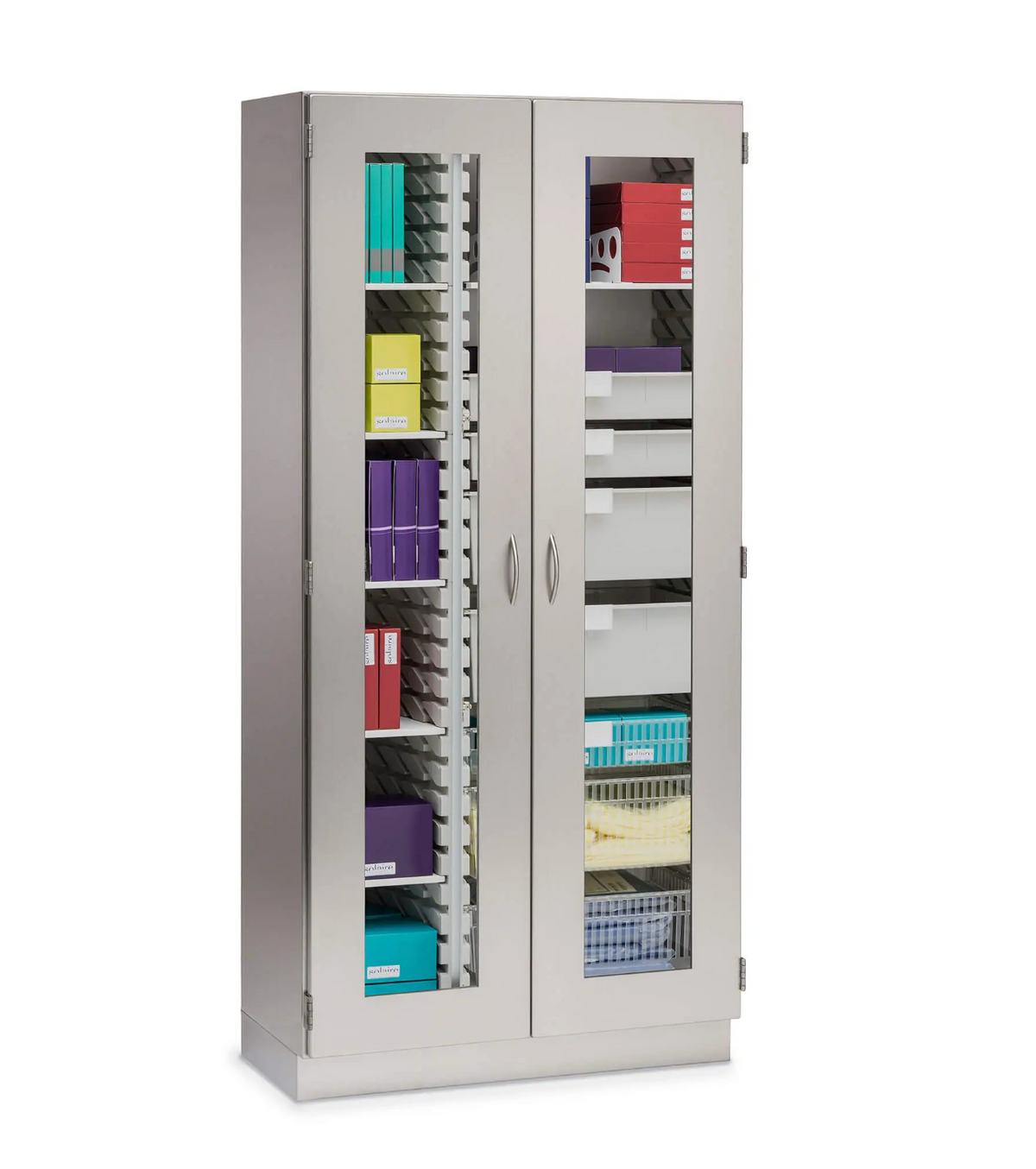

Cabinet with Stainless Steel

• Cabinet shell: 18-gauge 304 stainless steel with 18% chrome and 8% nickel analysis; exposed surfaces furnished with #4 mill finish
• Door: 0.125″ poly-sealed tempered glass or solid hinged doors with 18-gauge 304 stainless steel construction
• Hinges: Stainless steel
• Door Pulls: 5” stainless steel bow pull

Options

Material options include compression board with melamine, stainless steel, or nonporous AireCore with Glacier White or Brushed Aluminum finish

Compression board and AireCore cabinets with hinged doors can be specified with laminate surface

Wide compartment accepts trays, baskets, and shelves; narrow compartment accepts narrow trays and narrow basic shelves

Order optional products separately:

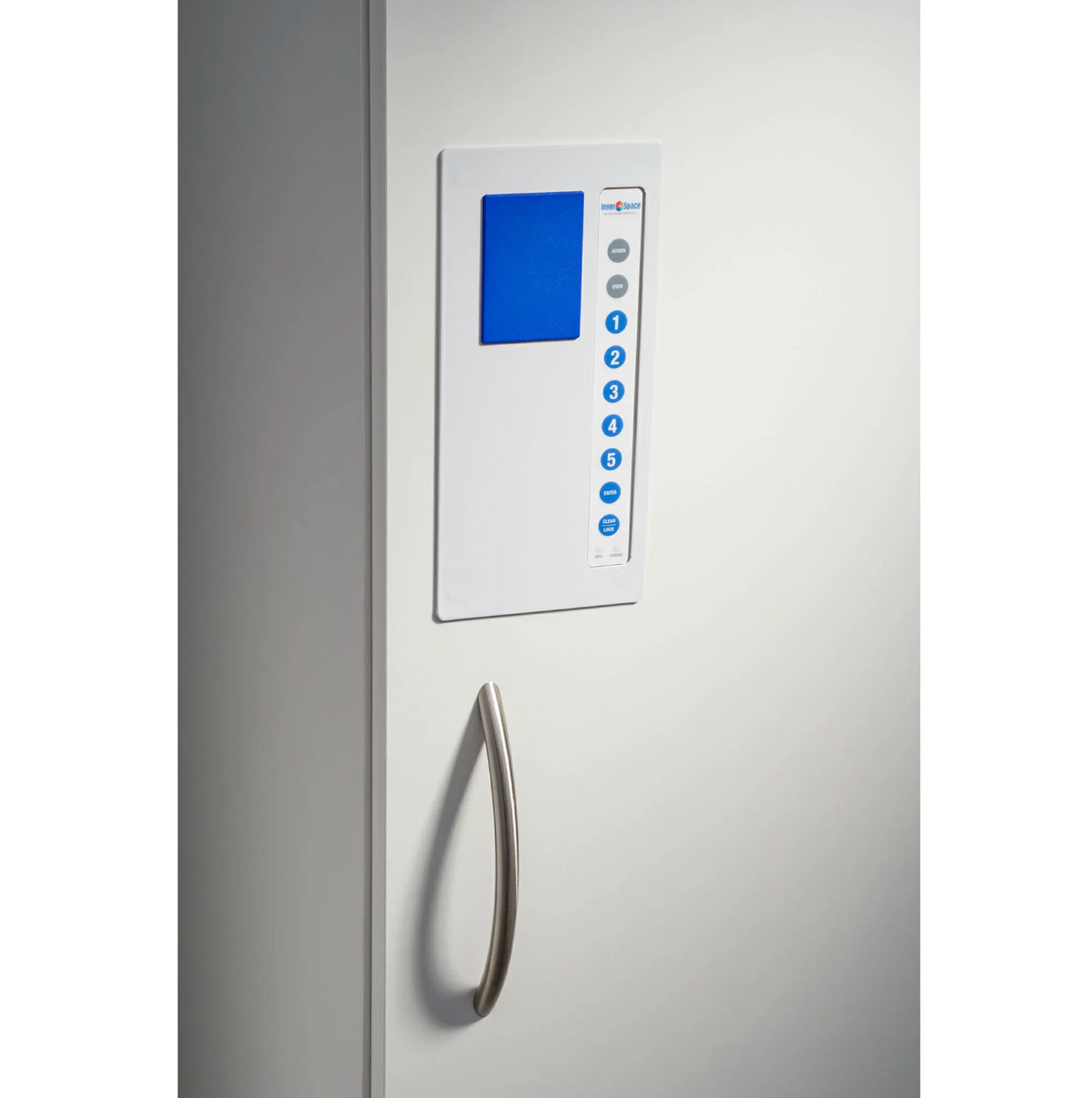

• Optional keyed, InterConnect lock, or InterConnect Plus lock available
• Sloped top
• 6”h toe kick

Model / Configuration Information:

Hinged Door:

• Compression board: SEC1940TGLC, SEC1940TGRC, SEC1940TSLC, SEC1940TSRC
• AireCore: SEA1940TGLC, SEA1940TGRC, SEA1940TSLC, SEA1940TSRC
• AireCore with Brushed Aluminum laminate: SEB1940TGLC, SEB1940TGRC, SEB1940TSLC, SEB1940TSRC
• Stainless steel: SES1940TGLC, SES1940TGRC, SES1940TSLC, SES1940TSRC
