Cabinet with Accessory Pack - Evolve FlexCell Series

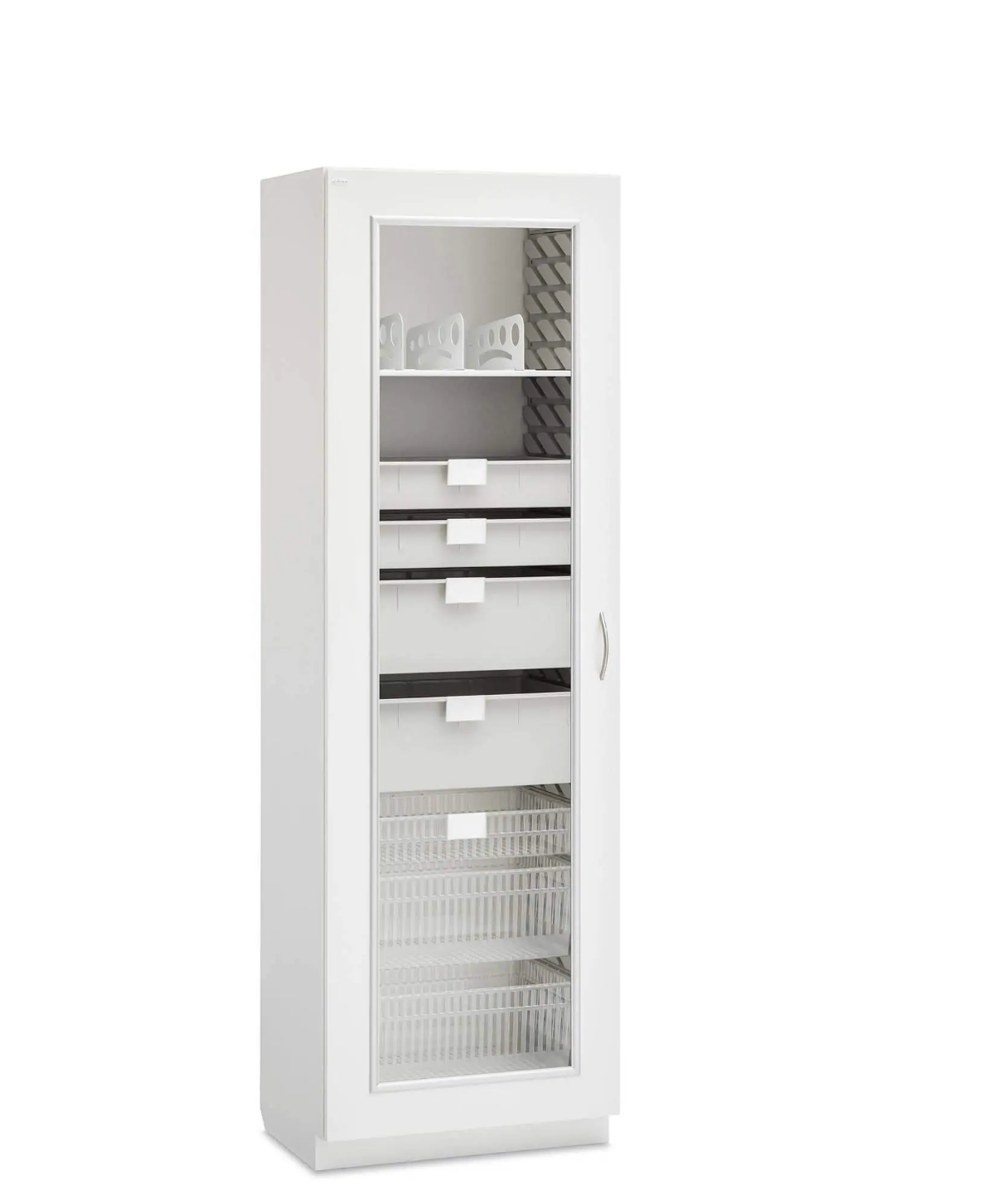

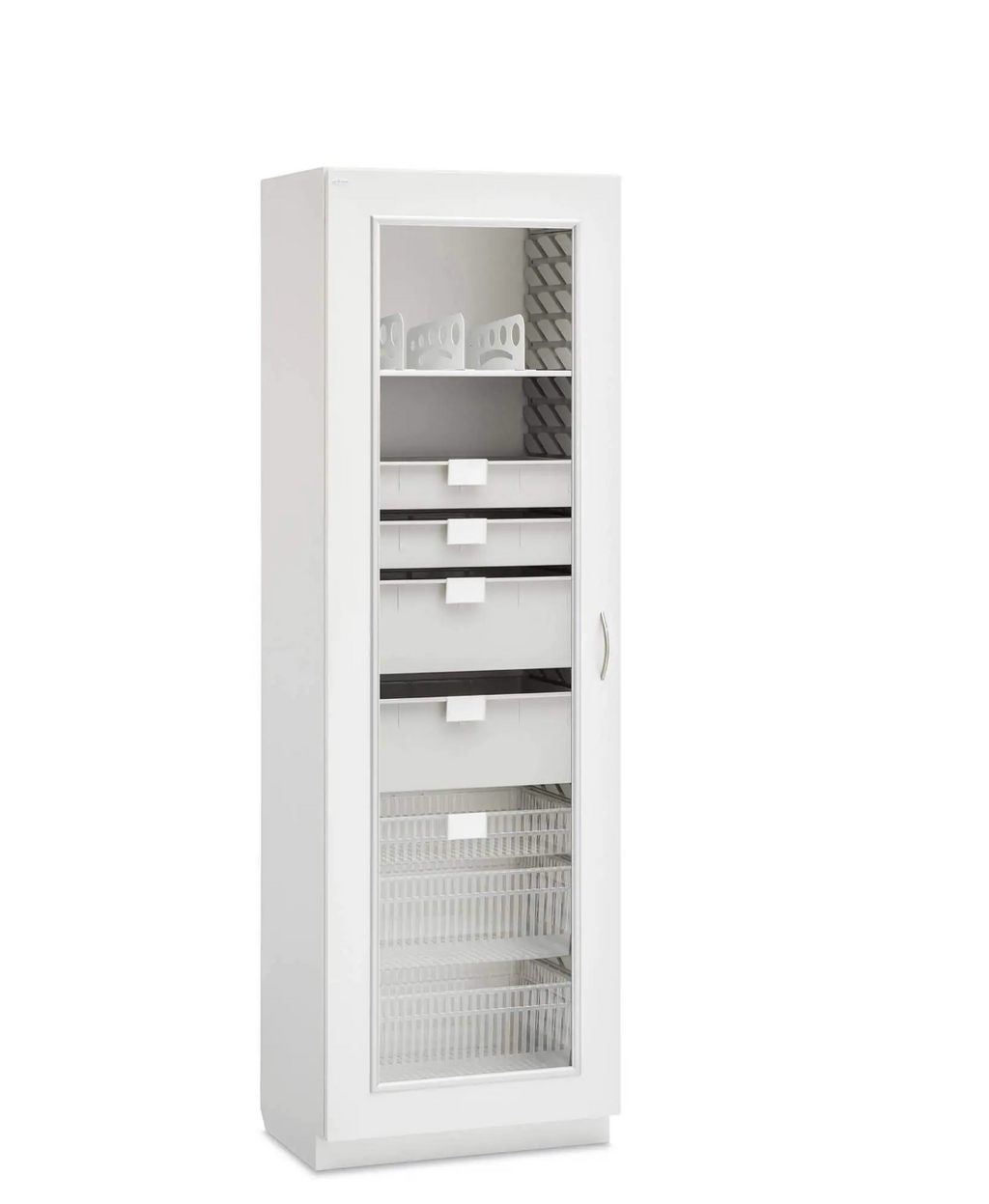

This 84”-high cabinet comes in 3 widths and 2 depths and is preconfigured with a FlexCell interior. FlexCell is a durable, cleanable, and reconfigurable storage system. Door choices include a counterbalanced roll-top door or tempered glass doors. Cabinet has 4”-high toe kick. See Details for interior configurations.

Details

Note: Overall cabinet height may vary based on selected configuration. Final dimensions will be confirmed prior to order placement.

Dimensions (Nominal)

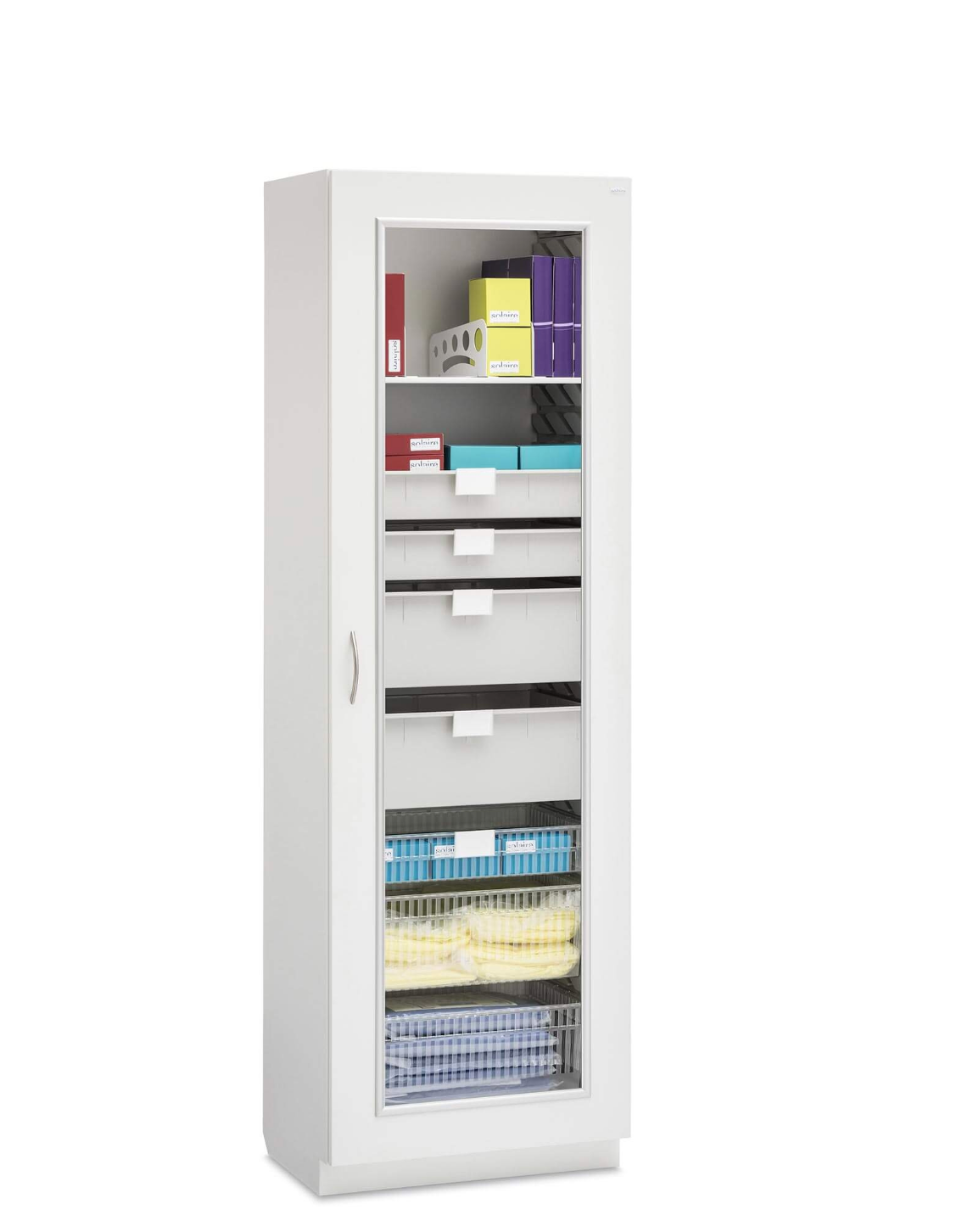

Hinged door: exterior (interior)

• 18.75″w x 27.25″d x 84″h (14.5″w x 24.75″d x 78.5″h)
• 26.75″w x 19.25″d x 84″h (22.5″w x 16.75″d x 78.5″h)

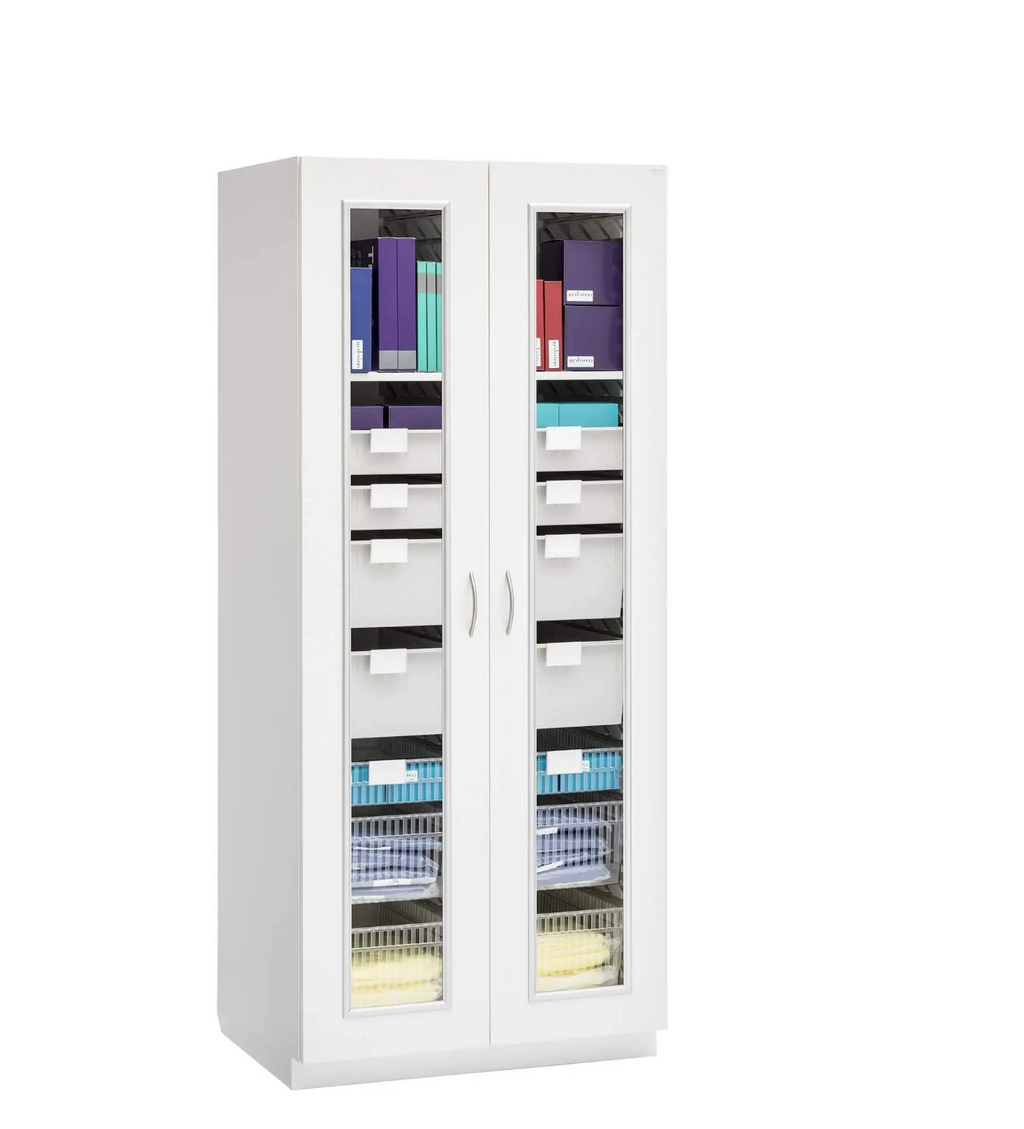

• 36″w x 27.25″d x 84″h (31.75″w x 24.75″d x 78.5″h)

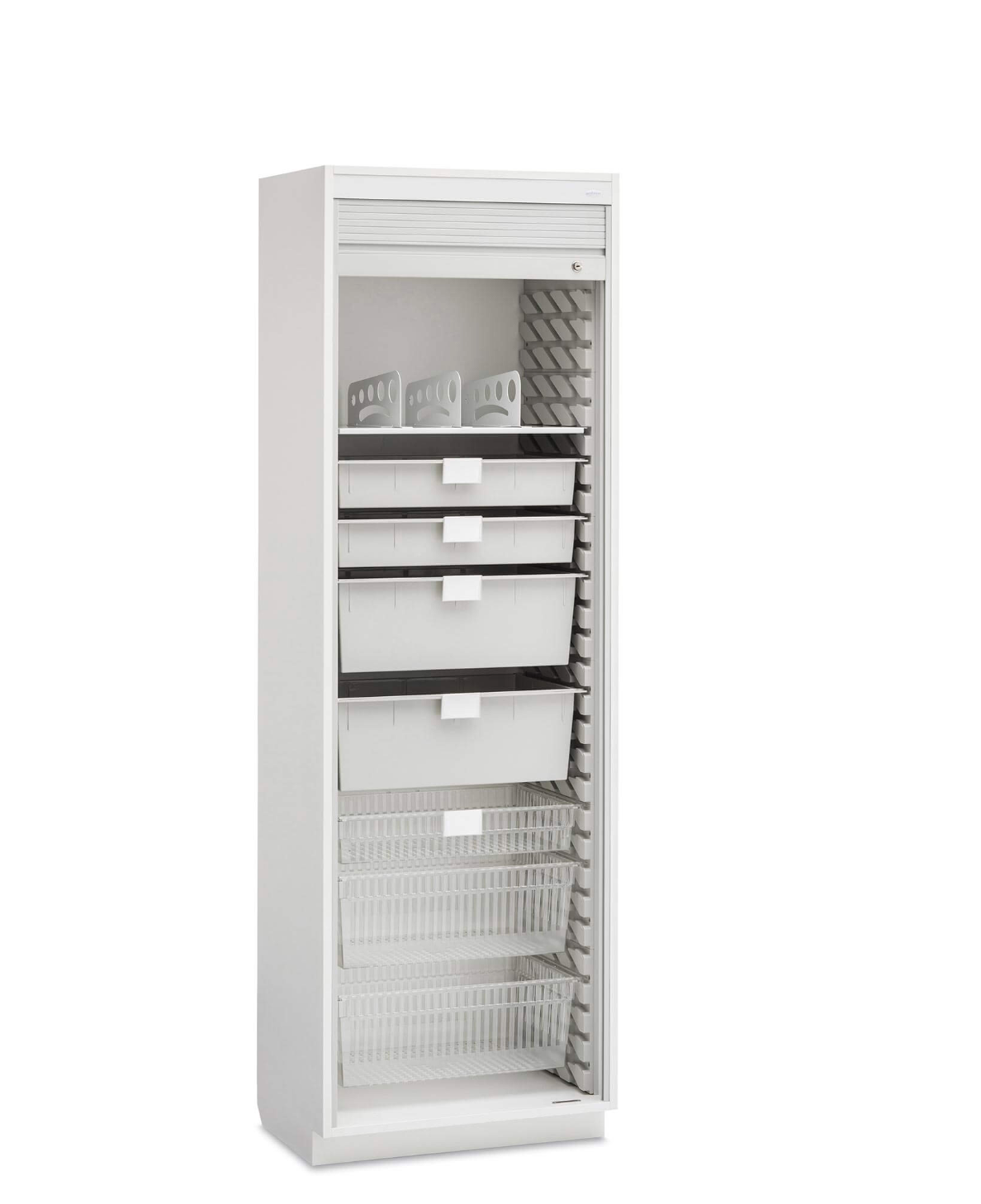

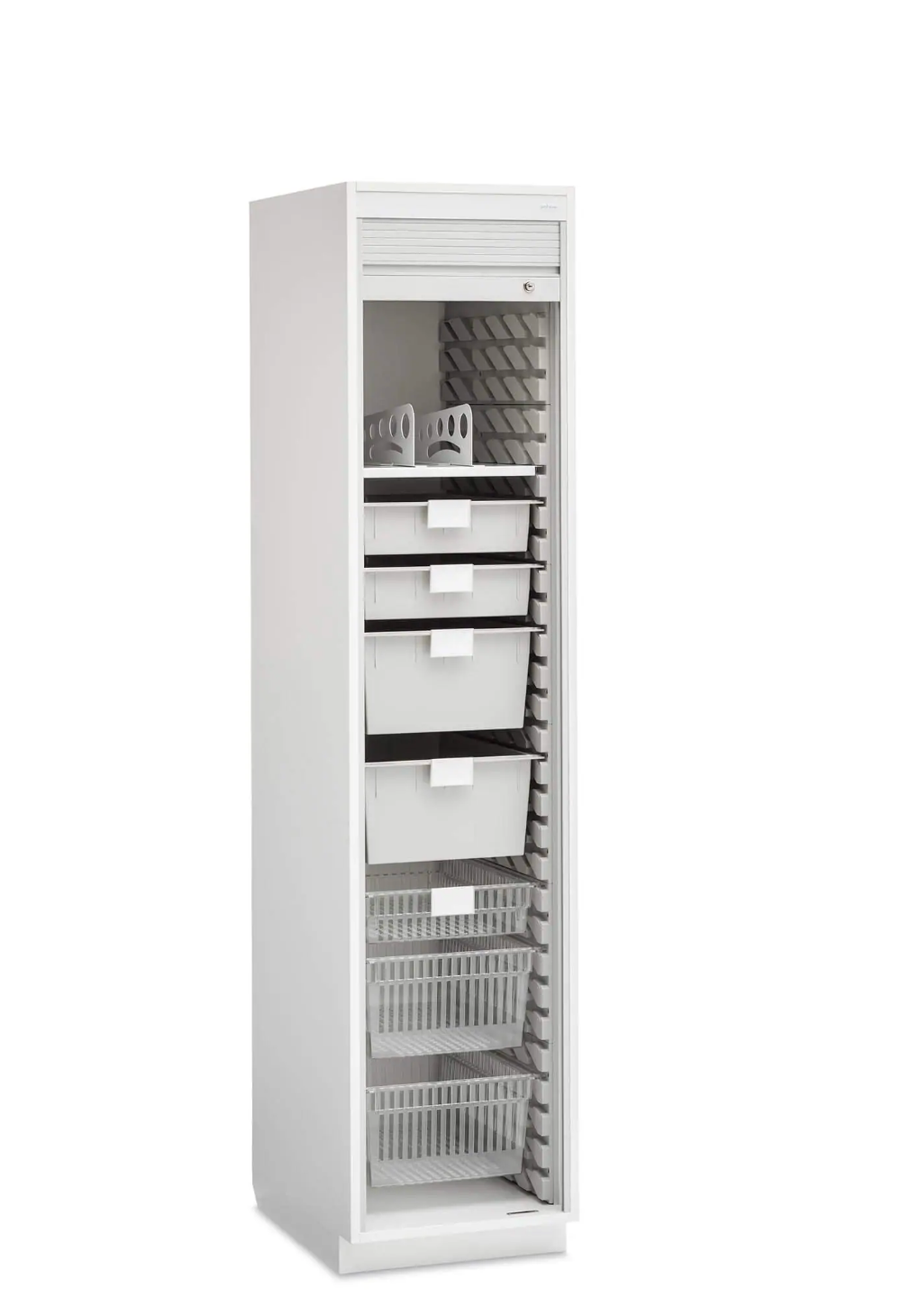

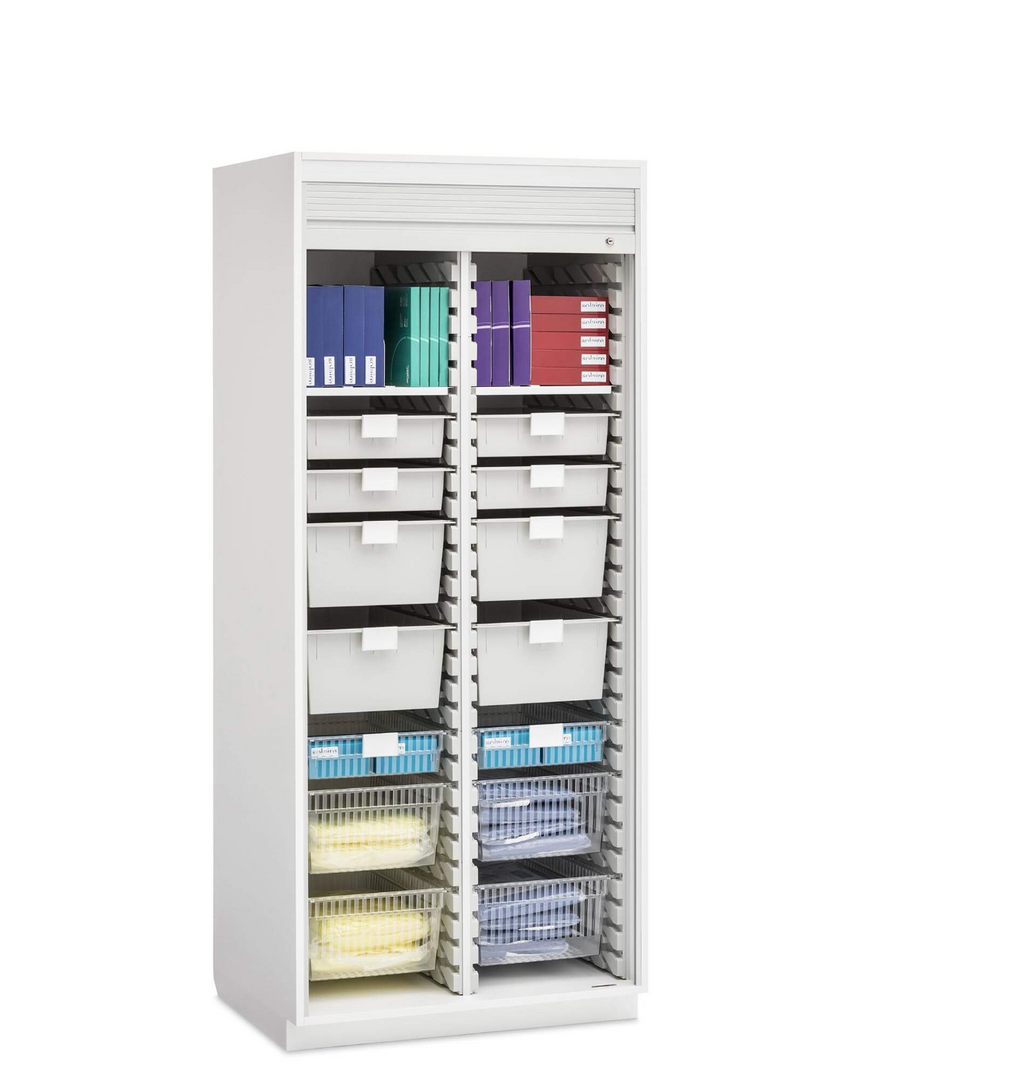

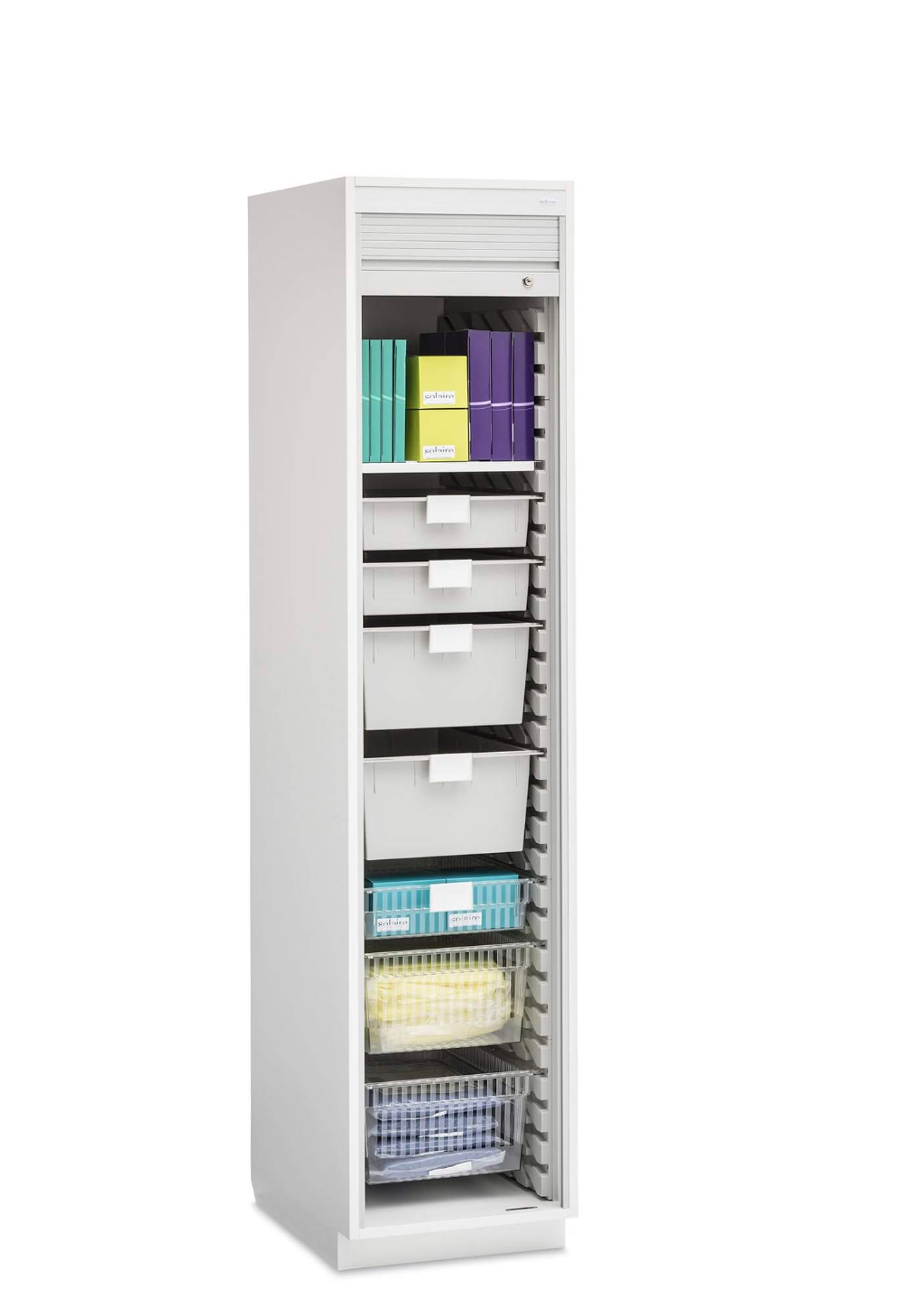

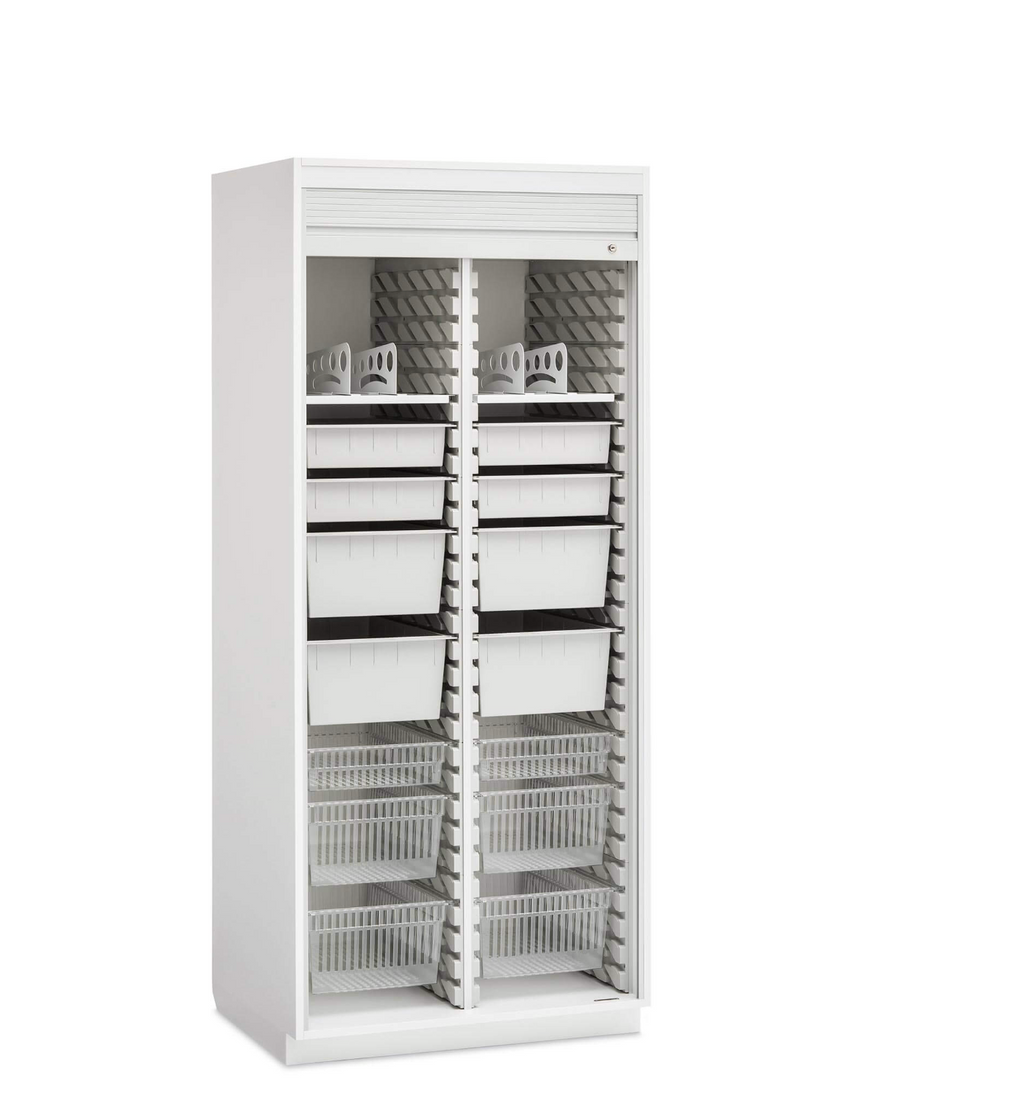

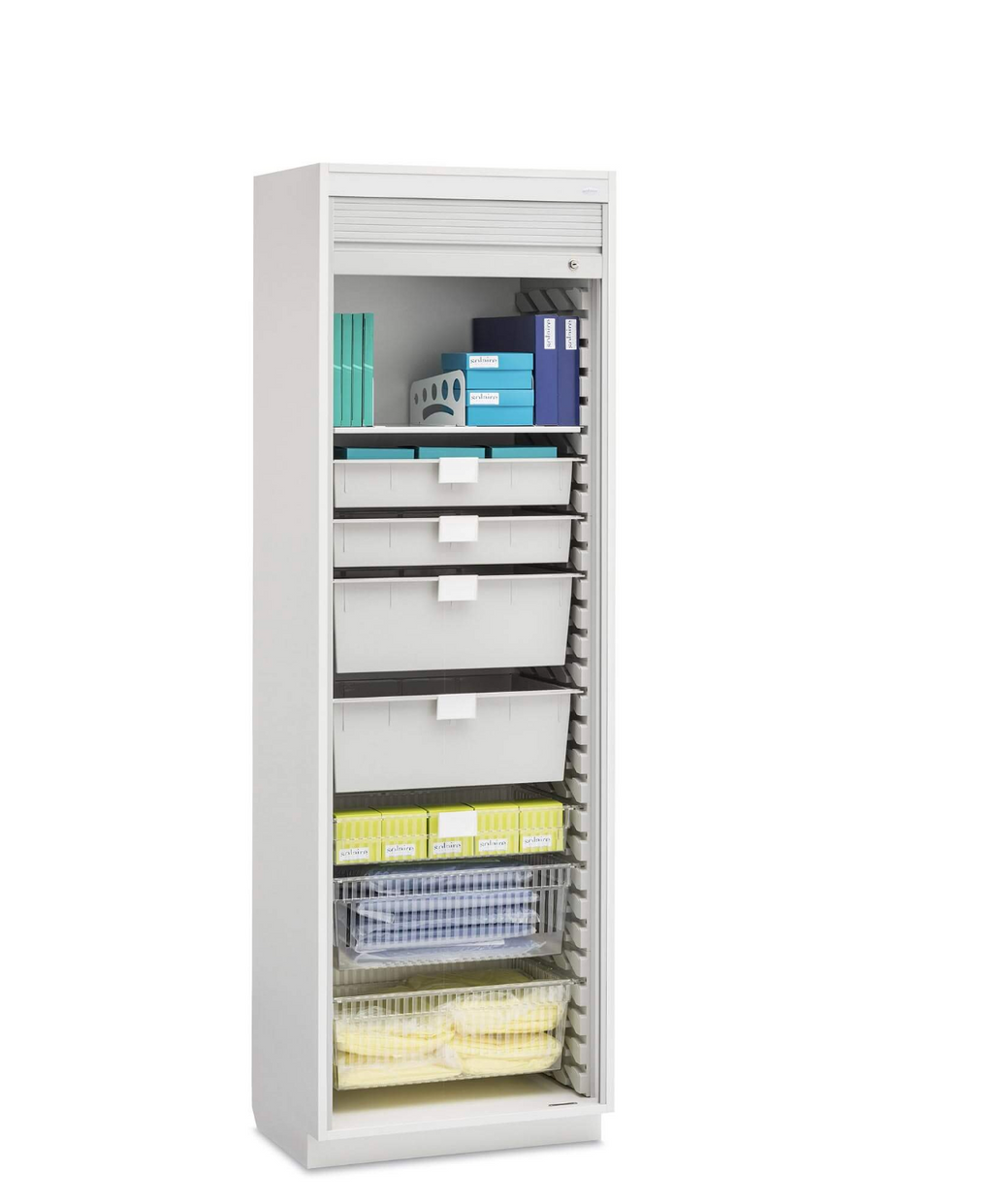

Roll-top door: exterior (interior)

• 18.75″w x 27.25″d x 84″h (14.5″w x 24.75″d x 69″h)
• 26.75″w x 19.25″d x 84″h (22.5″w x 16.75″d x 69″h)
• 36″w x 27.25″d x 84″h (31.75″w x 24.75″d x 69″h)

Cabinet with 6”h toe kick is 86”h; cabinet with no toe kick is 80”h

Interior Configuration

• 18.75”w cabinet includes 1 single-compartment shelf, 2 shelf dividers, 2 6” trays with dividers, 2 9” trays with dividers, 1 6” basket with dividers, 2 9” baskets with dividers, and label holders
• 26.75”w cabinet includes 1 single-compartment shelf, 3 shelf dividers, 2 6” trays with dividers, 2 9” trays with dividers, 1 6” basket with dividers, 2 9” baskets with dividers, and label holders
• 36”w cabinet includes 2 single compartment shelves, 4 shelf dividers, 4 6” trays with dividers, 4 9” trays with dividers, 2 6” baskets with dividers, 4 9” basket, with dividers and label holders

Cabinet with hinged door:

• 50 FlexCells per compartment, 100 total

Cabinet with roll-top door:

• 45 FlexCells per compartment, 90 total

Materials and Finishes

Cabinet with Compression Board

• Cabinet shell: Thermally fused melamine over 0.75”-thick compression board
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Roll-top door slats and recessed channel: Polypropylene
• Hinges: Metal concealed European-style
• Edge banding: White ABS
• FlexCell panel: Injection-molded ABS
• Door pulls: Dull chrome-plated steel

Cabinet with AireCore

• Cabinet shell: Aluminum composite with Glacier White finish
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Roll-top door slats and recessed channel: Polypropylene
• Hinges: Metal concealed European-style
• Edge banding: White ABS
• FlexCell panel: Injection-molded ABS
• Door pulls: Dull chrome-plated steel

Cabinet with AireCore and Brushed Aluminum

• Cabinet shell: Aluminum composite with Brushed Aluminum
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Roll-top door slats and recessed channel: Polypropylene
• Hinges: Metal concealed European-style
• Edge banding: Brushed Aluminum Acrylic
• FlexCell panel: Injection-molded ABS
• Door pulls: Dull chrome-plated steel

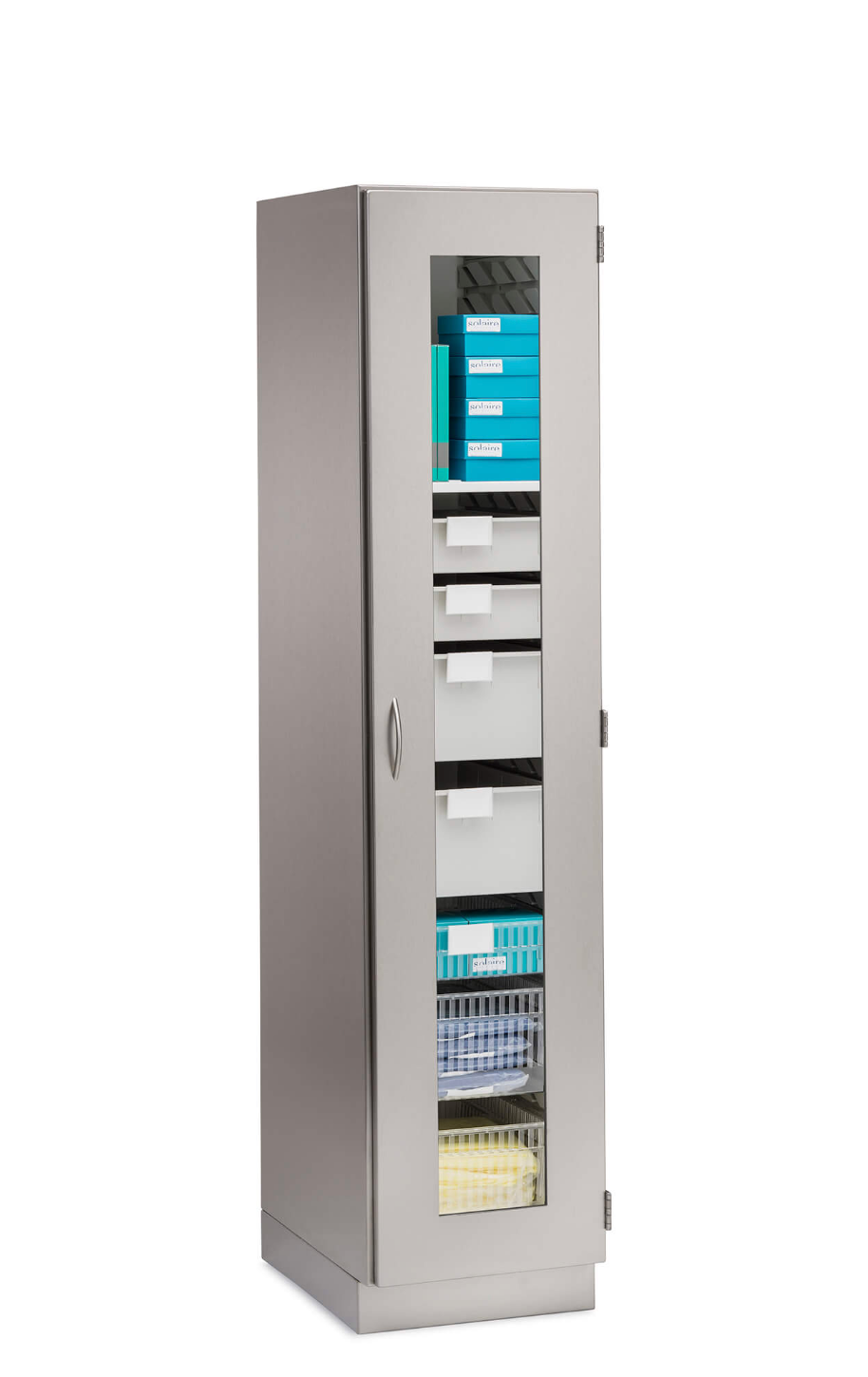

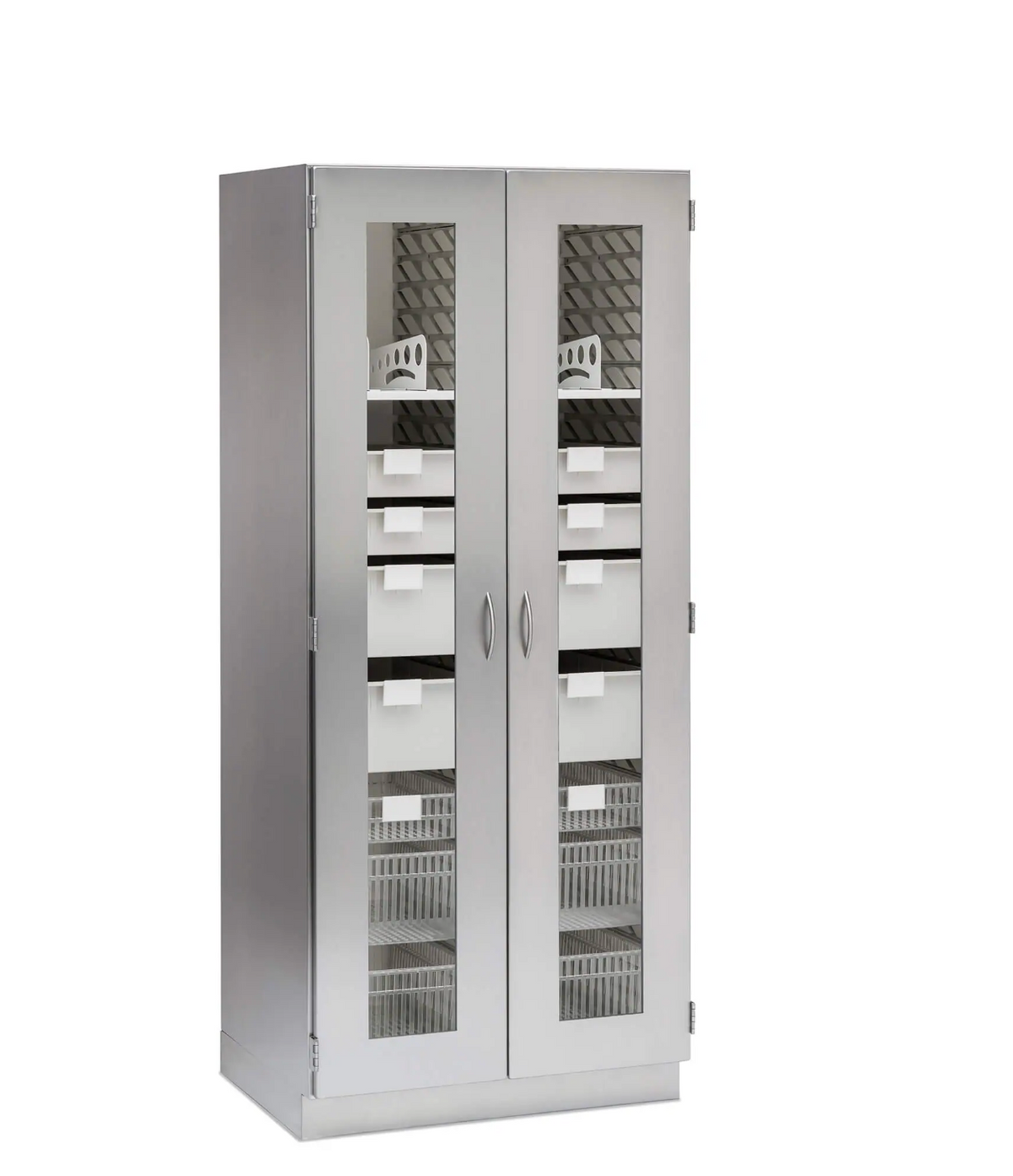

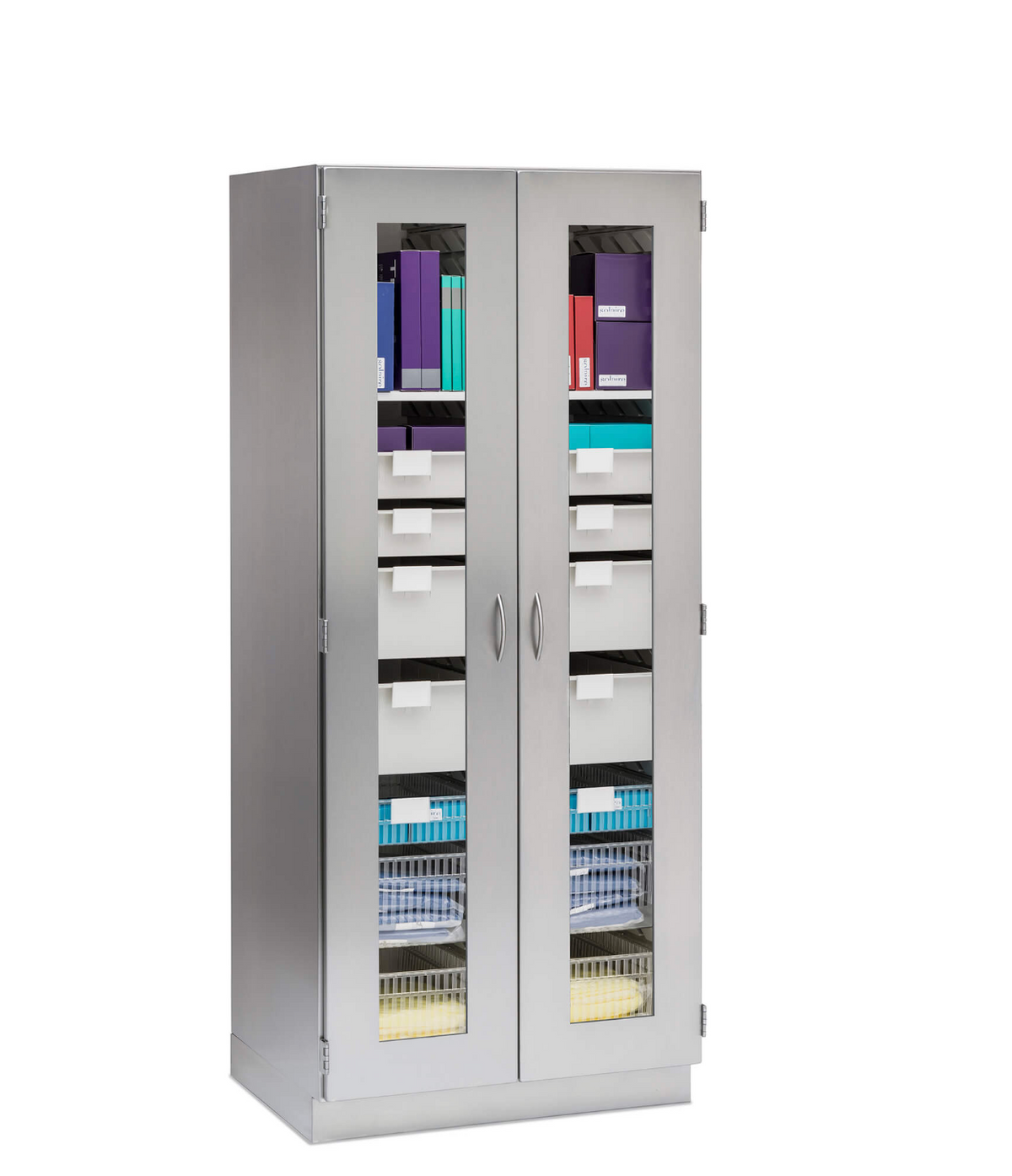

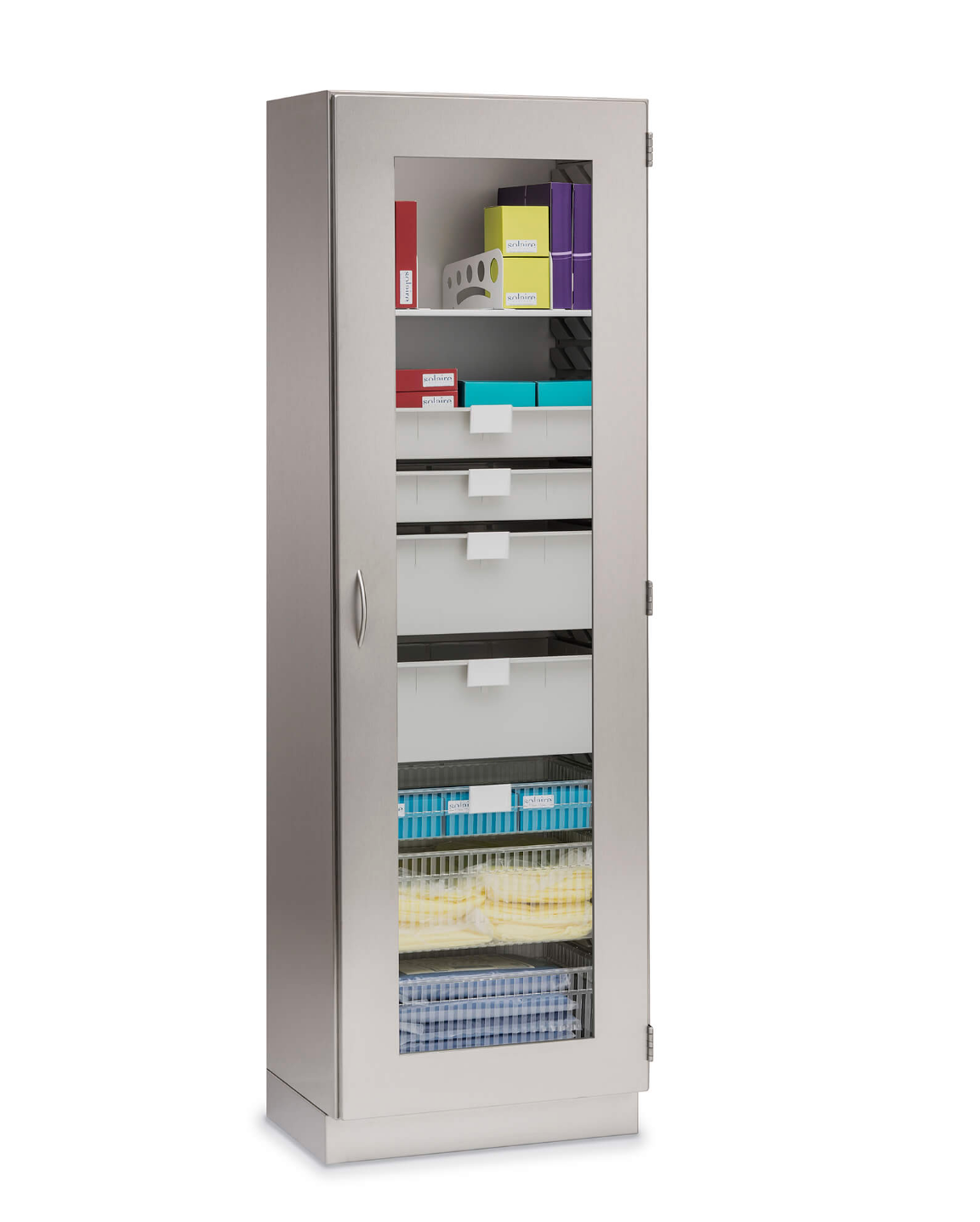

Cabinet with Stainless Steel

• Cabinet shell: 18-gauge 304 stainless steel with 18% chrome and 8% nickel analysis; exposed surfaces furnished with #4 mill finish
• Door: 0.125″ poly-sealed tempered glass or solid hinged doors with 18-gauge 304 stainless steel construction
• Hinges: Stainless steel
• Door Pulls: 5” stainless steel bow pull

Options

• Material options include compression board with melamine, stainless steel, or nonporous AireCore with Glacier White or Brushed Aluminum finish
• Compression board and AireCore cabinets with hinged doors can be specified with laminate surface
• Stainless steel not available on cabinets with roll-top doors

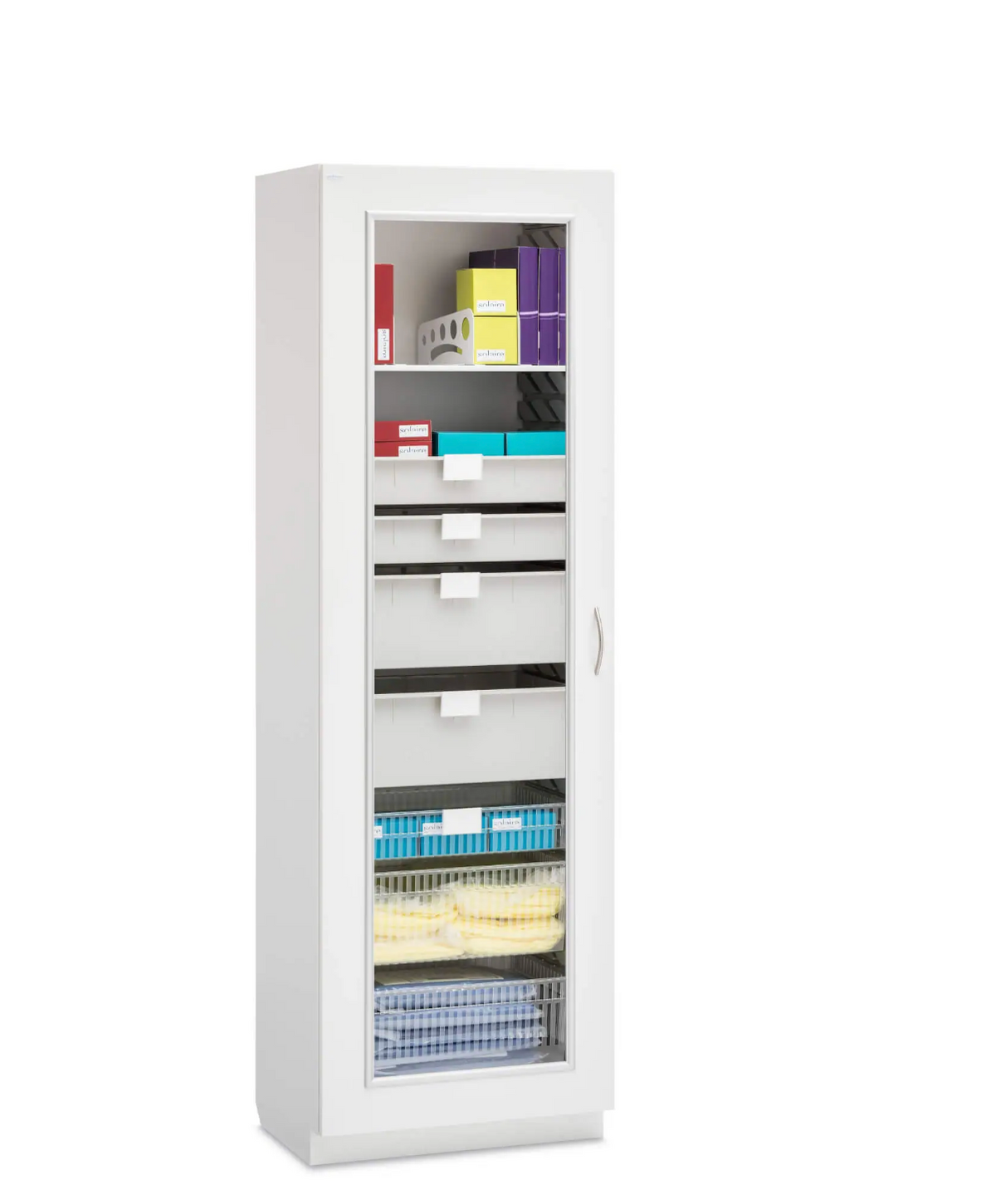

• Door can be hinged on right or left side of 18.75”w and 26.75”w cabinets

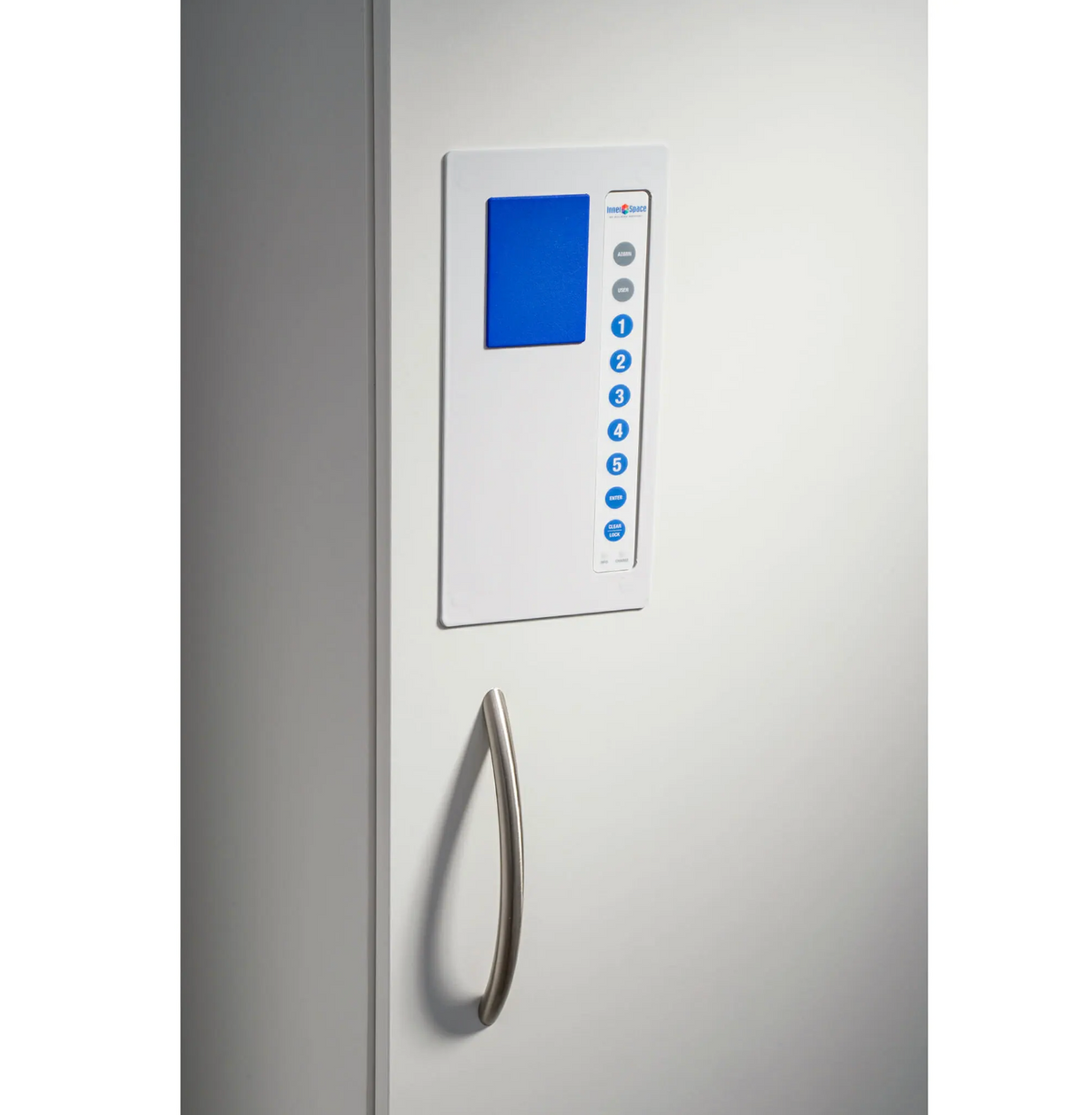

• Optional keyed, InterConnect lock, or InterConnect Plus lock available on cabinets with hinged doors; optional keyed lock available on cabinets with roll-top doors
• Optional sloped top available
• Optional 6”h toe kick or no toe kick available

Product Numbers

Hinged Door:

18.75″w x 27.25″d x 84″h

• Compression board: SEC2719TGRAP, SEC2719TGLAP
• AireCore: SEA2719TGRAP, SEA2719TGLAP
• AireCore with Brushed Aluminum: SEB2719TGRAP, SEB2719TGLAP
• Stainless steel: SES2719TGRAP, SES2719TGLAP

26.75″w x 19.25″d x 84″h

• Compression board: SEC1927TGRAP, SEC1927TGLAP
• AireCore: SEA1927TGRAP, SEA1927TGLAP
• AireCore with Brushed Aluminum: SEB1927TGRAP, SEB1927TGLAP
• Stainless steel: SES1927TGRAP, SES1927TGLAP

36″w x 27.25″d x 84″h

• Compression board: SEC2736TGAP
• AireCore: SEA2736TGAP
• AireCore with Brushed Aluminum: SEB2736TGAP
• Stainless steel: SES2736TGAP

Roll-top Door:

18.75″w x 27.25″d x 84″h

• Compression board: SEC2719TRTAP
• AireCore: SEA2719TRTAP
• AireCore with Brushed Aluminum: SEB2719TRTAP

26.75″w x 19.25″d x 84″h

• Compression board: SEC1927TRTAP
• AireCore: SEA1927TRTAP
• AireCore with Brushed Aluminum: SEB1927TRTAP

36″w x 27.25″d x 84″h

• Compression board: SEC2736TRTAP
• AireCore: SEA2736TRTAP
• AireCore with Brushed Aluminum: SEB2736TRTAP
