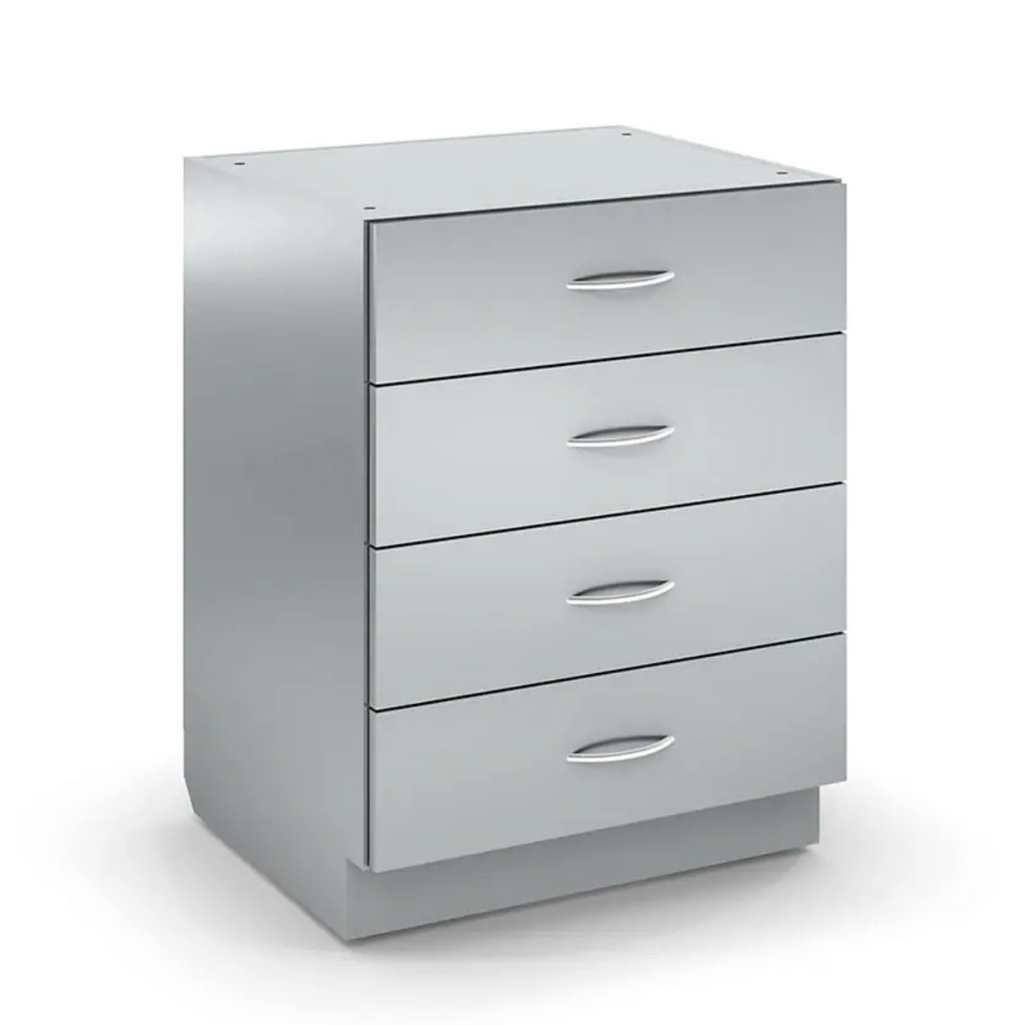

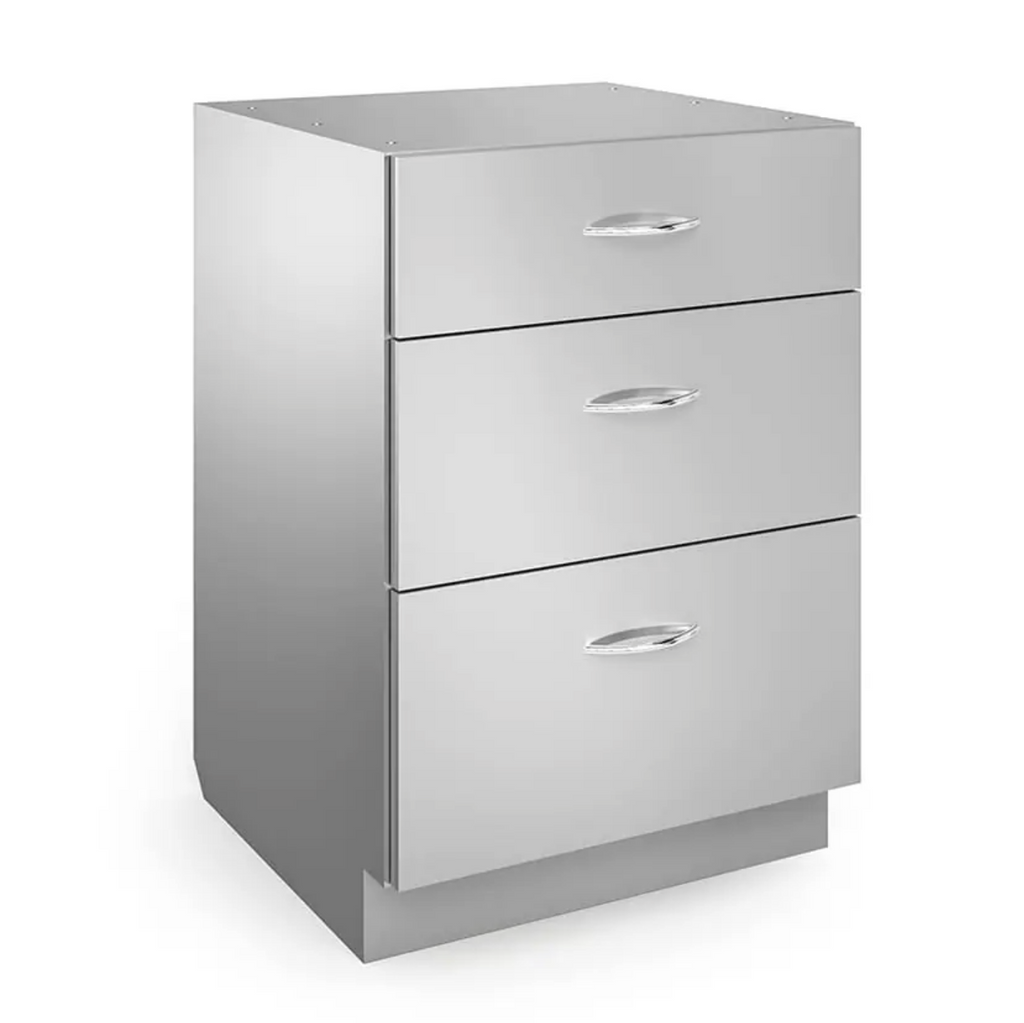

Base Cabinet with Drawers - Evolve Architectural Series

This 34.5”-high, 24”-deep base cabinet comes in 5 widths and with 3 or 4 drawers. A 4-high toe kick is standard.

Details

Note: Overall cabinet height may vary based on selected configuration. Final dimensions will be confirmed prior to order placement.

Exterior Dimensions (nominal)

Cabinets are 34.5”h and 24”d

• 15”w, 18”w, 21”w, 24”2, and 27”w

Materials and Finishes

Compression Board Cabinet

• Cabinet shell: Thermally fused melamine over 0.75”-thick compression board
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Thermally fused melamine over 0.75”-thick compression board
• Hinges: Metal, concealed European-style
• Edge banding: White ABS
• Door pulls: Dull chrome-plated steel

AireCore Cabinet

• Cabinet shell: Aluminum composite with Glacier White finish
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Aluminum composite with Glacier White finish
• Hinges: Metal, concealed European-style
• Edge banding: White ABS
• Door pulls: Dull chrome-plated steel

AireCore and Brushed Aluminum Cabinet

• Cabinet shell: Aluminum composite with Brushed Aluminum
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Aluminum composite with Brushed Aluminum
• Hinges: Metal, concealed European-style
• Edge banding: Brushed Aluminum Acrylic
• Door pulls: Dull chrome-plated steel

Stainless Steel Cabinet

• Cabinet shell: 18-gauge 304 stainless steel with 18% chrome and 8% nickel analysis; exposed surfaces furnished with #4 mill finish
• Door: 0.125” poly-sealed tempered glass or solid hinged doors with 18-gauge 304 stainless steel construction
• Hinges: Stainless steel
• Door Pulls: 5” stainless steel bow pull

Options

Material options include compression board with melamine or specified laminate, stainless steel, and AireCore with Glacier White or Brushed Aluminum finish

• Countertop can be ordered separately
• Keyed lock
• 6”-high toe kick or no toe kick
