Upper Cabinet with Adjustable Shelf - Evolve FlexCell Series

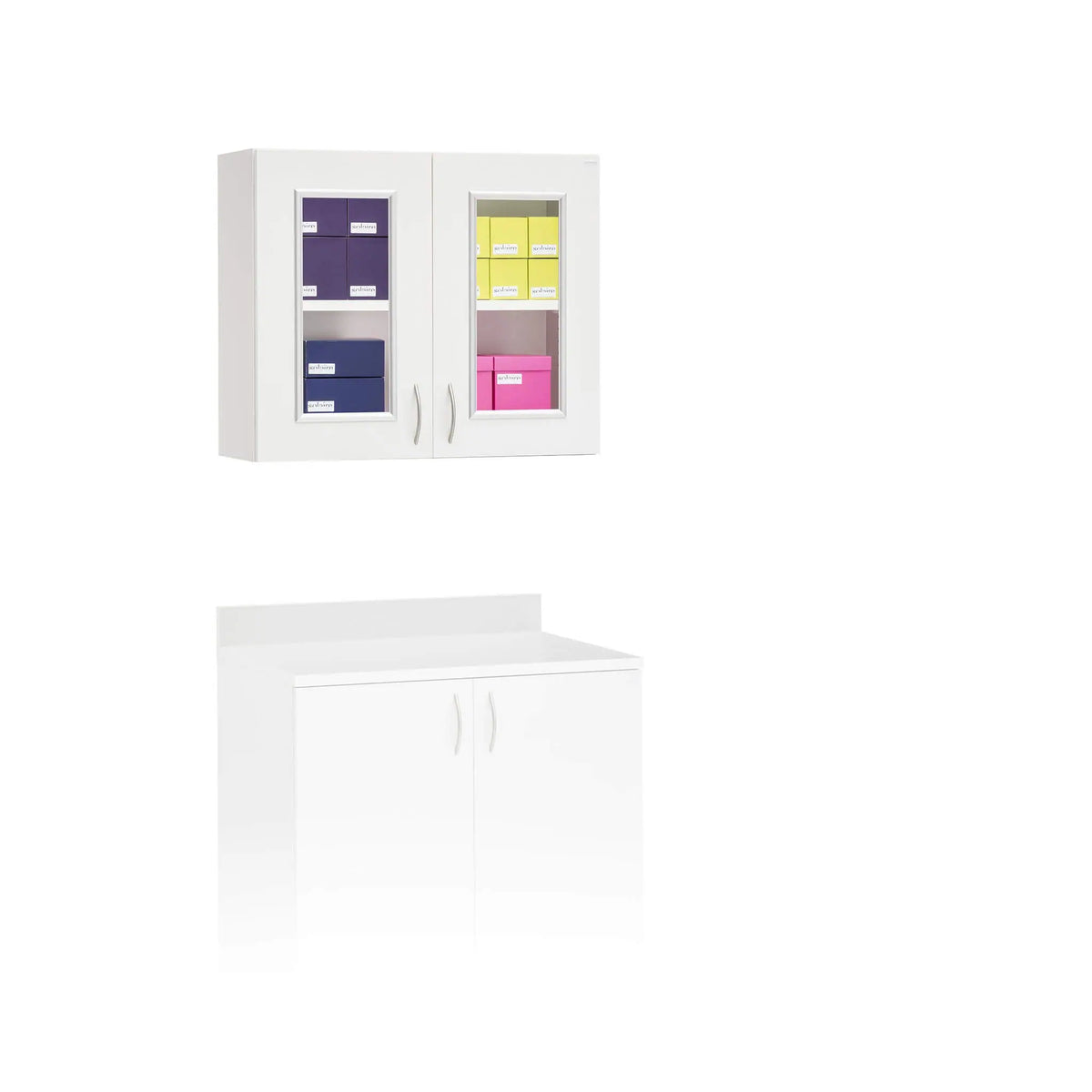

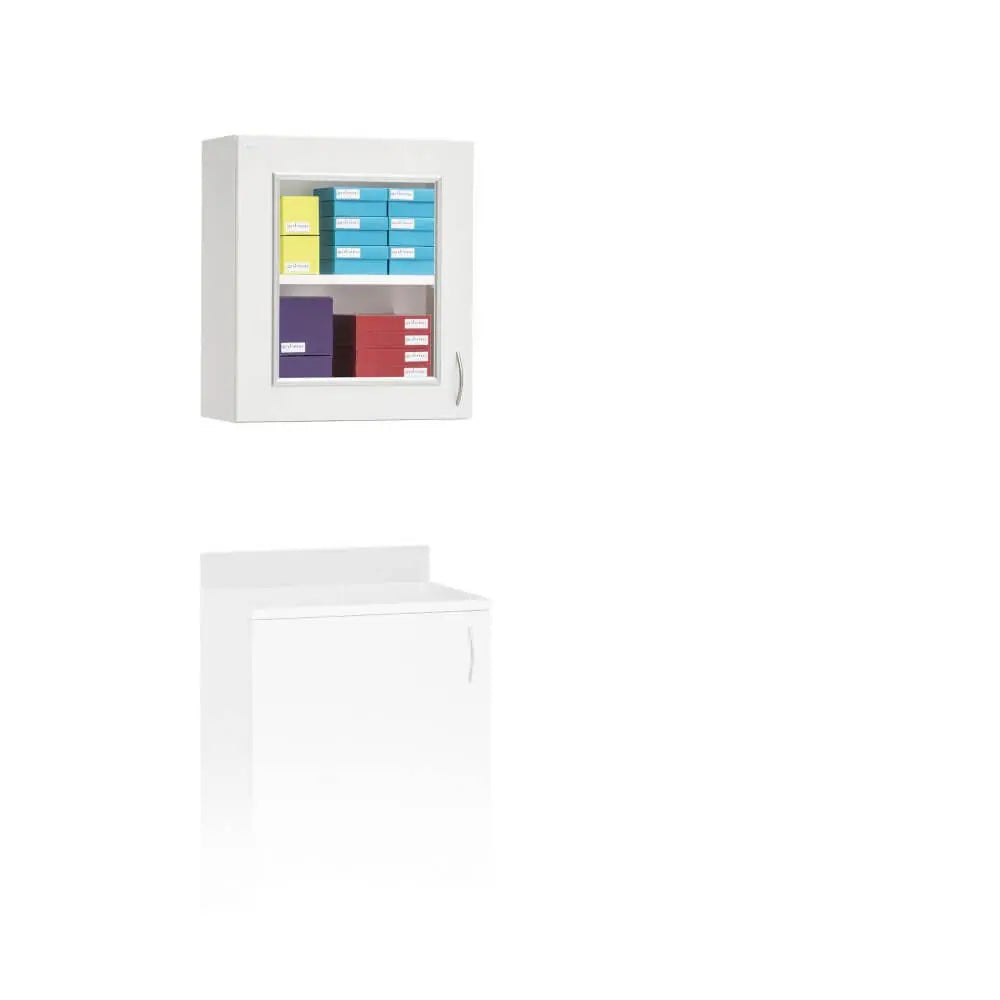

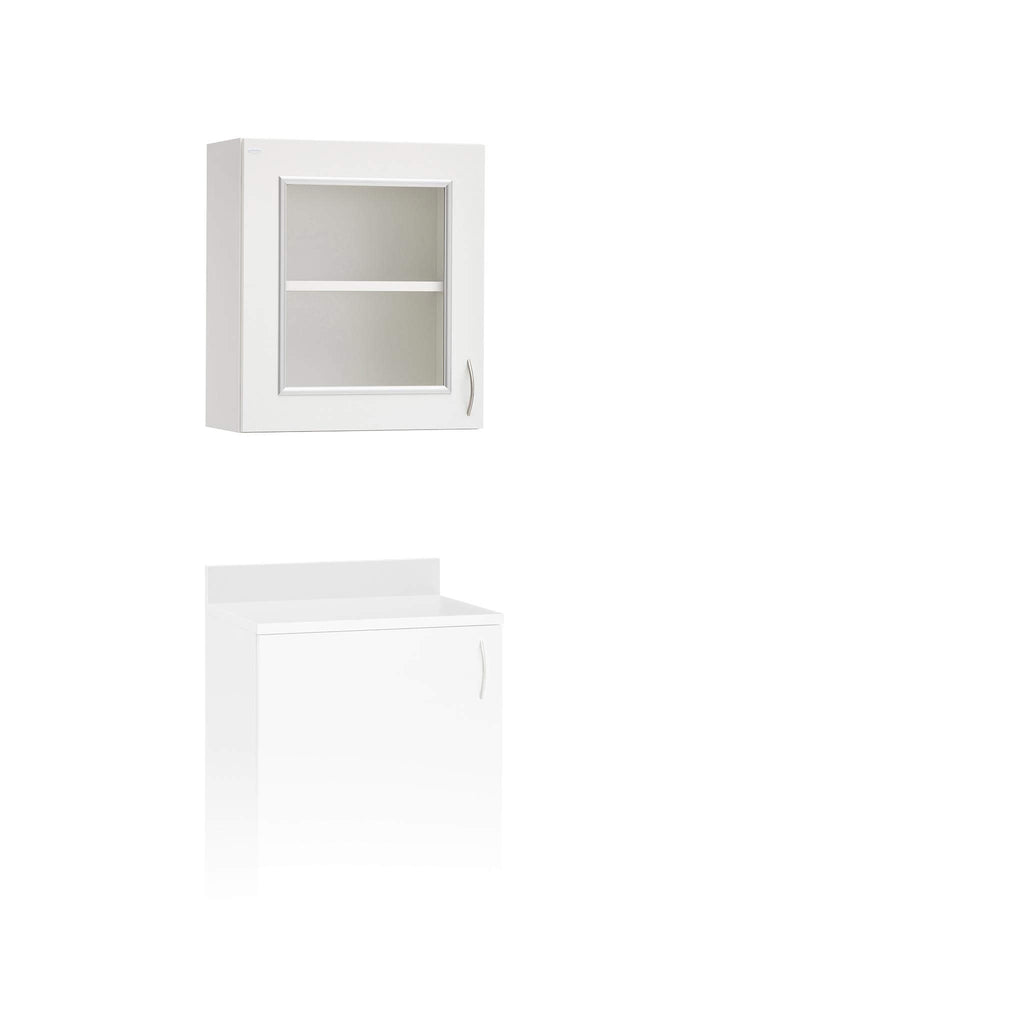

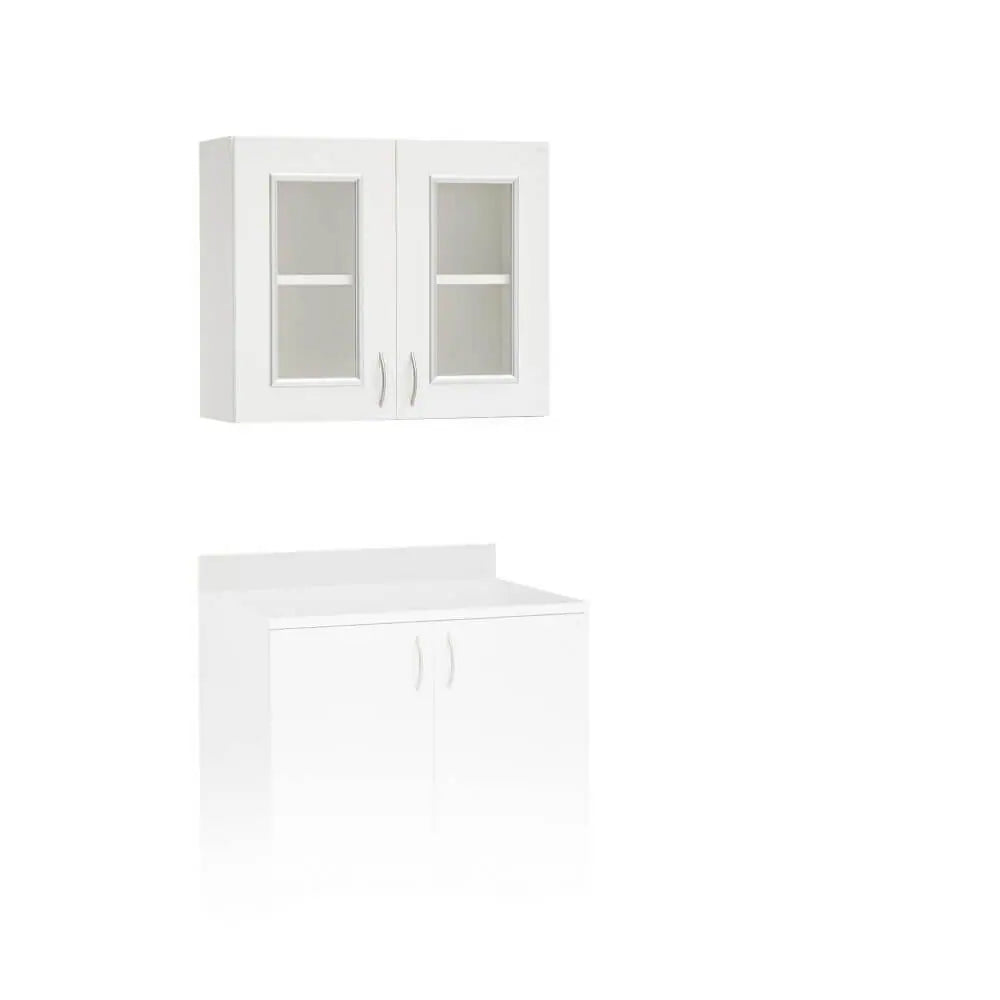

This 13”-deep, 30”-high upper cabinet comes in 3 widths and has 1 adjustable full-width shelf. Door options include tempered glass or solid-front doors.

Details

Dimensions Nominal

Exterior (interior)

• 18.75”w x 13”d x 30”h (17.25″w x 11.25″d x 28.5″h)
• 26.75″w x 13″d x 30″h (25″w x 11.25″w x 28.5″h)
• 36″w x 13″d x 30″h (34.5″w x 11.25″d x 28.5″h)

Interior Configuration

• Shelf adjusts in 1.25” increments

Materials and Finishes

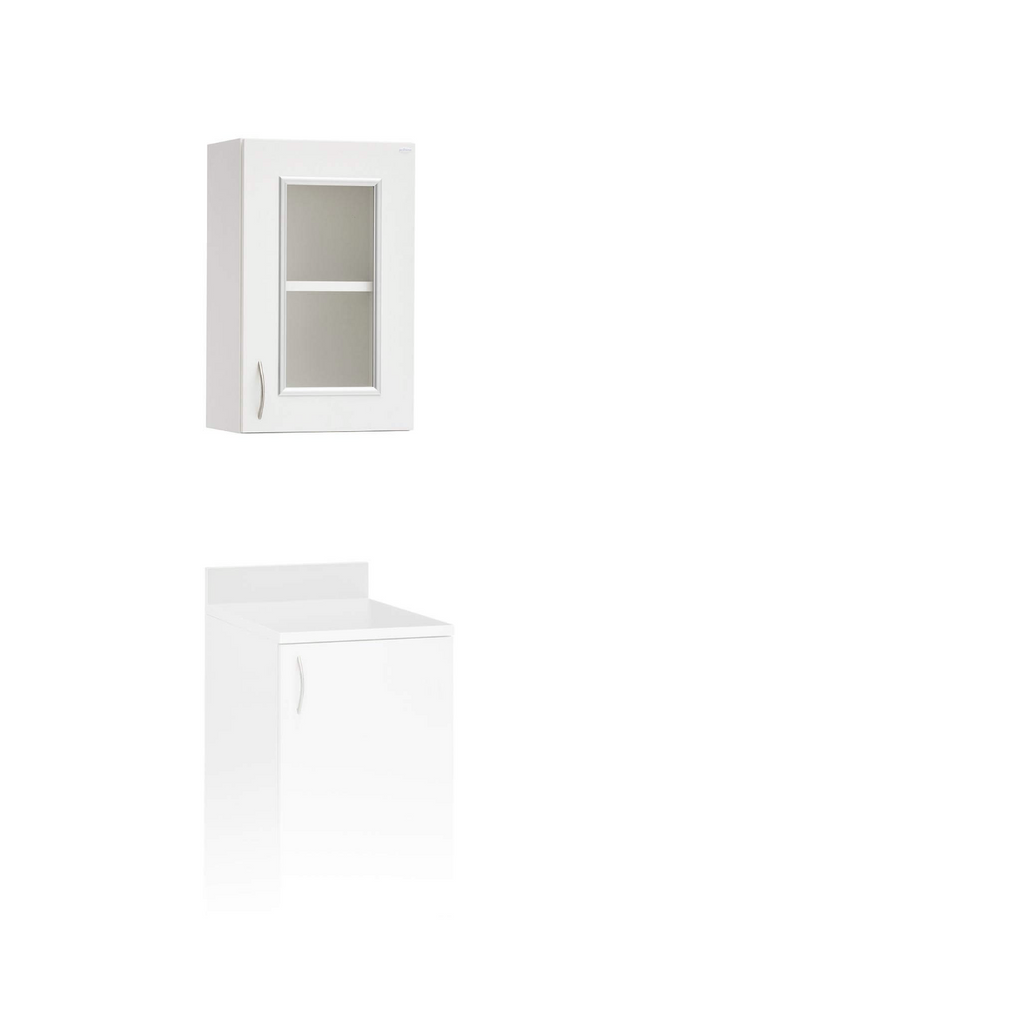

Cabinet with Compression Board

• Cabinet shell: Thermally fused melamine over 0.75”-thick compression board
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Thermally fused melamine over 0.75”-thick compression board
• Roll-top door slats and recessed channel: Polypropylene
• Hinges: Metal concealed European-style
• Edge banding: White ABS
• FlexCell panel: Injection-molded ABS
• Door pulls: Dull chrome-plated steel

Cabinet with AireCore

• Cabinet shell: Aluminum composite with Glacier White finish
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Aluminum composite with Glacier White finish
• Roll-top door slats and recessed channel: Polypropylene
• Hinges: Metal concealed European-style
• Edge banding: White ABS
• FlexCell panel: Injection-molded ABS
• Door pulls: Dull chrome-plated steel

Cabinet with AireCore and Brushed Aluminum

• Cabinet shell: Aluminum composite with Brushed Aluminum
• Glass doors: Clear anodized aluminum and tempered glass
• Solid-front doors: Aluminum composite with Brushed Aluminum
• Glass trim: Clear anodized aluminum
• Roll-top door slats and recessed channel: Polypropylene
• Hinges: Metal concealed European-style
• Edge banding: Brushed Aluminum Acrylic
• FlexCell panel: Injection-molded ABS
• Door pulls: Dull chrome-plated steel

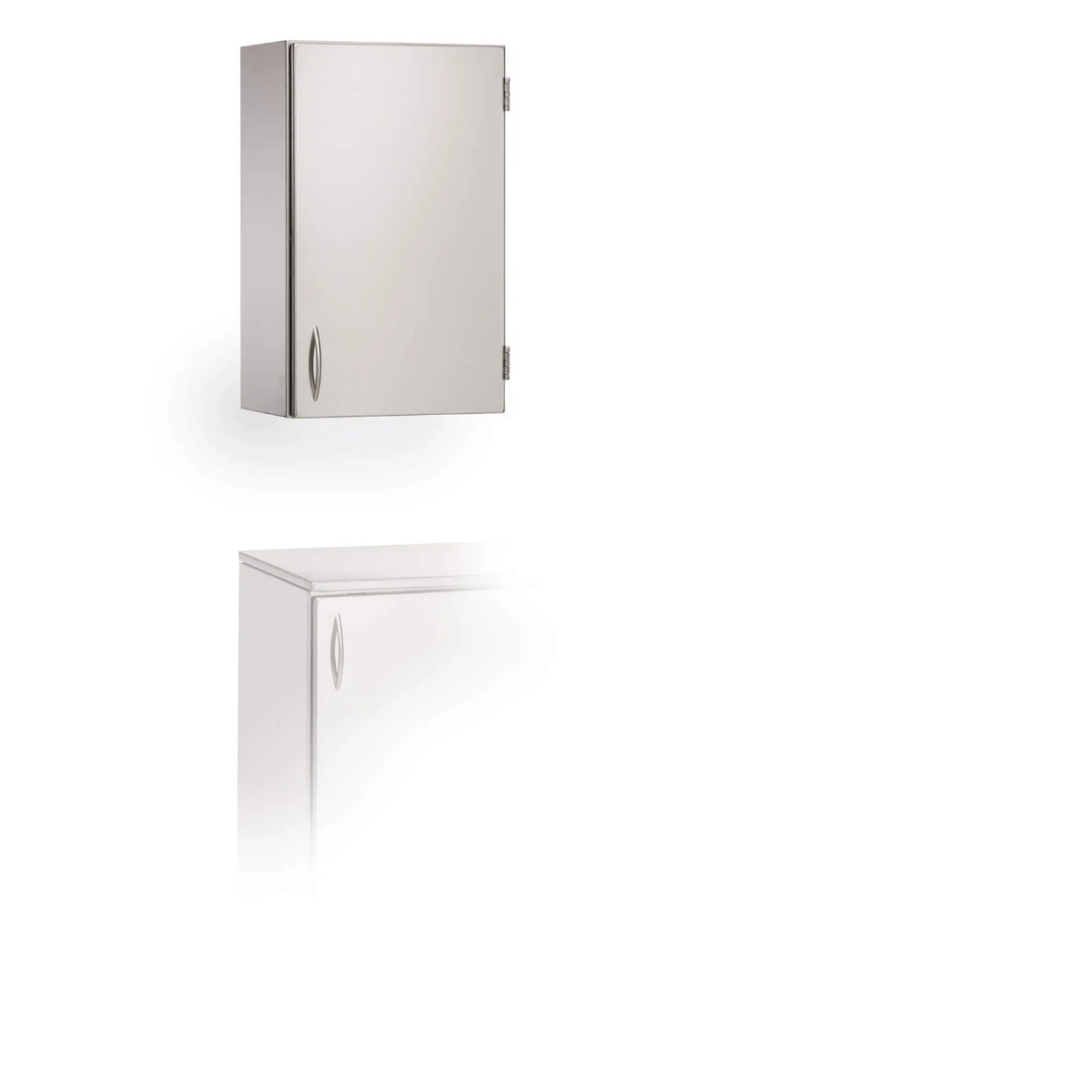

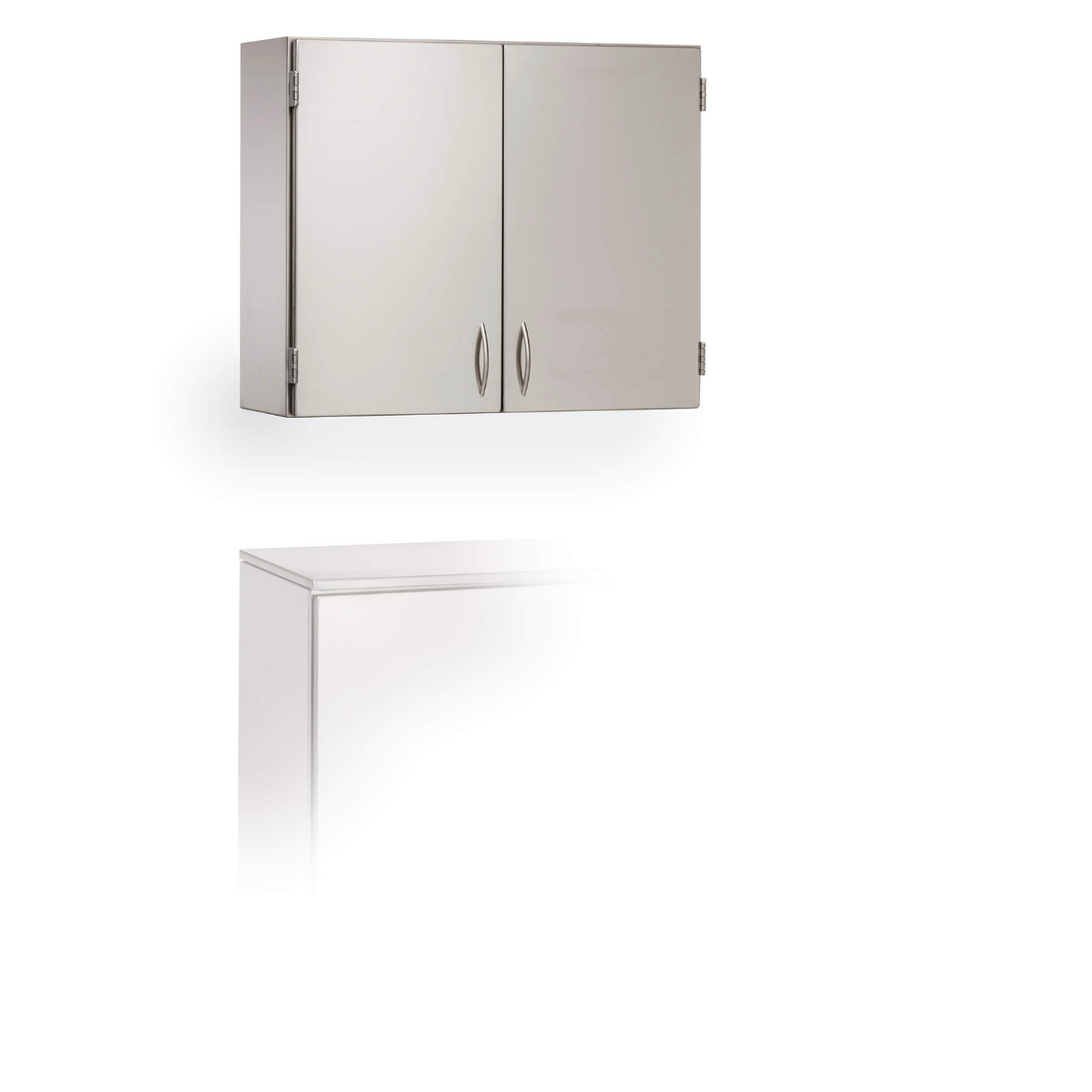

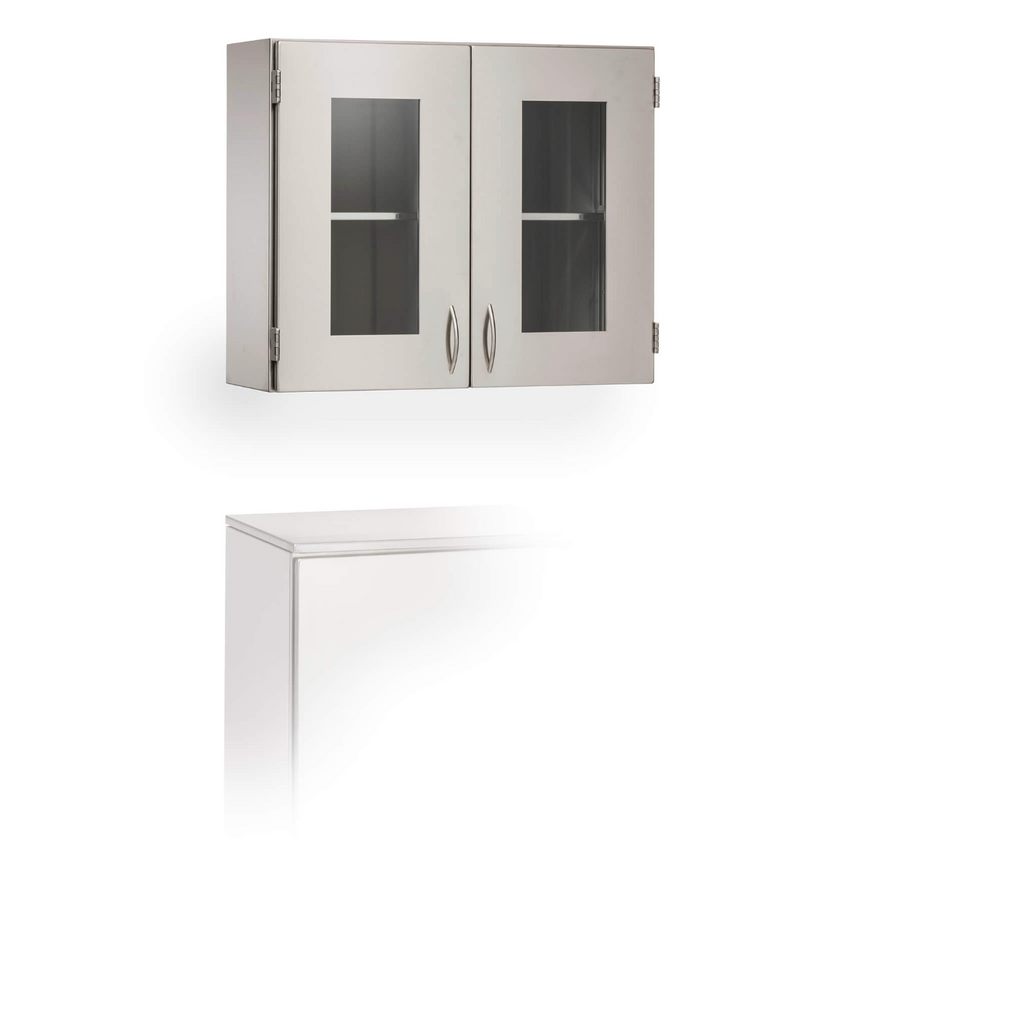

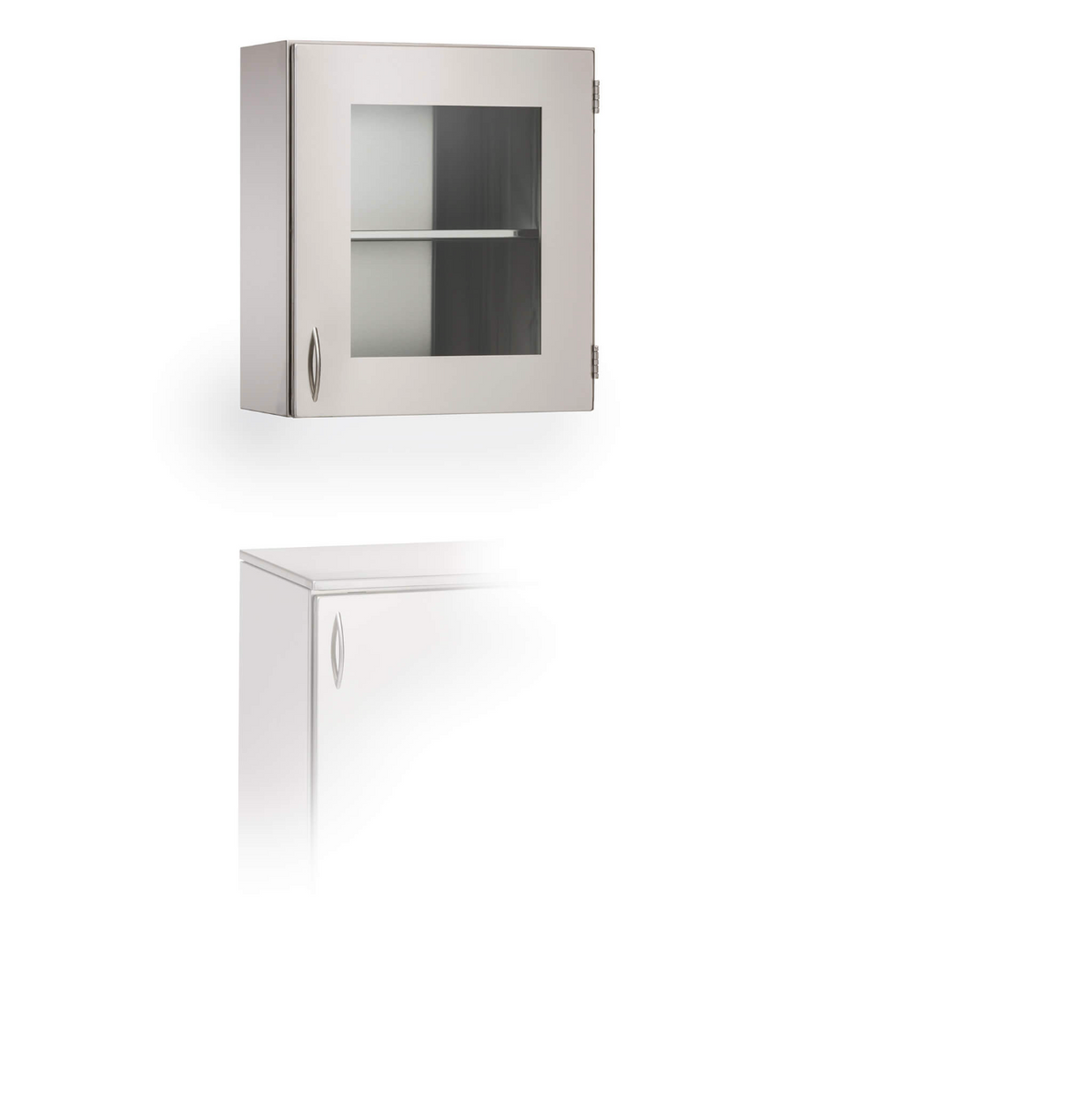

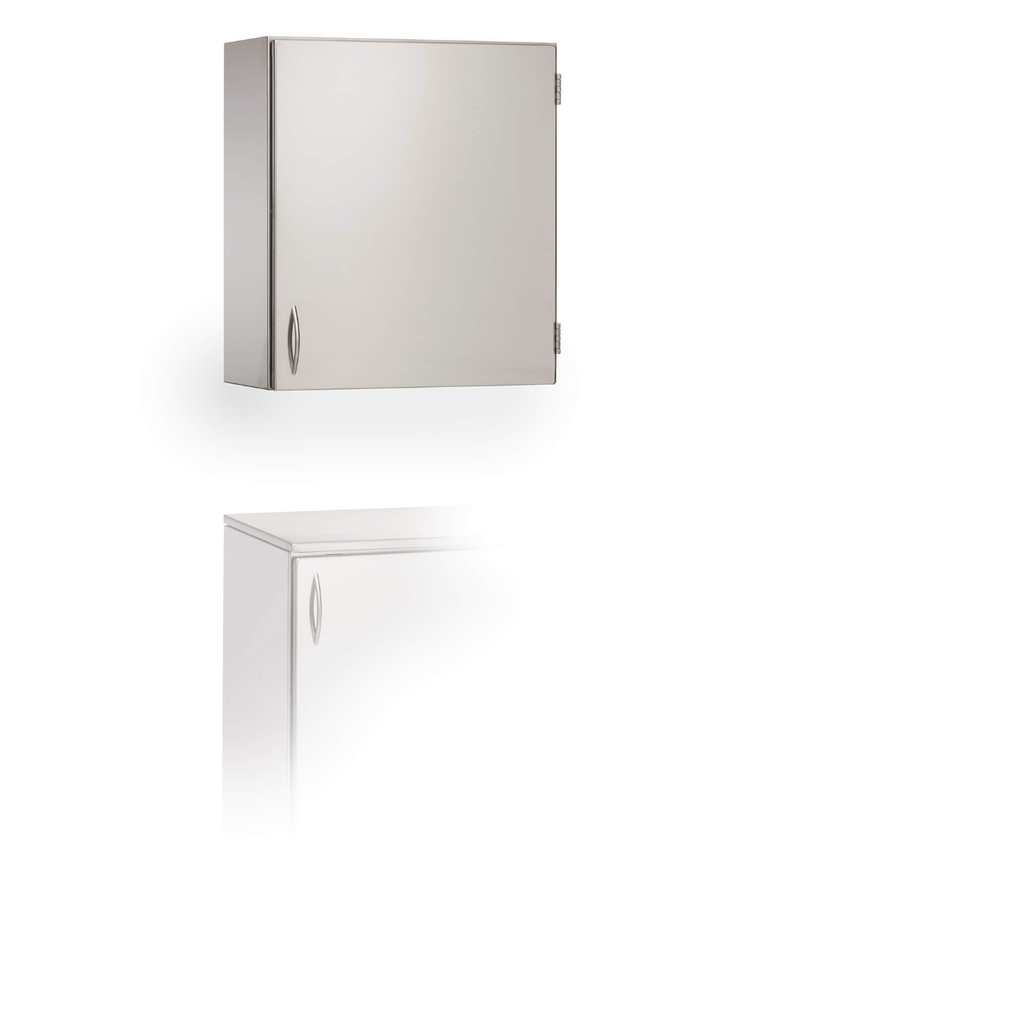

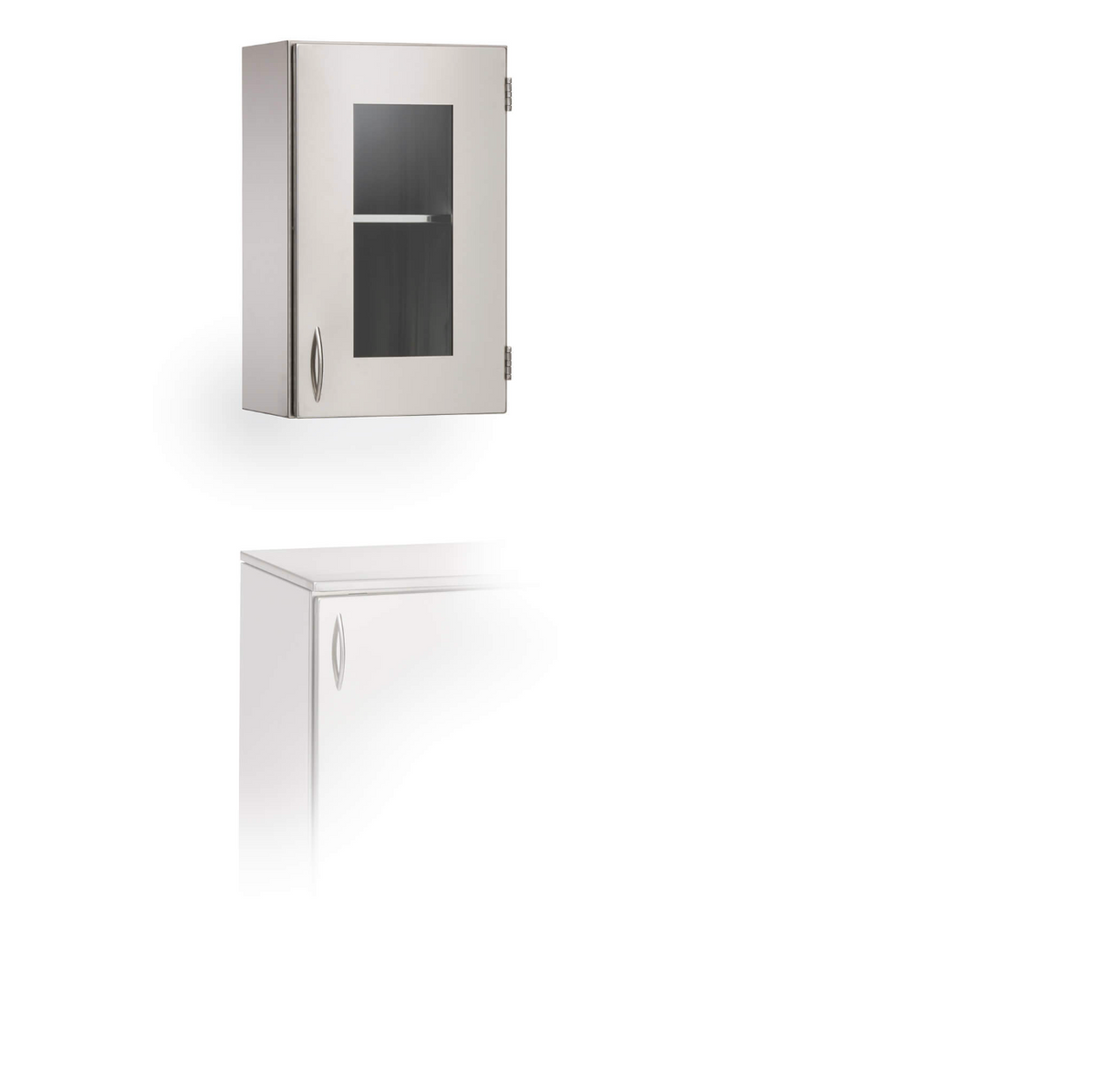

Cabinet with Stainless Steel

• Cabinet shell: 18-gauge 304 stainless steel with 18% chrome and 8% nickel analysis; exposed surfaces furnished with #4 mill finish
• Door: 0.125″ poly-sealed tempered glass or solid hinged doors with 18-gauge 304 stainless steel construction
• Hinges: Stainless steel
• Door Pulls: 5” stainless steel bow pull

Options

• Material options include compression board with melamine, stainless steel, or nonporous AireCore with Glacier White or Brushed Aluminum finish
• Compression board and AireCore cabinets with hinged doors can be specified with laminate surface
• Door can be hinged on right or left side of 18.75”w and 26.75”w cabinets
• Optional keyed, InterConnect lock, or InterConnect Plus lock available
• Optional sloped top available

Product Numbers

Hinged Door:

18.75”w x 13”d x 30”h

• Compression board: SEC1319UGL, SEC1319UGR, SEC1319USL, SEC1319USR
• AireCore: SEA1319UGL, SEA1319UGR, SEA1319USL, SEA1319USR
• AireCore with Brushed Aluminum: SEB1319UGL, SEB1319UGR, SEB1319USL, SEB1319USR
• Stainless steel: SES1319UGL, SES1319UGR, SES1319USL, SES1319USR

26.75″w x 13″d x 30″h

• Compression board: SEC1327UGL, SEC1327UGR, SEC1327USL, SEC1327USR
• AireCore: SEA1327UGL, SEA1327UGR, SEA1327USL, SEA1327USR
• AireCore with Brushed Aluminum: SEB1327UGL, SEB1327UGR, SEB1327USL, SEB1327USR
• Stainless steel: SES1327UGL, SES1327UGR, SES1327USL, SES1327USR

36″w x 13″d x 30″h

• Compression board: SEC1336UG, SEC1336US
• AireCore: SEA1336UG, SEA1336US
• AireCore with Brushed Aluminum: SEB1336UG, SEB1336US
• Stainless steel: SES1336UG, SES1336US
