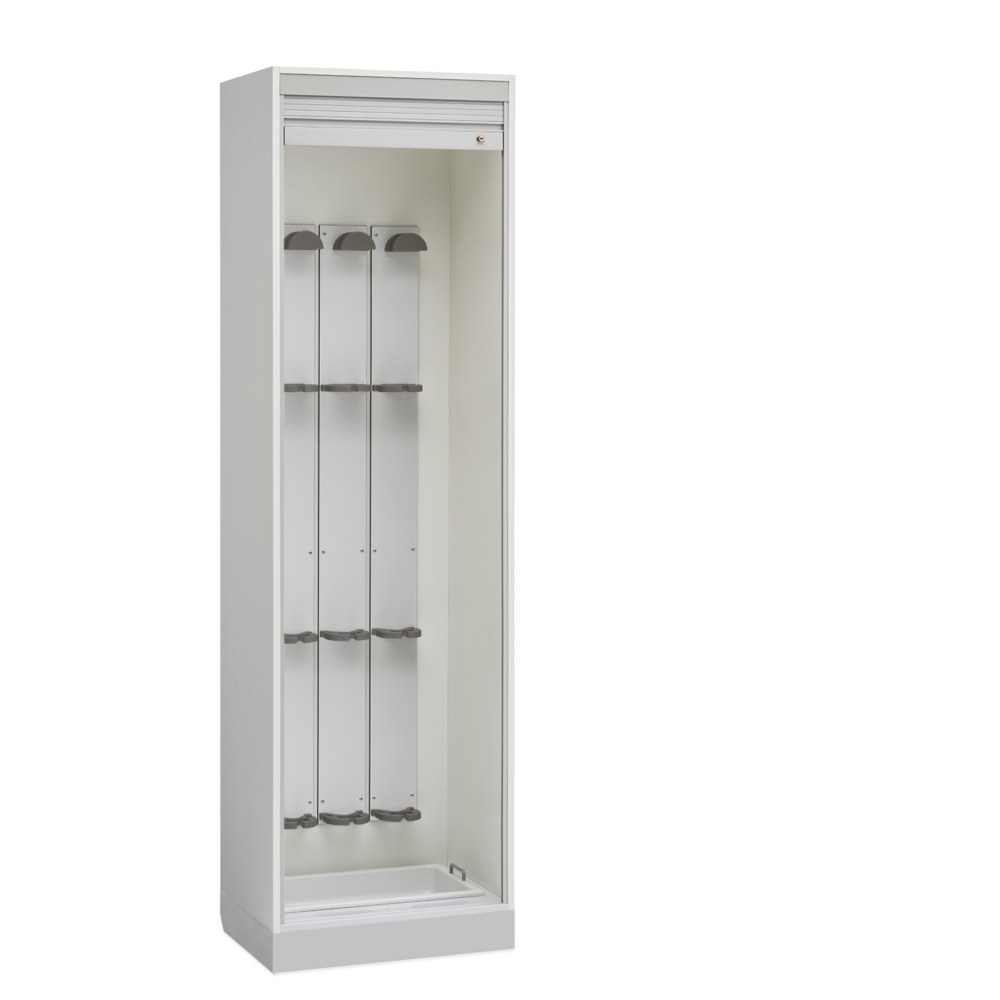

TEE Probe Cabinet – holds 3 probes

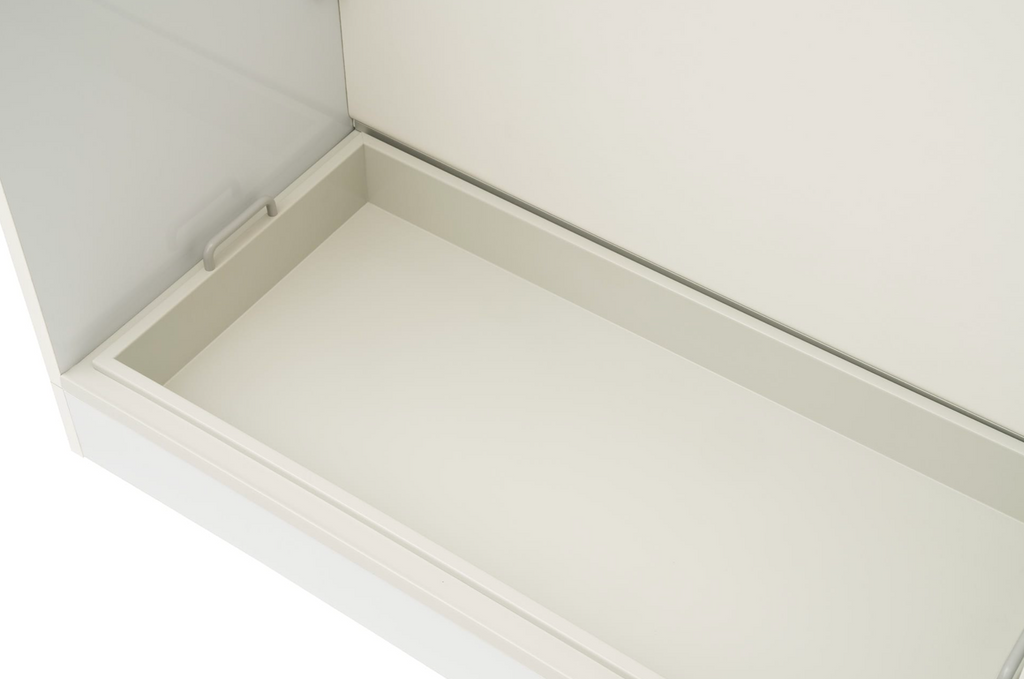

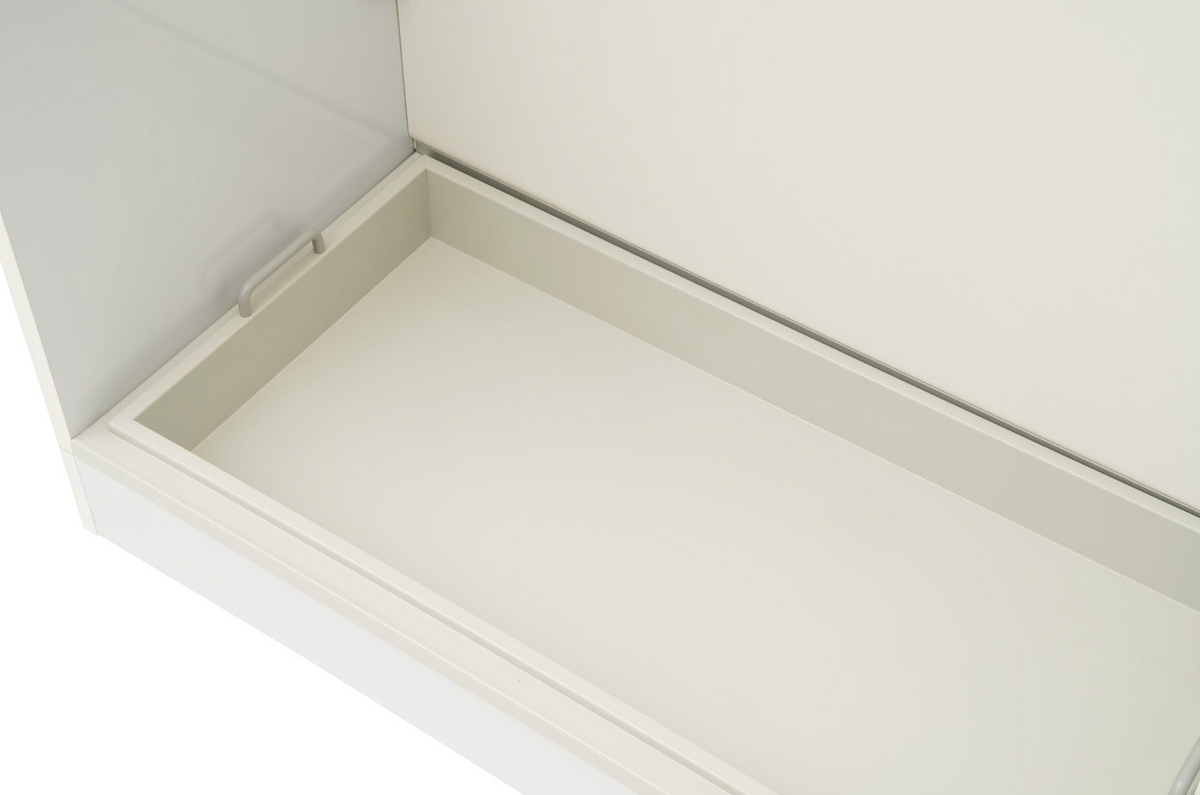

This 26.75″-wide, 19.25”-deep, 92”-high TEE probe cabinet is vented on the top and bottom and includes a removable drip tray. Door choices include a counterbalanced roll-top door or a solid-front or tempered glass door. Cabinet comes with a 4”-high toe kick and Soft White laminate interior.

Details

Note: Overall cabinet height may vary based on selected configuration. Final dimensions will be confirmed prior to order placement.

Dimensions (Nominal)

Hinged door (interior):

• 26.75″w x 19.25″d x 92″h (25.25”w x 17”d x 86.5”h)

Roll-top door (interior):

• 26.75″w x 19.25″d x 92″h (25.25”w x 17”d x 69”h)

Cabinet with 6”h toe kick is 94”h

Interior Configuration

• 26.75”w cabinet holds 3 TEE probes

Materials and Finishes

Cabinet with Compression Board

• Cabinet shell: Thermally fused melamine over 0.75”-thick compression board

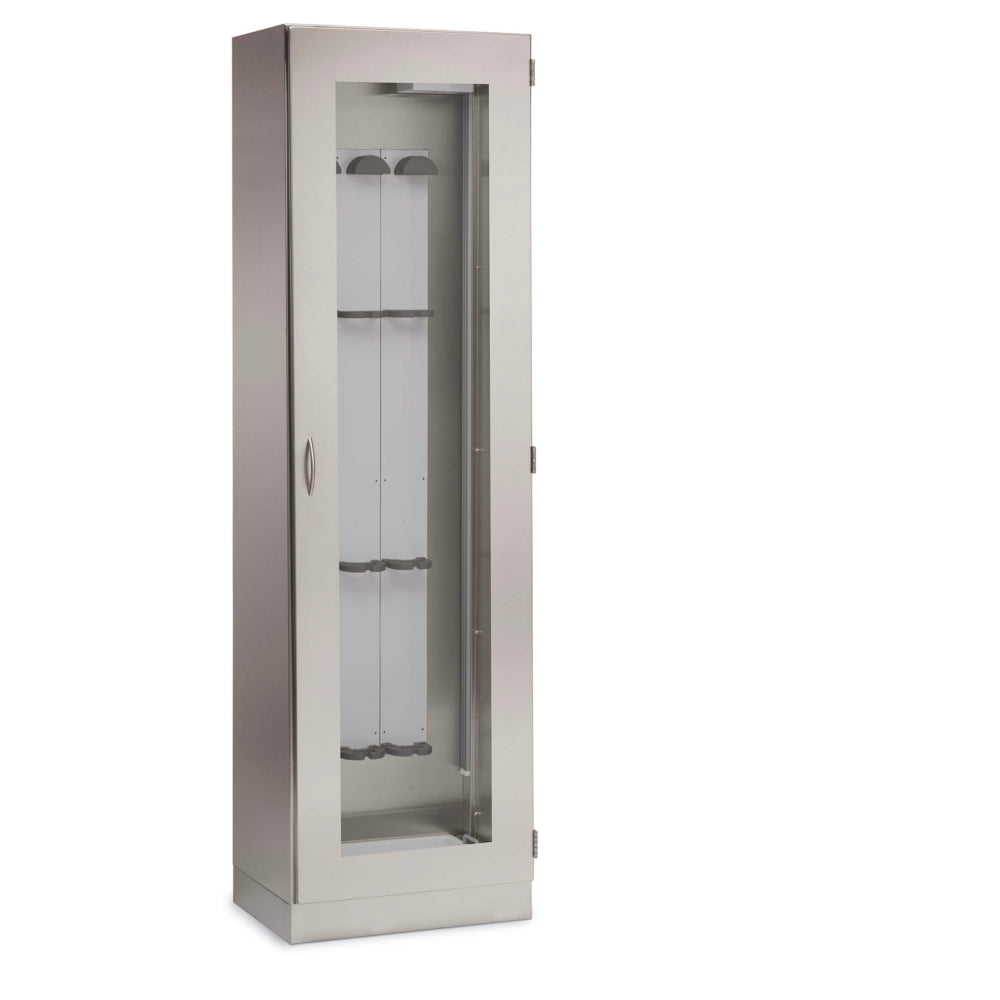

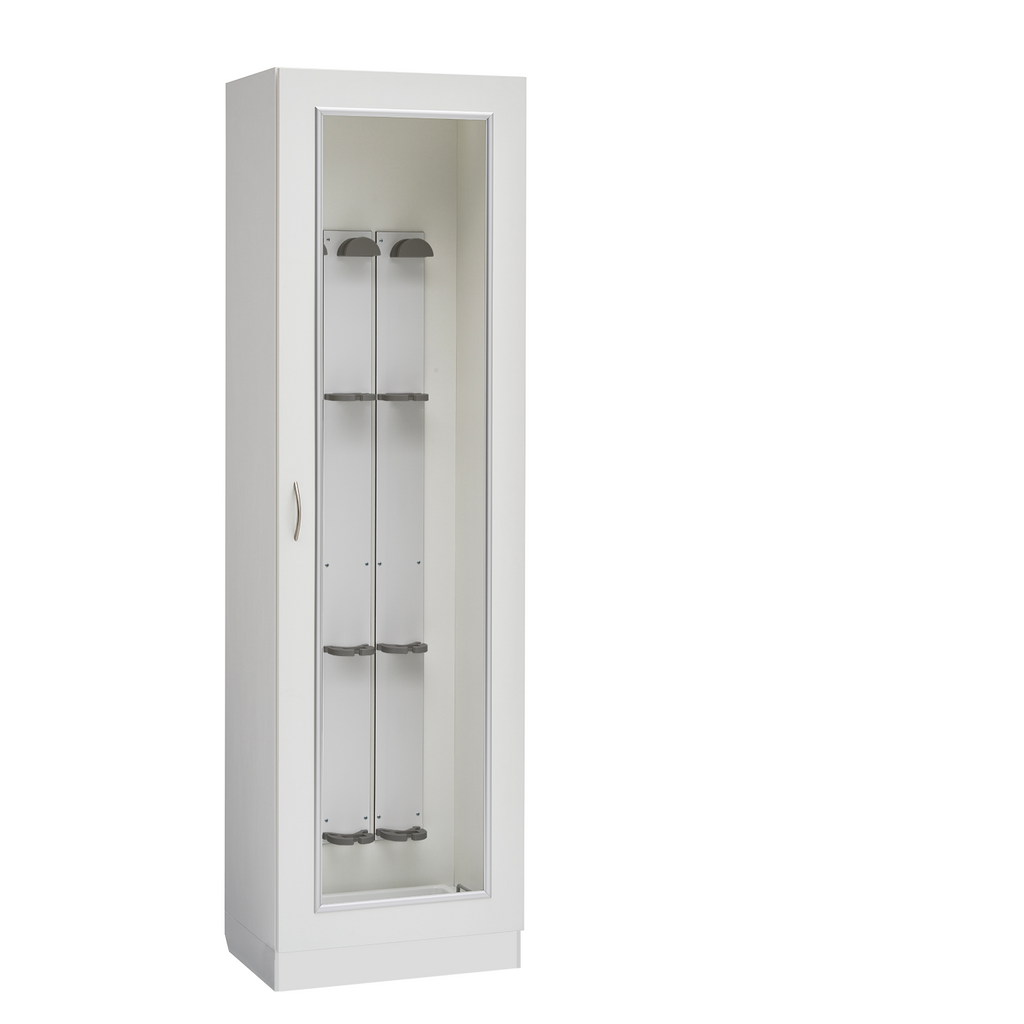

• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Thermally fused melamine over 0.75”-thick compression board
• Roll-top door slats and recessed channel: Polypropylene
• Hinges: Metal concealed European-style
• Edge banding: White ABS
• FlexCell panel: Injection-molded ABS
• Door pulls: Dull chrome-plated steel

Cabinet with AireCore

• Cabinet shell: Aluminum composite with Glacier White finish
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Aluminum composite with Glacier White finish
• Roll-top door slats and recessed channel: Polypropylene
• Hinges: Metal concealed European-style
• Edge banding: White ABS
• FlexCell panel: Injection-molded ABS
• Door pulls: Dull chrome-plated steel

Cabinet with AireCore and Brushed Aluminum

• Cabinet shell: Aluminum composite with Brushed Aluminum
• Glass doors: Clear anodized aluminum and tempered glass
• Solid-front doors: Aluminum composite with Brushed Aluminum
• Glass trim: Clear anodized aluminum
• Roll-top door slats and recessed channel: Polypropylene
• Hinges: Metal concealed European-style
• Edge banding: Brushed Aluminum Acrylic
• FlexCell panel: Injection-molded ABS
• Door pulls: Dull chrome-plated steel

Cabinet with Stainless Steel

• Cabinet shell: 18-gauge 304 stainless steel with 18% chrome and 8% nickel analysis; exposed surfaces furnished with #4 mill finish

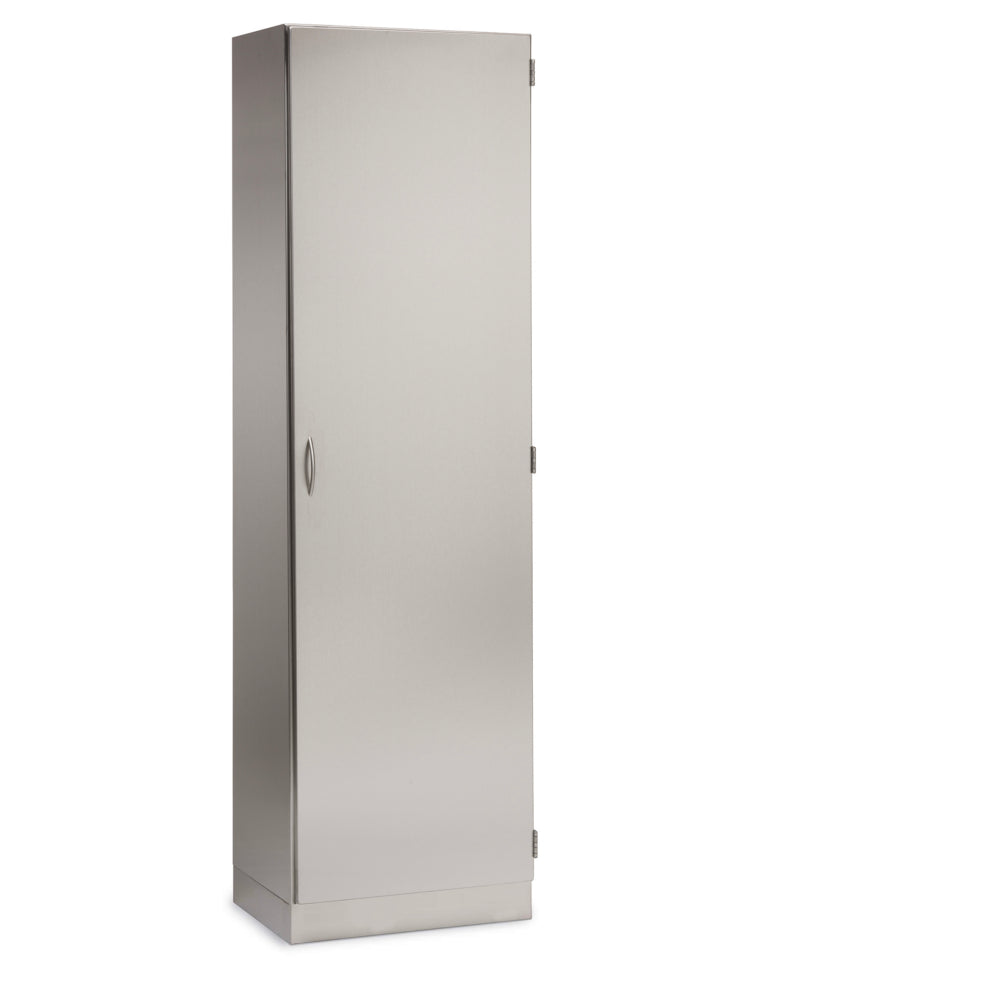

• Door: 0.125″ poly-sealed tempered glass or solid hinged doors with 18-gauge 304 stainless steel construction
• Hinges: Stainless steel
• Door Pulls: 5” stainless steel bow pull

Options

• Material options include compression board with melamine, stainless steel, or nonporous AireCore with Glacier White or Brushed Aluminum finish
• Compression board and AireCore cabinets with hinged doors can be specified with laminate surface
• Door can be hinged on right or left side of 26.75”w cabinet
• Optional Fan Ventilation Unit available

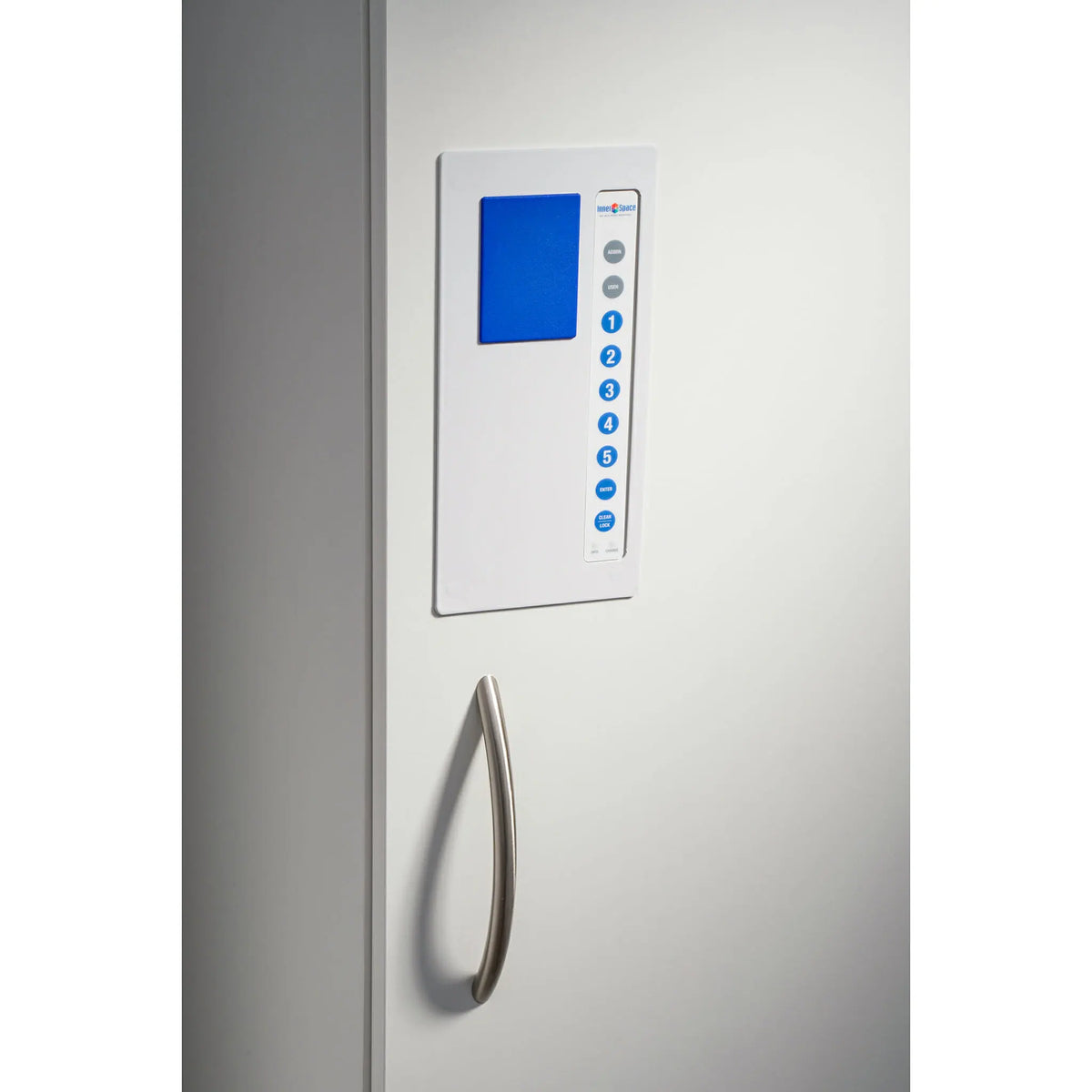

• Optional keyed, InterConnect lock, or InterConnect Plus lock available on cabinets with hinged doors; optional keyed lock available on cabinets with roll-top doors.
• Optional sloped top available
• Optional 6”h toe kick available

Model / Configuration Information:

Hinged Door:

• Compression board: SEC1927PGRT, SEC1927PGLT, SEC1927PSRT, SEC1927PSLT
• AireCore: SEA1927PGRT, SEA1927PGLT, SEA1927PSRT, SEA1927PSLT
• AireCore with Brushed Aluminum: SEB1927PGRT, SEB1927PGLT, SEB1927PSRT, SEB1927PSLT
• Stainless steel: SES1927PGRT, SES1927PGLT, SES1927PSRT, SES1927PSLT

Roll-top Door:

• Compression board: SEC1927PRTT
• AireCore: SEA1927PRTT
• AireCore with Brushed Aluminum: SEB1927PRTT
• Stainless steel: SES1927PRTT
