Tall Cabinet with Adjustable Shelves - Evolve Architectural Series

This 84”-high cabinet comes in 9 widths, 2 depths, and includes 5 adjustable shelves. Door options include single and double solid-front hinged doors and single and double tempered glass doors. A 4”-high toe kick is standard.

Details

Note: 42”- and 48”-wide cabinets available only in stainless steel.

Note: Overall cabinet height may vary based on selected configuration. Final dimensions will be confirmed prior to order placement.

Dimensions (nominal)

Cabinets are 84”h

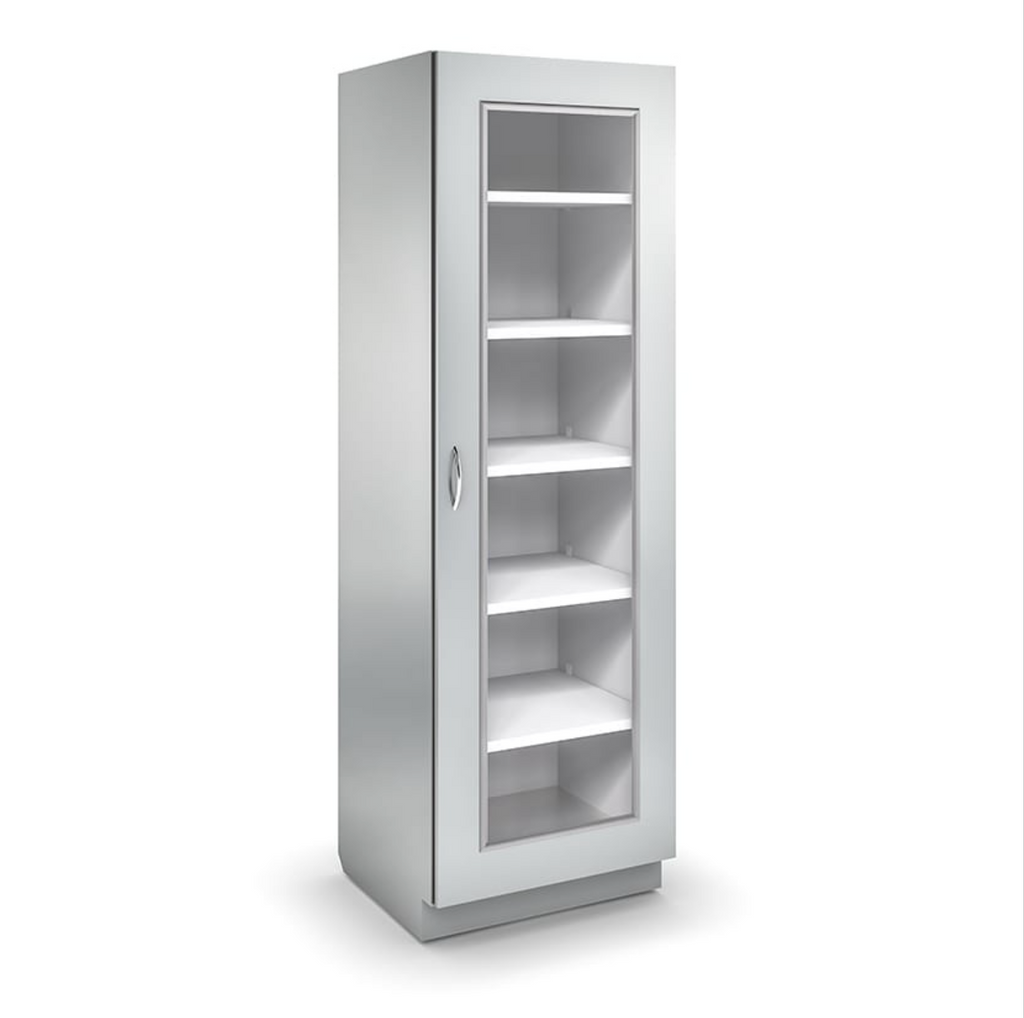

Cabinet with single door:

• 15”w, 18”w, 21”w, and 27”w and 18”d
• 15”w, 18”w, 21”w, and 27”w and 24”d

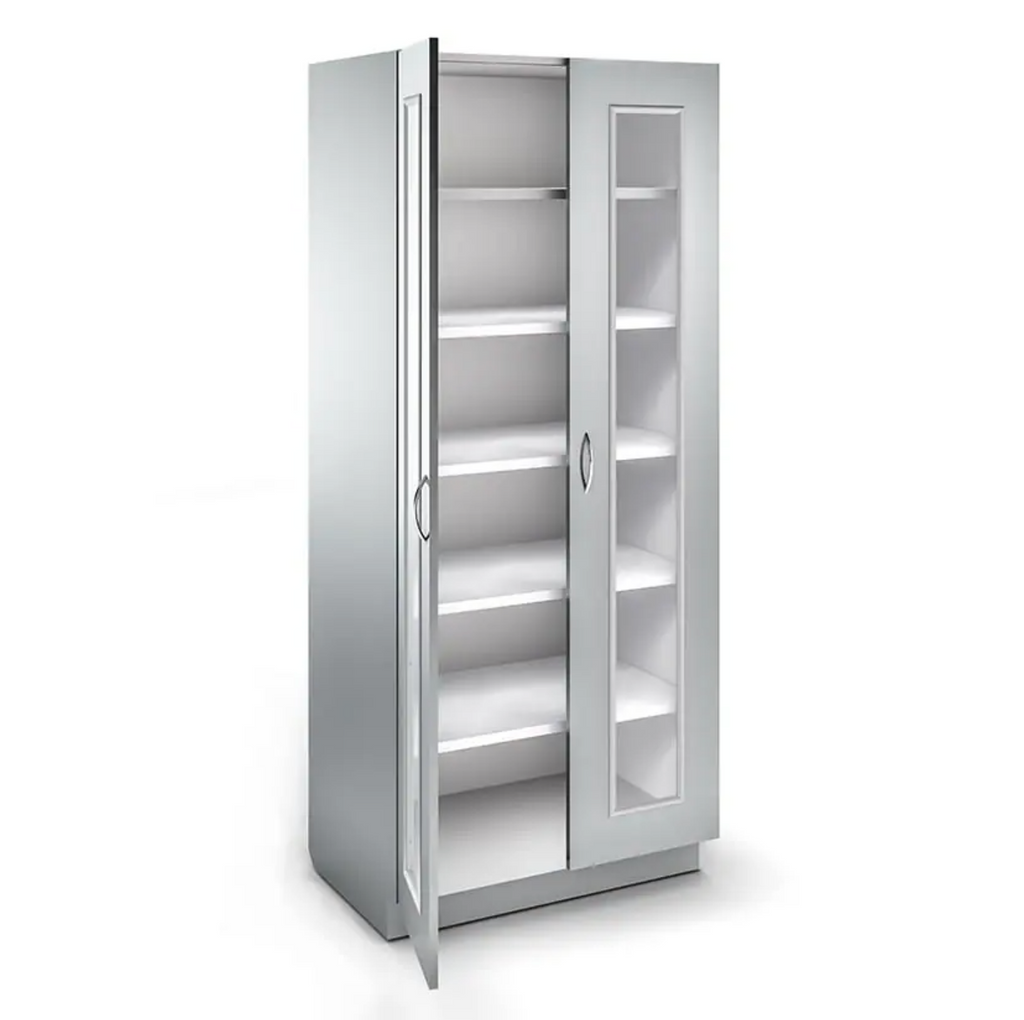

Cabinet with double doors:

• 30”w, 36”w, 42”w, and 48”w and 18”d
• 30”w, 36”w, 42”w, and 48”w and 24”d

Materials and Finishes

Compression Board Cabinet

• Cabinet shell: Thermally fused melamine over 0.75”-thick compression board
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Thermally fused melamine over 0.75”-thick compression board
• Hinges: Metal, concealed European-style
• Edge banding: White ABS
• Door pulls: Dull chrome-plated steel

AireCore Cabinet

• Cabinet shell: Aluminum composite with Glacier White finish
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Aluminum composite with Glacier White finish
• Hinges: Metal, concealed European-style
• Edge banding: White ABS
• Door pulls: Dull chrome-plated steel

AireCore and Brushed Aluminum Cabinet

• Cabinet shell: Aluminum composite with Brushed Aluminum
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Aluminum composite with Brushed Aluminum
• Hinges: Metal, concealed European-style
• Edge banding: Brushed Aluminum Acrylic
• Door pulls: Dull chrome-plated steel

Stainless Steel Cabinet

• Cabinet shell: 18-gauge 304 stainless steel with 18% chrome and 8% nickel analysis; exposed surfaces furnished with #4 mill finish
• Door: 0.125” poly-sealed tempered glass or solid hinged doors with 18-gauge 304 stainless steel construction
• Hinges: Stainless steel
• Door Pulls: 5” stainless steel bow pull

Options

Material options include compression board with melamine or specified laminate, stainless steel, and AireCore with Glacier White or Brushed Aluminum finish

• Tempered glass or solid-front hinged door
• Keyed, InterConnect lock, or InterConnect Plus lock (with Innerspace Cloud services)
• Sloped top
• Additional shelves
• LED lights for cabinet interior
