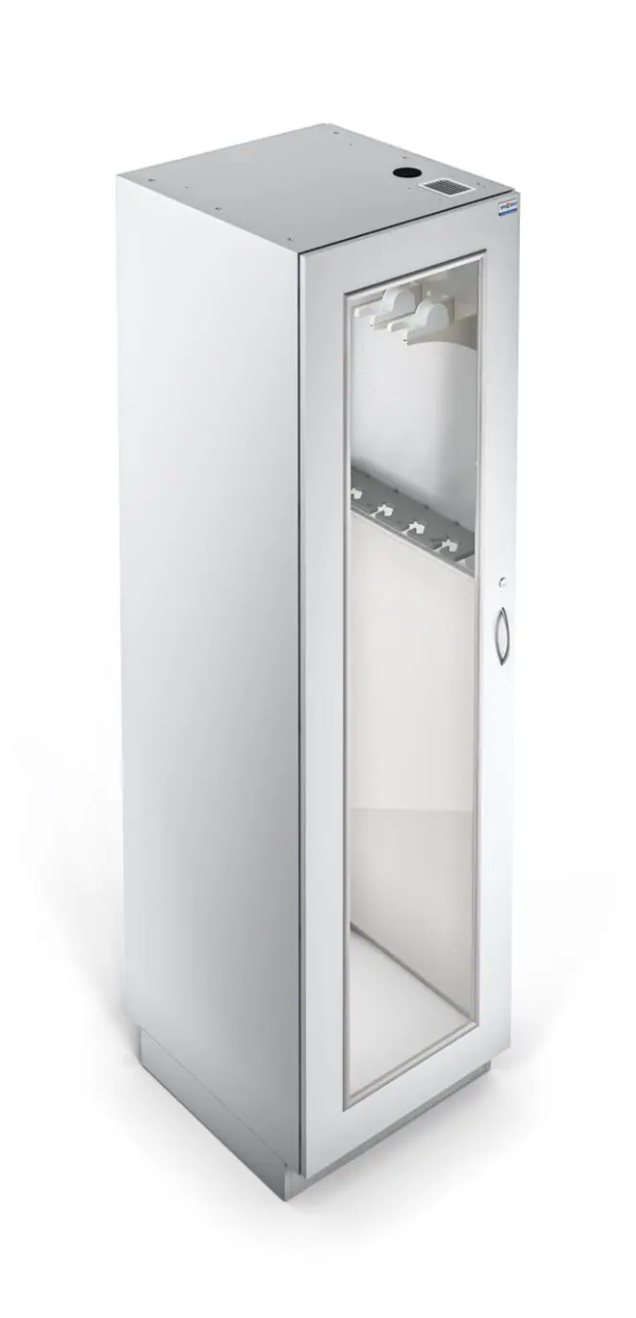

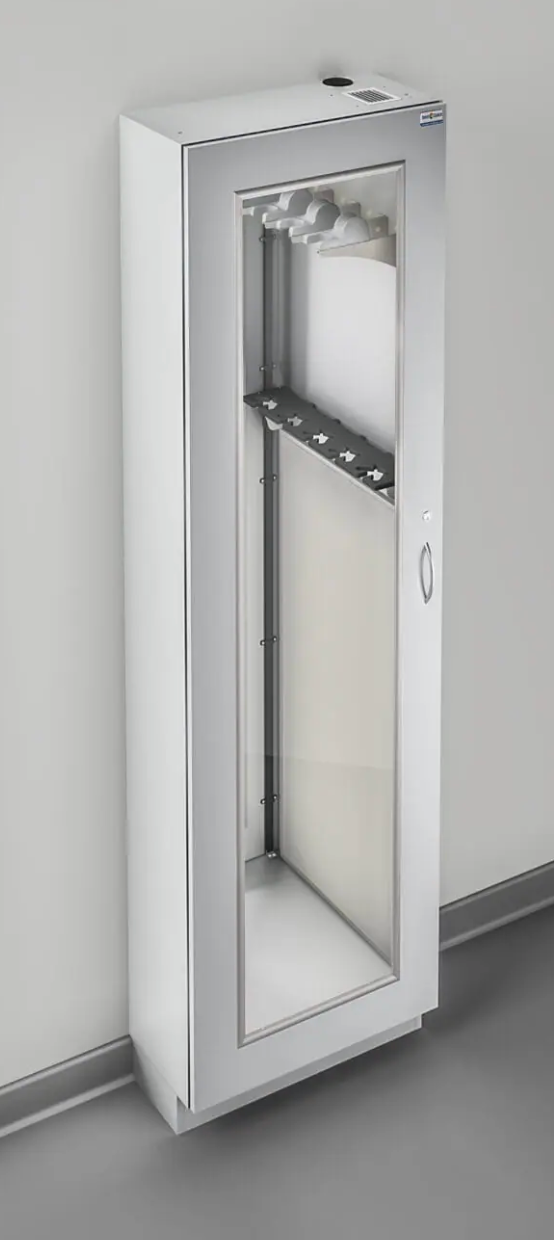

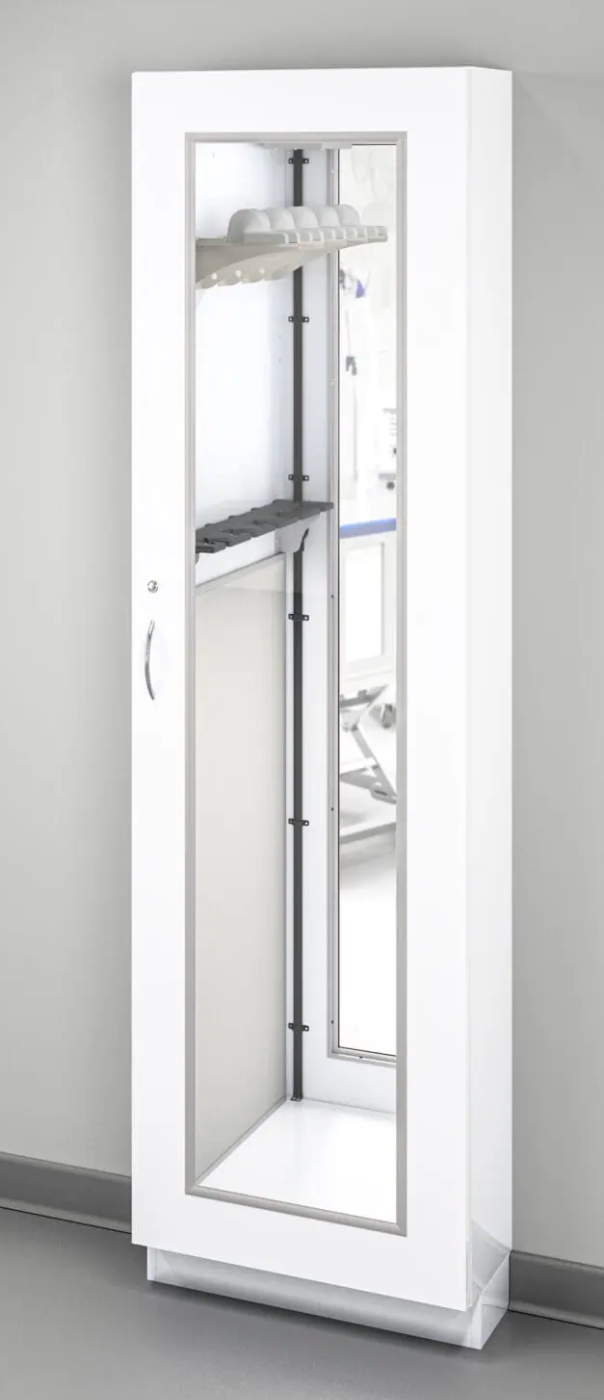

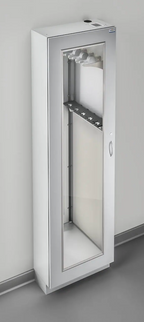

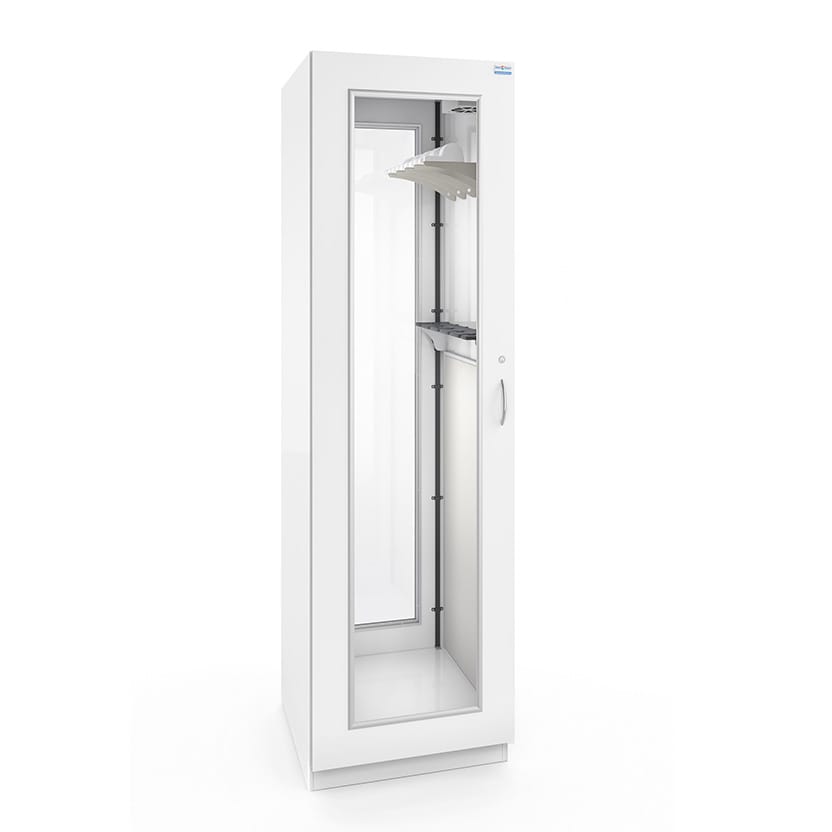

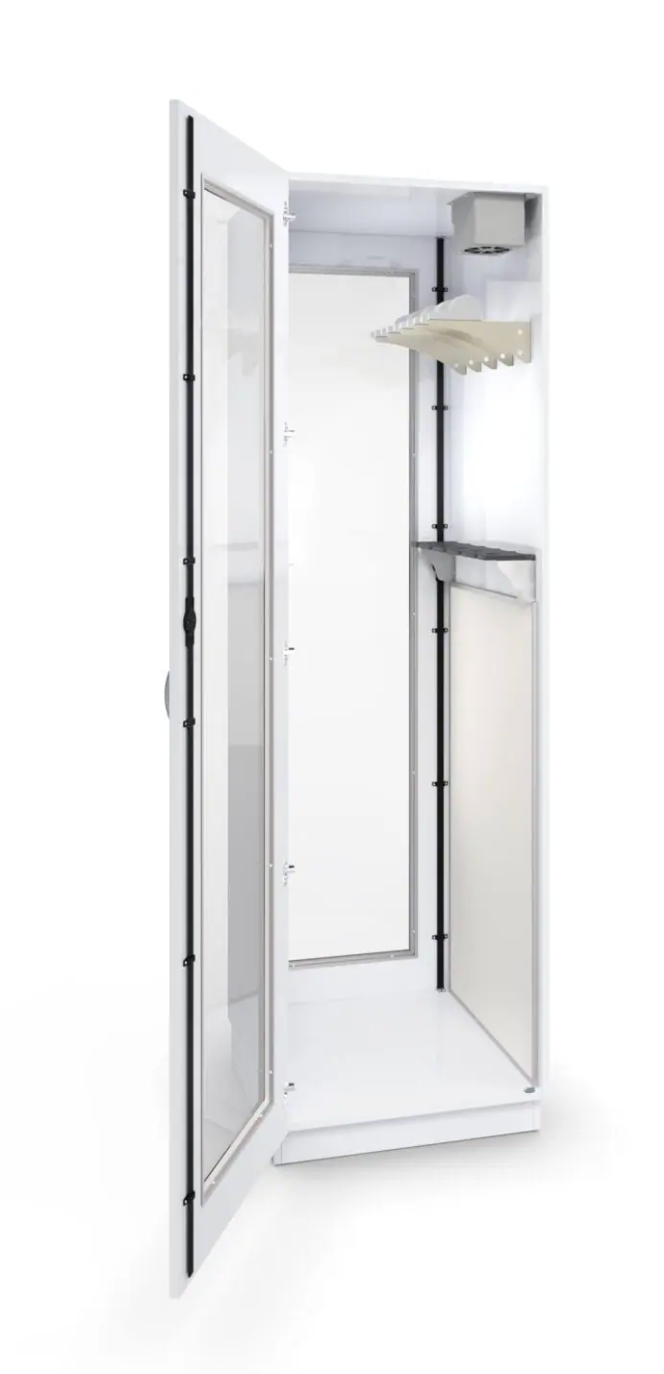

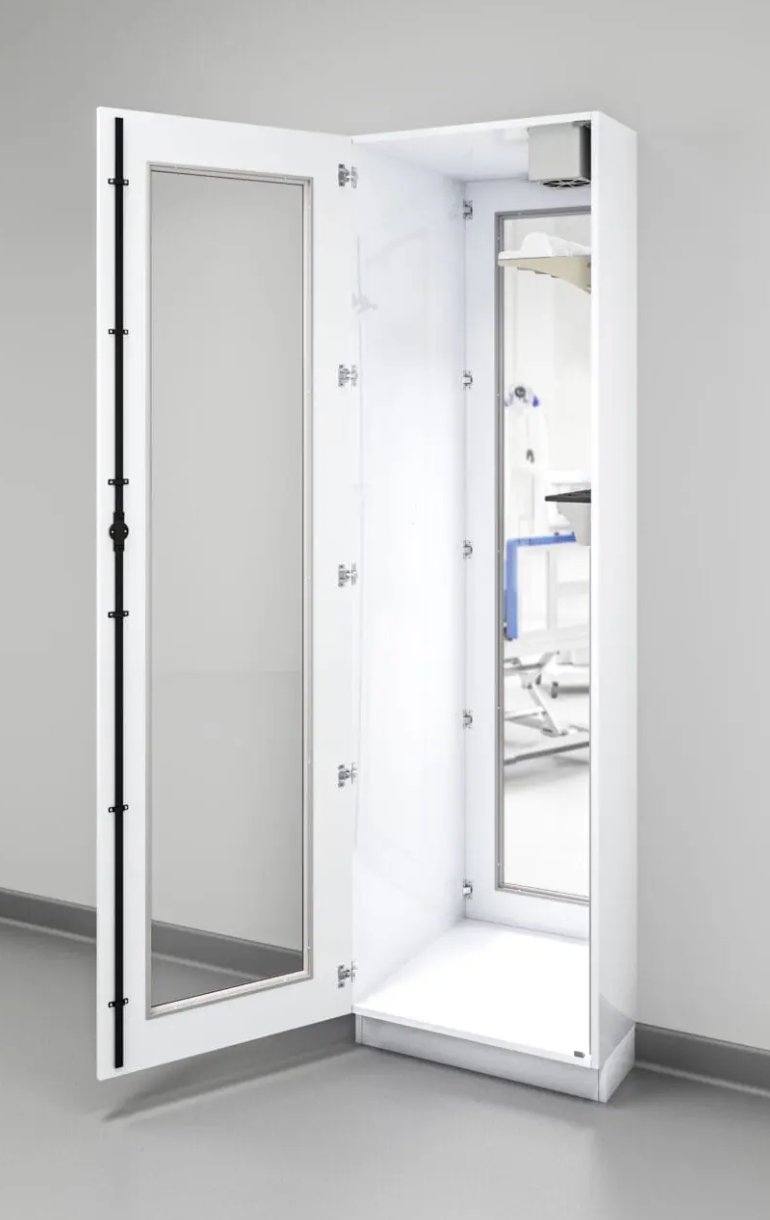

Scope Pass-Through Cabinet

The scope pass-through cabinet comes with 1 tempered glass door on each side of the cabinet. It has a padded wall to protect scope optics and holds 5 scopes. Material choices include nonporous AireCore with Glacier White finish, Brushed Aluminum finish, or specified laminate surface. Cabinet has a 4”-high toe kick.

Details

Note: Overall cabinet height may vary based on selected configuration. Final dimensions will be confirmed prior to order placement.

Dimensions (Nominal)

Exterior: 26.75”w x 29”d x 92”h; Interior: 25”w x 27”d x 86.5”h

Scope hanging length: 74.75” (non-adjustable)

92”h cabinet with 6” toe kick is 94”h

Interior Configuration

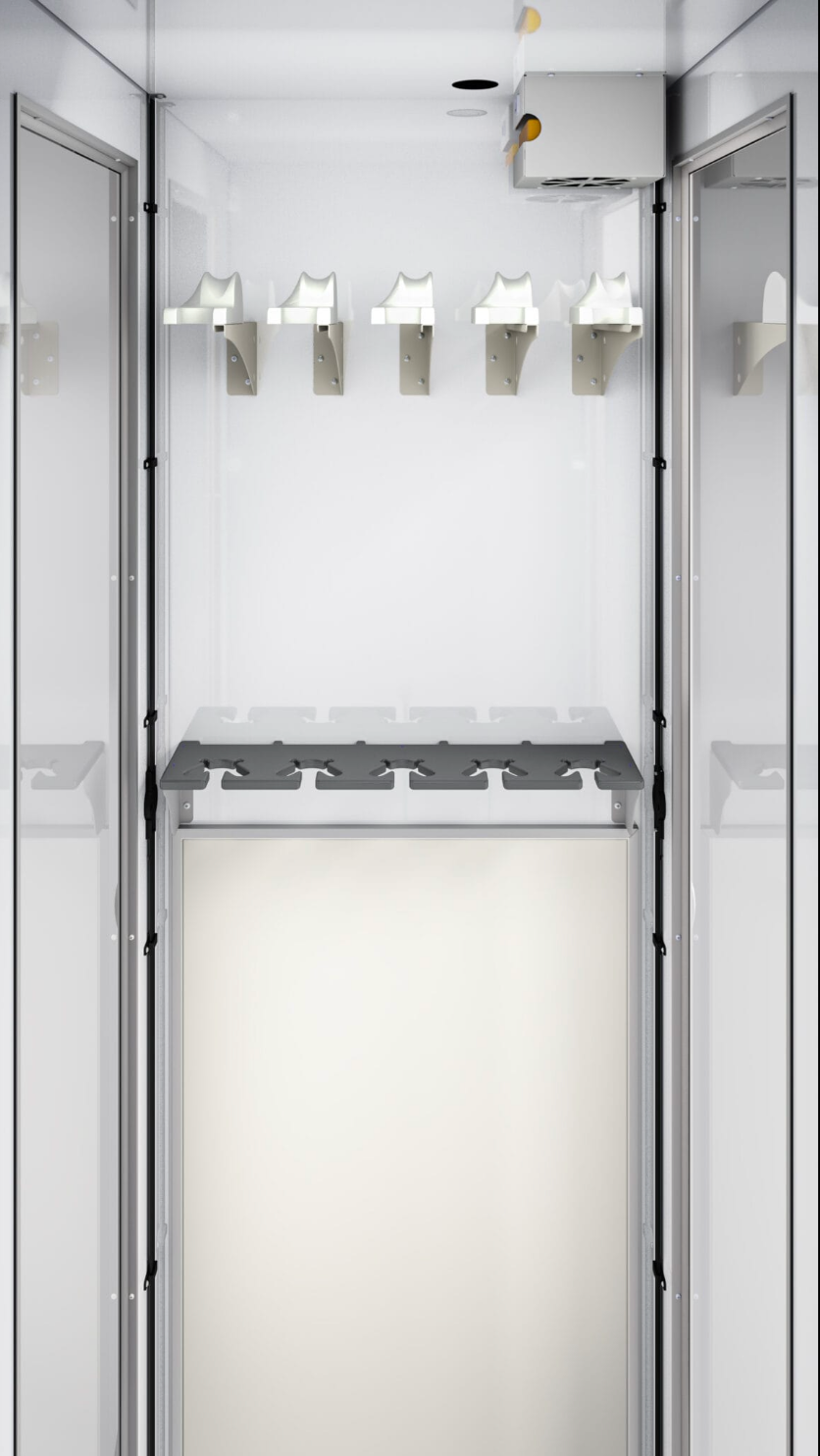

Cabinet holds 5 scopes

Specifications

Electrical requirements for cabinet with fan ventilation unit (SFVU):

• Voltage Rating: 115 VAC
• Watts: 13.0W
• Amps: 0.19A

Materials and Finishes

Cabinet shell:

• AireCore: Aluminum composite with Glacier White finish or specified Wilsonart, Formica, or Pionite standard laminate
• AireCore with Brushed Aluminum finish: Aluminum composite with Brushed Aluminum finish

Edge banding:

• AireCore with Brushed Aluminum finish: Brushed Aluminum acrylic

Glass-front door:

• AireCore: Aluminum composite with Glacier White finish or specified Wilsonart, Formica, or Pionite standard laminate with tempered glass and clear anodized aluminum trim
• AireCore with Brushed Aluminum finish: Aluminum composite with Brushed Aluminum finish with tempered glass and clear anodized aluminum trim

Hinges:

• AireCore, and AireCore with Brushed Aluminum cabinet: Metal concealed European-style

Door pulls:

• AireCore, and AireCore with Brushed Aluminum cabinet: Dull chrome-plated steel bow pull

Options

Material options include nonporous AireCore with Glacier White or Brushed Aluminum finish or specified laminate surface.
Order optional products separately:

• Keyed lock (1 for each door)
• Fan Ventilation Unit
• 6” toe kick

Product Numbers

AireCore: SEA2927SGS-PASS
AireCore and Brushed Aluminum: SEB2927SGS-PASS
