Base Cabinet with FlexCell - Evolve FlexCell Series

This 34.5”-high base cabinet comes in 3 widths and 2 depths. Its FlexCell interior provides a durable, cleanable, and reconfigurable system for organizing trays, baskets, and shelves. Cabinet has a lockable solid-front or roll-top door and 4”-high toe kick. Order countertop separately.

Details

Note: Overall cabinet height may vary based on selected configuration. Final dimensions will be confirmed prior to order placement.

Dimensions (Nominal)

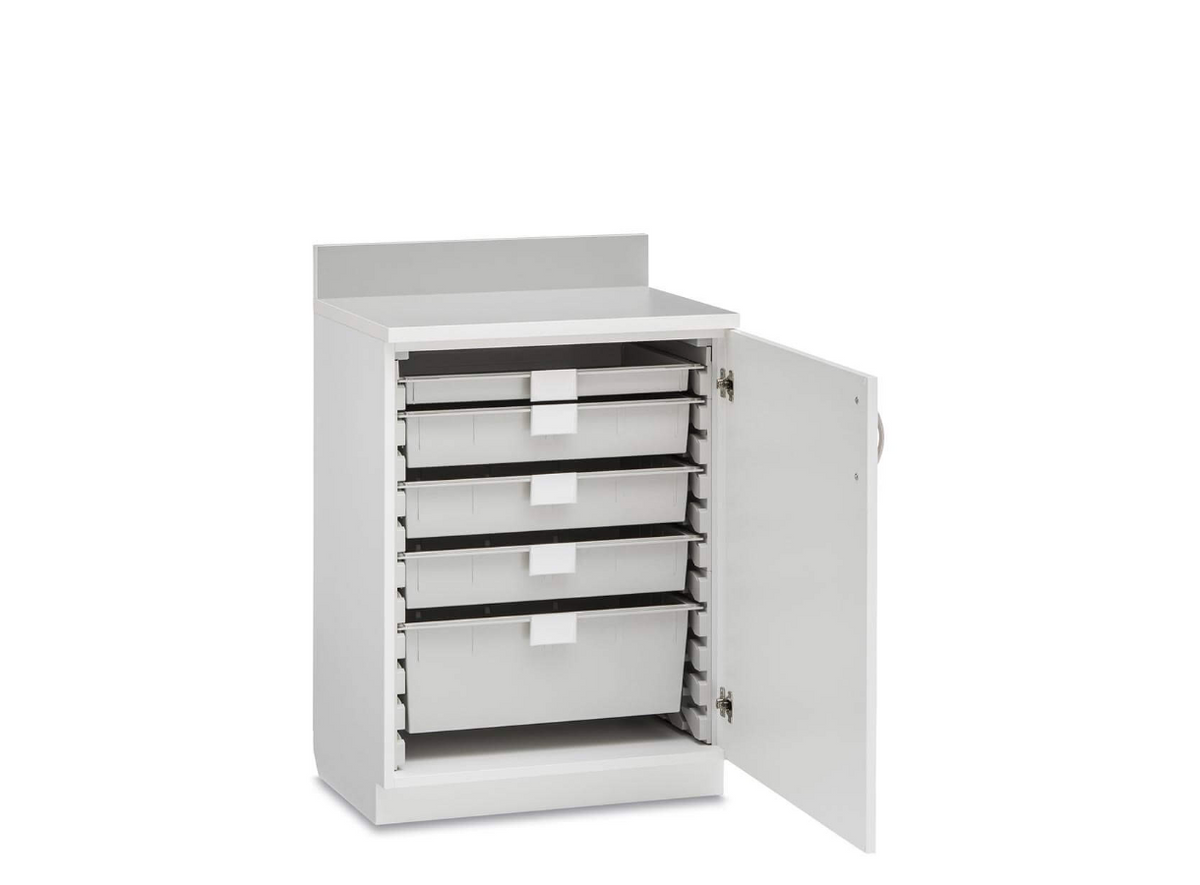

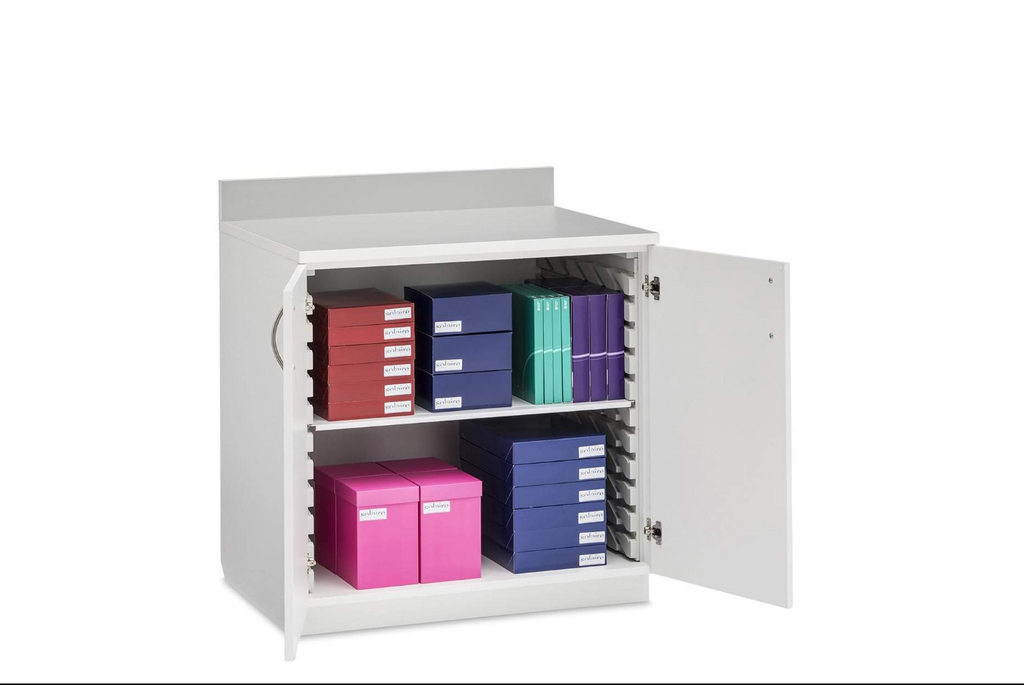

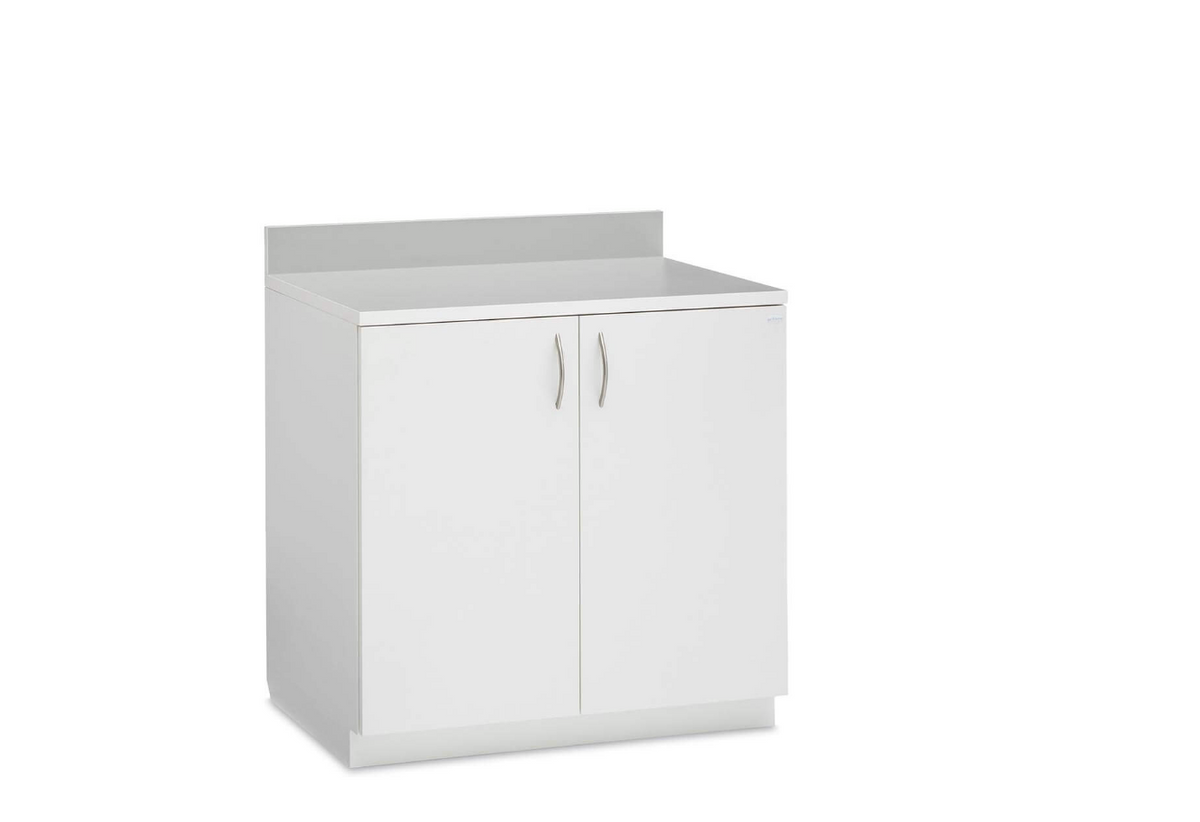

Hinged door: exterior (interior)

• 18.75”w x 27.25″d x 34.5″h (15.5″w x 24.75″d x 28.5″h)
• 26.75”w x 19.25″d x 34.5″h (22.75″w x 16.75″d x 28.5″h)
• 36”w x 27.25″d x 34.5″h (31.75″w x 24.75″d x 28.5″h)

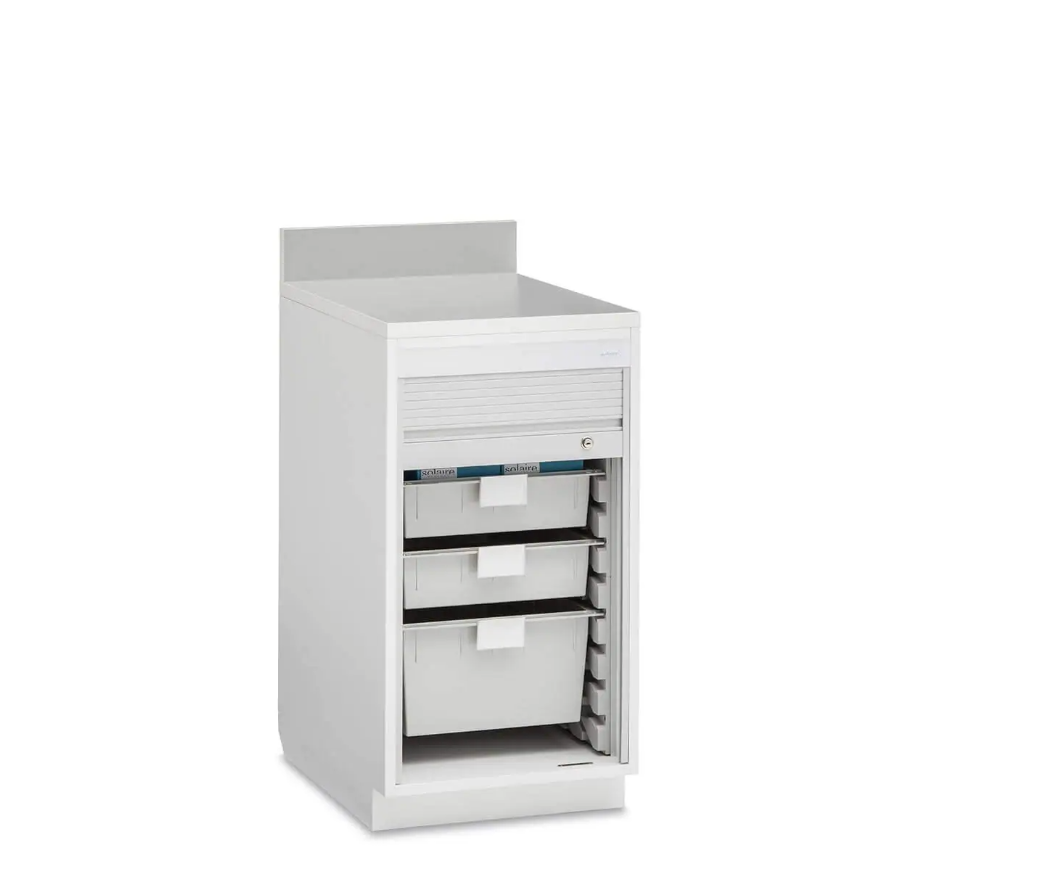

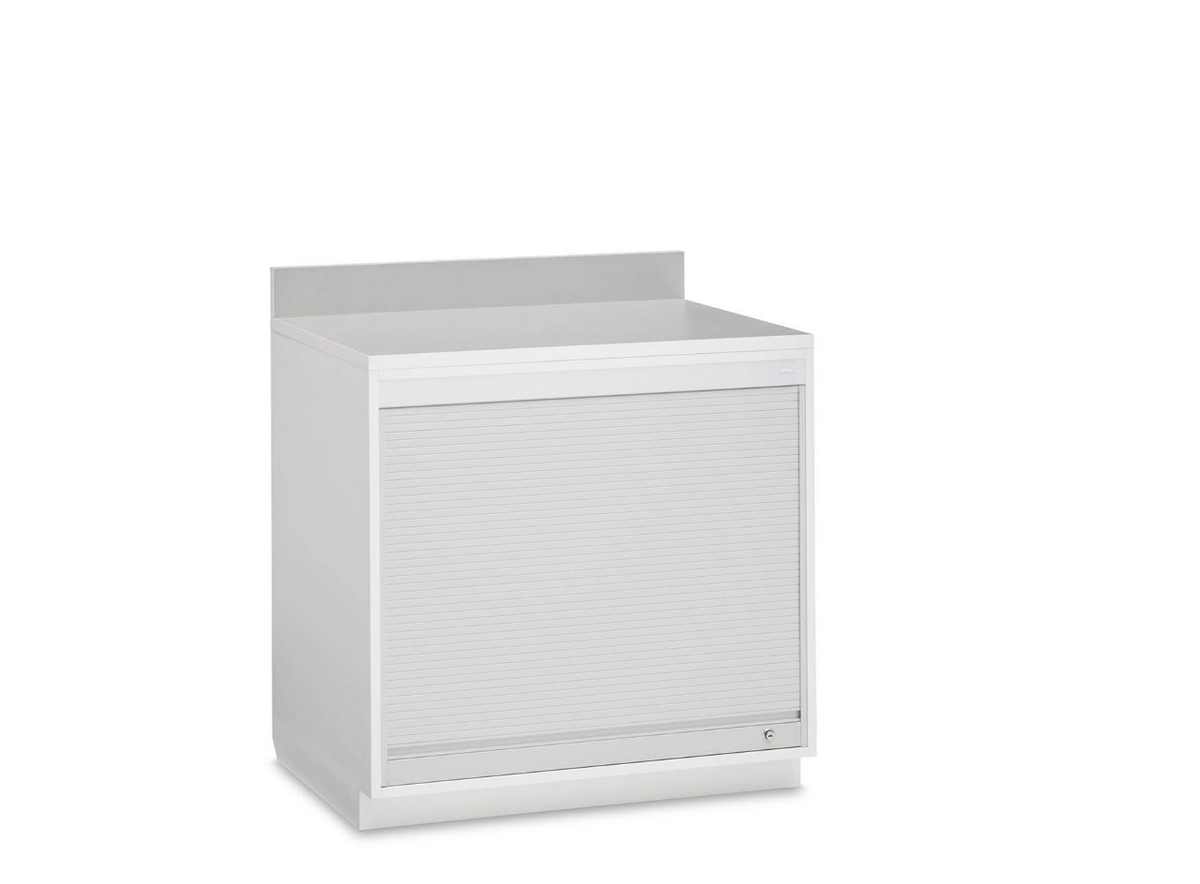

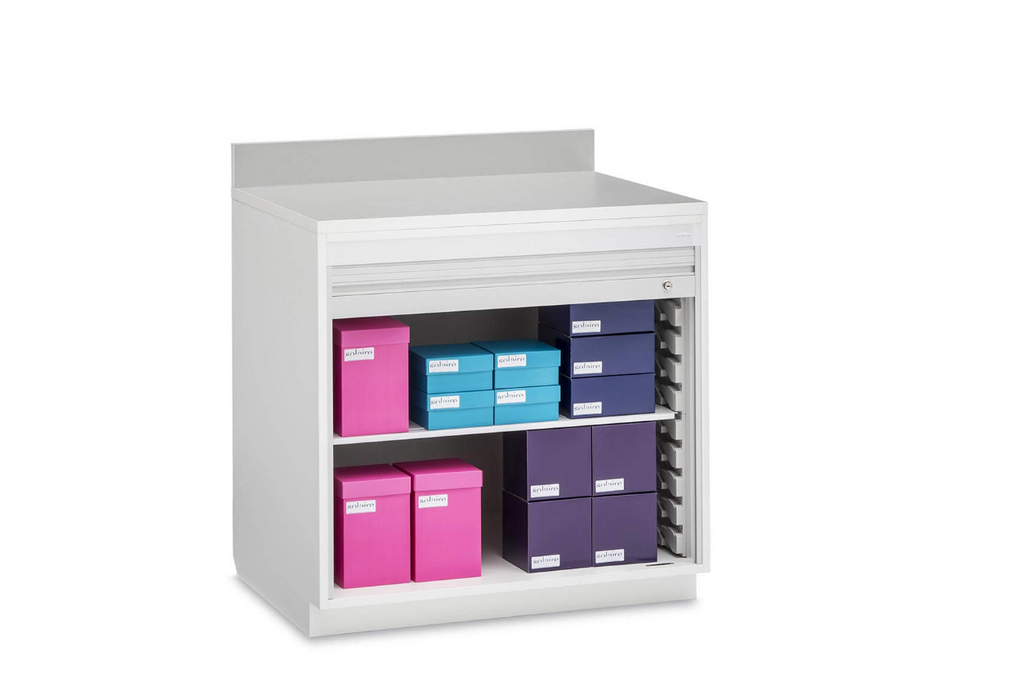

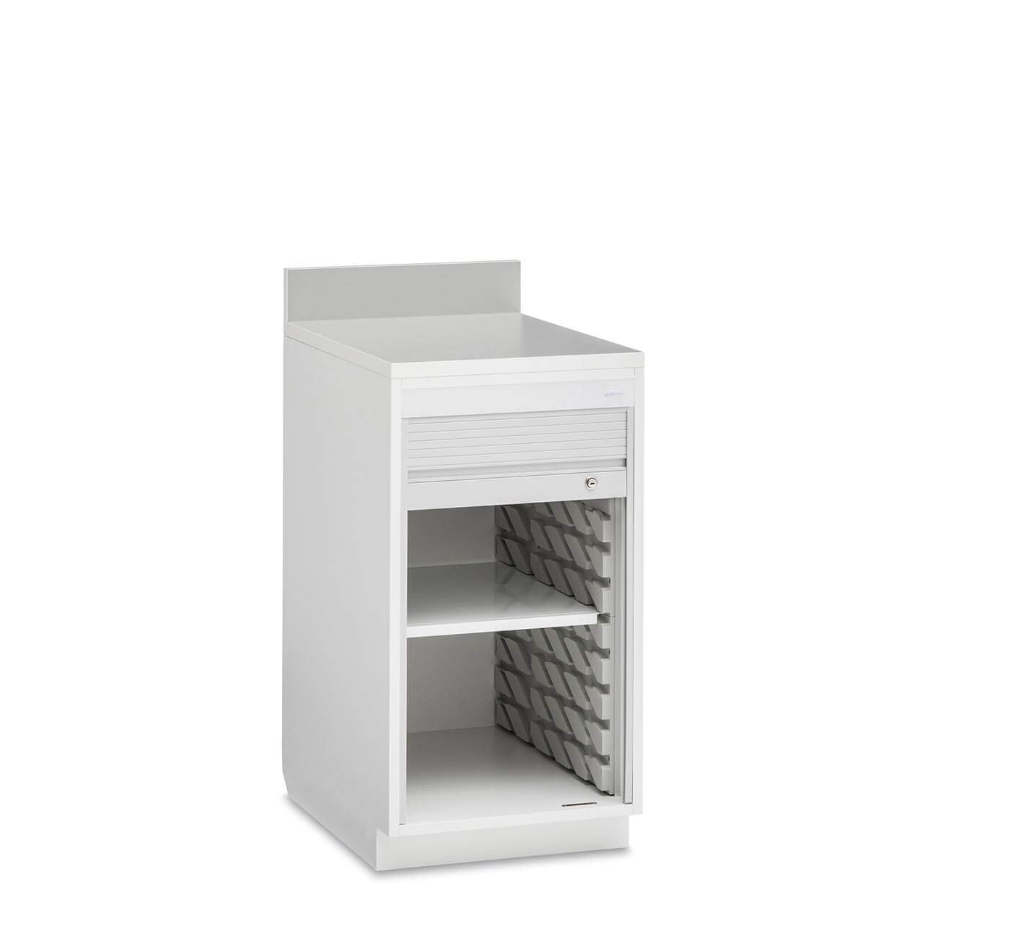

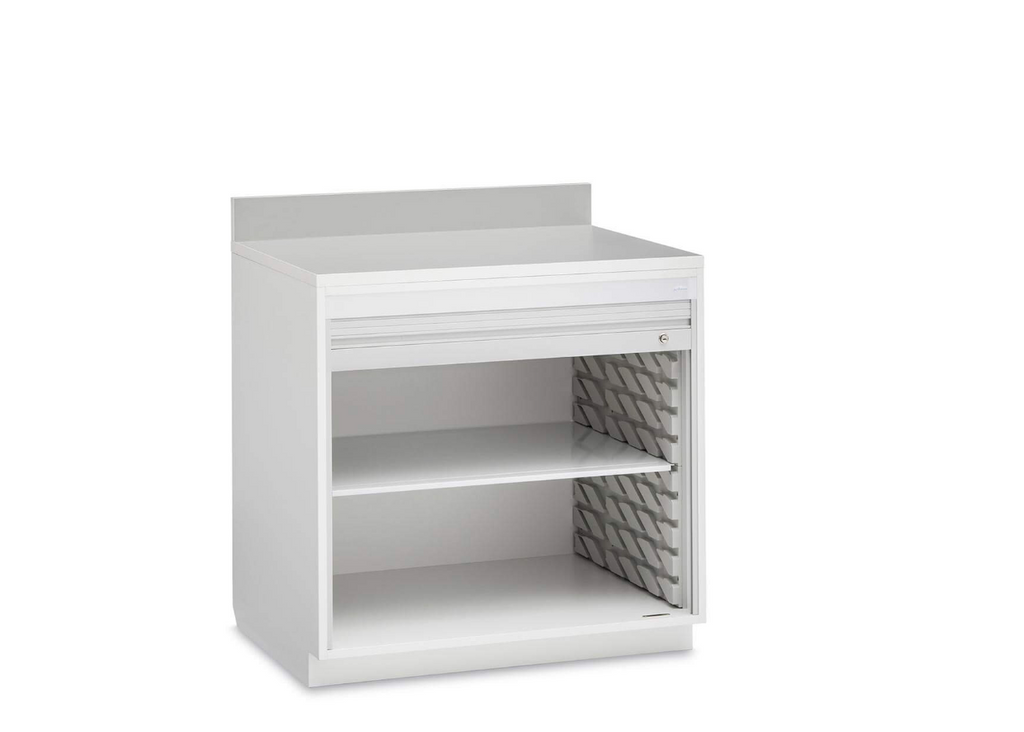

Roll-top door: exterior (interior)

• 18.75”w x 27.25″d x 34.5″h (15.5″w x 24.75″d x 23″h)
• 36”w x 27.25″d x 34.5″h (31.75″w x 24.75″d x 23″h)

Cabinet with 6”h toe kick is 36.5”h; cabinet with no toe kick is 30.5”

Interior Configuration

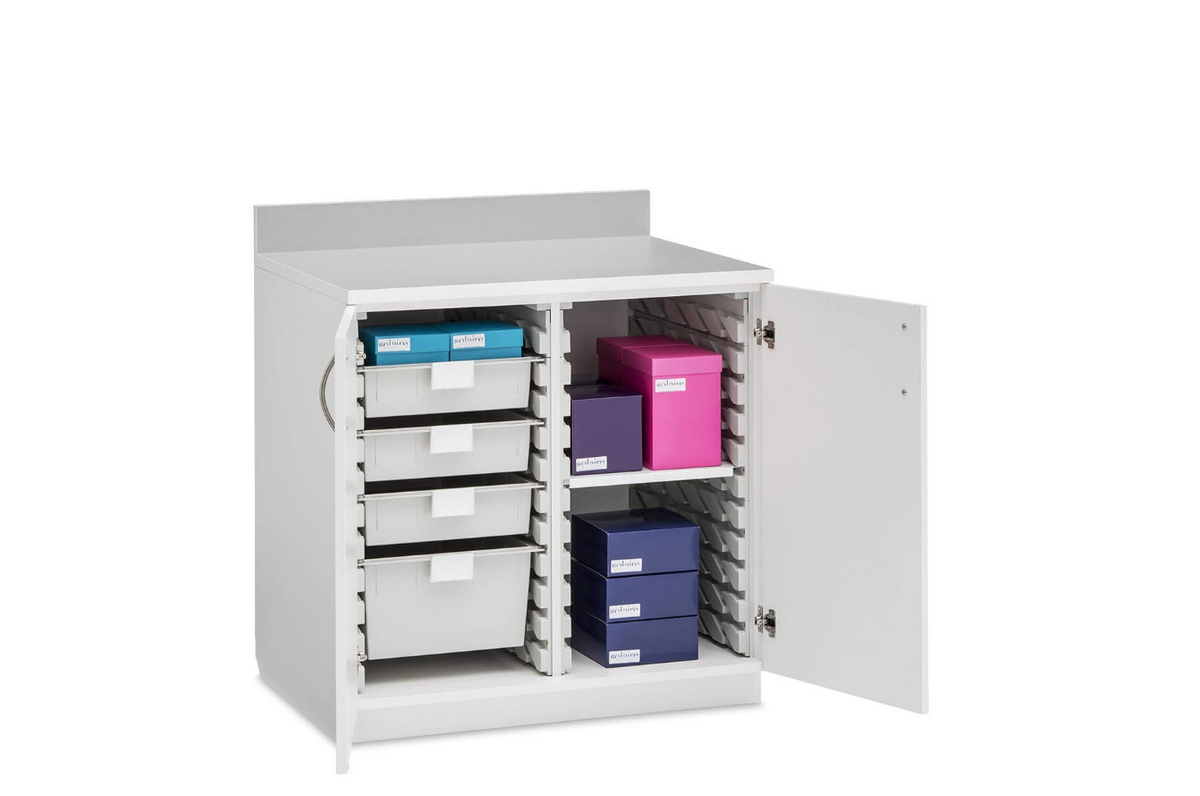

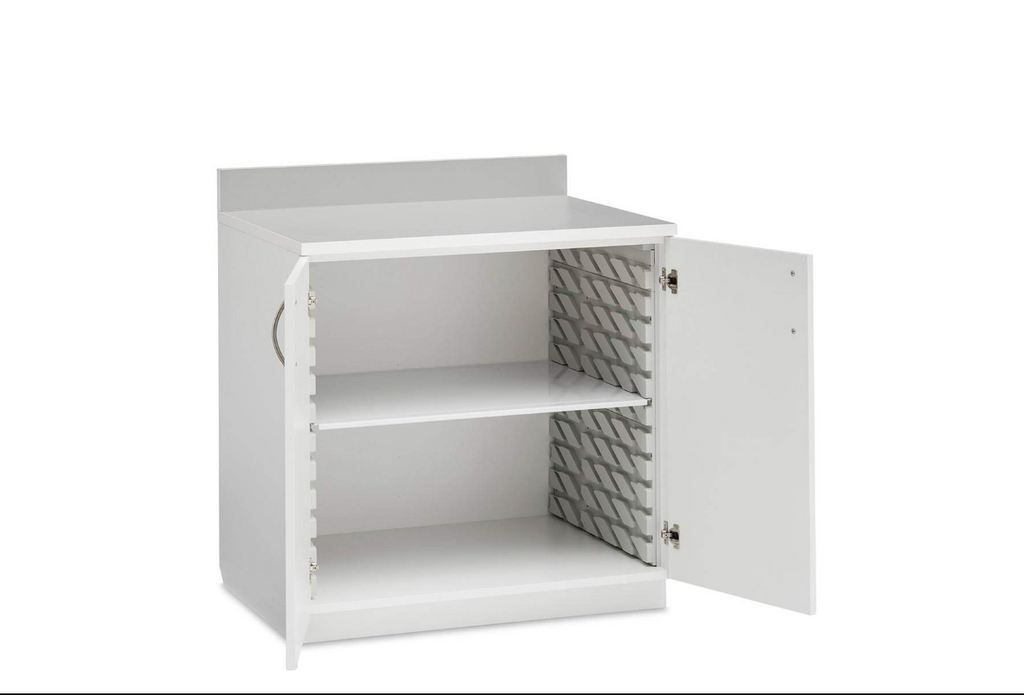

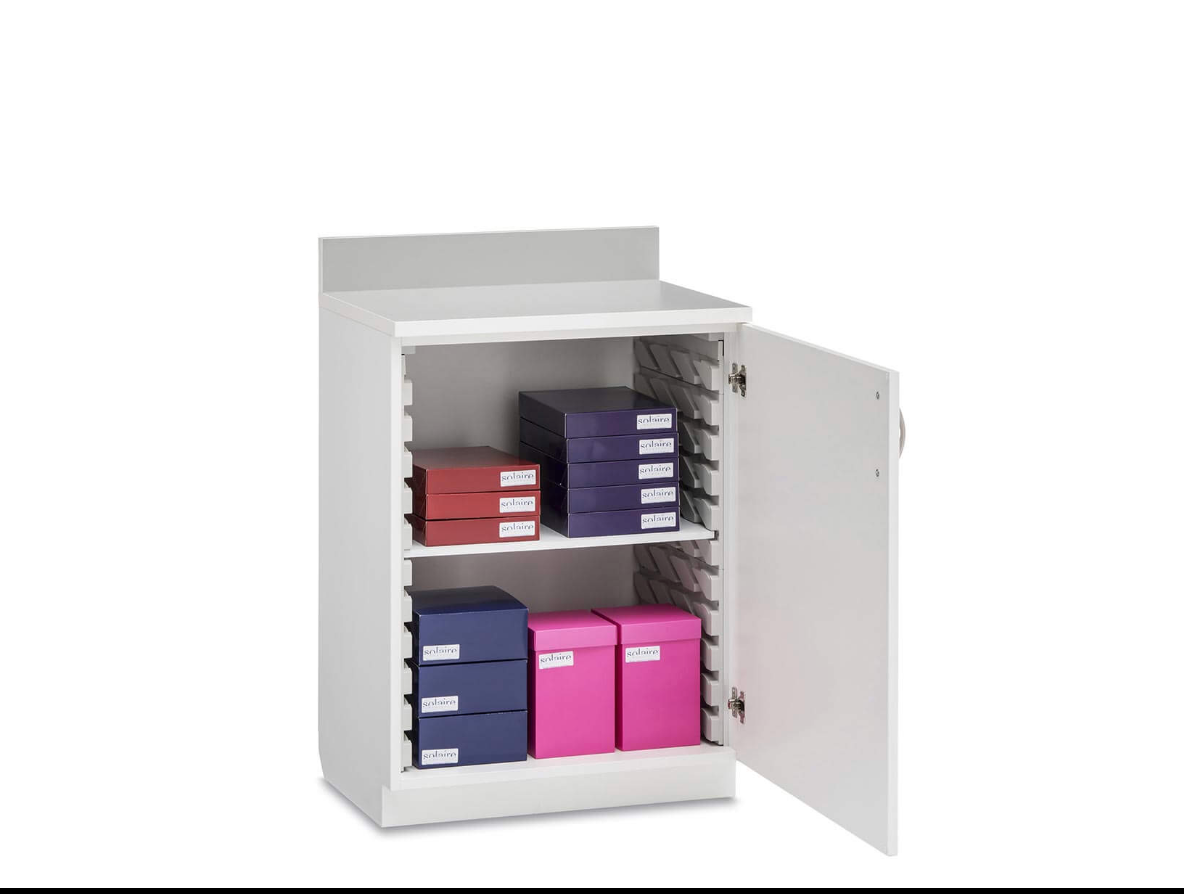

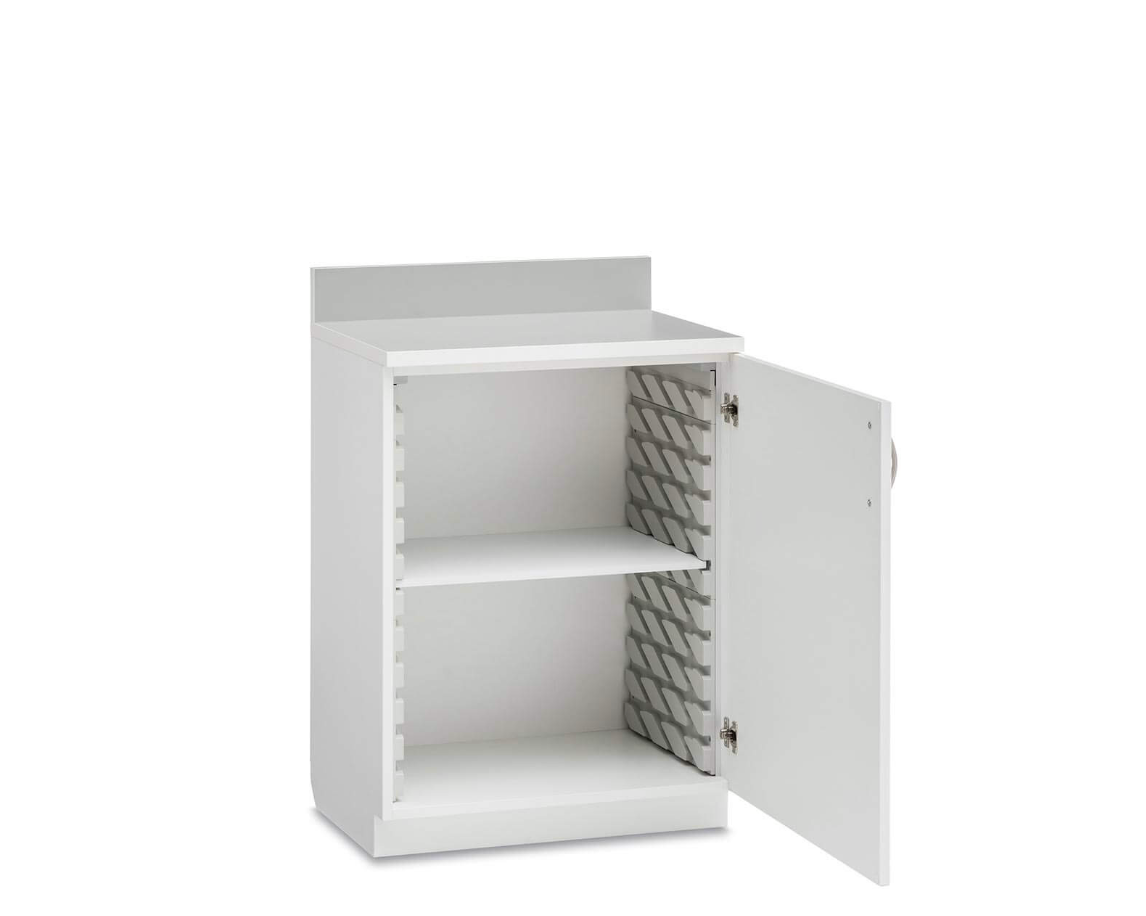

Cabinet with hinged door:

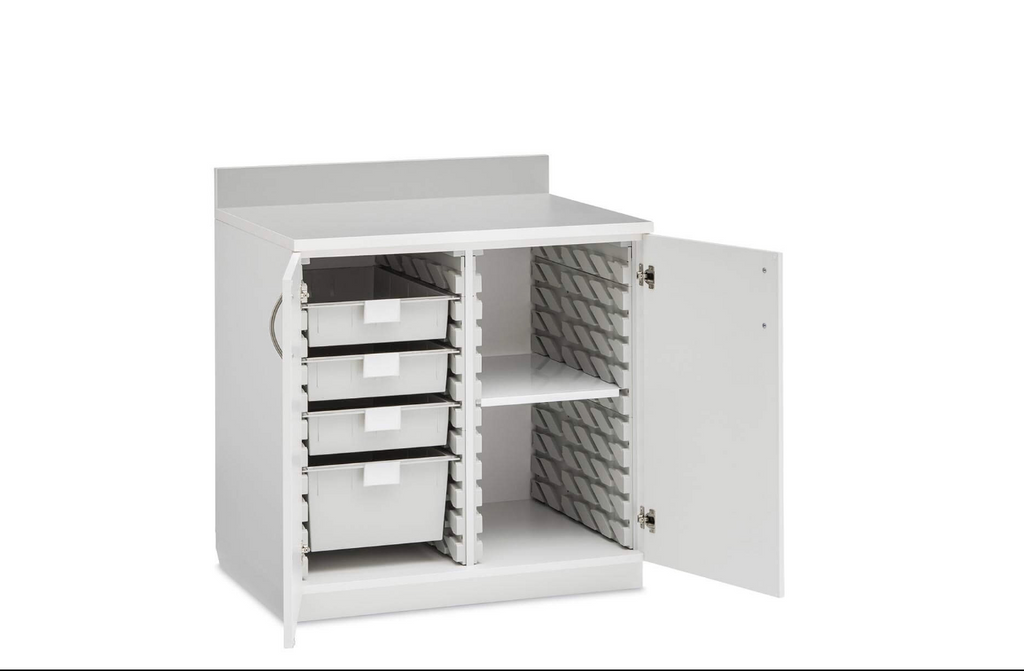

• 18 FlexCells, 36 in cabinet with center column

Cabinet with roll-top door:

• 13 FlexCells, 26 in cabinet with center column

Materials and Finishes

Cabinet with Compression Board

• Cabinet shell: Thermally fused melamine over 0.75”-thick compression board
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Thermally fused melamine over 0.75”-thick compression board
• Roll-top door slats and recessed channel: Polypropylene
• Hinges: Metal concealed European-style
• Edge banding: White ABS
• FlexCell panel: Injection-molded ABS
• Door pulls: Dull chrome-plated steel

Cabinet with AireCore

• Cabinet shell: Aluminum composite with Glacier White finish
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Aluminum composite with Glacier White finish
• Roll-top door slats and recessed channel: Polypropylene
• Hinges: Metal concealed European-style
• Edge banding: White ABS
• FlexCell panel: Injection-molded ABS
• Door pulls: Dull chrome-plated steel

Cabinet with AireCore and Brushed Aluminum

• Cabinet shell: Aluminum composite with Brushed Aluminum
• Glass doors: Clear anodized aluminum and tempered glass
• Solid-front doors: Aluminum composite with Brushed Aluminum
• Glass trim: Clear anodized aluminum
• Roll-top door slats and recessed channel: Polypropylene
• Hinges: Metal concealed European-style
• Edge banding: Brushed Aluminum Acrylic
• FlexCell panel: Injection-molded ABS
• Door pulls: Dull chrome-plated steel

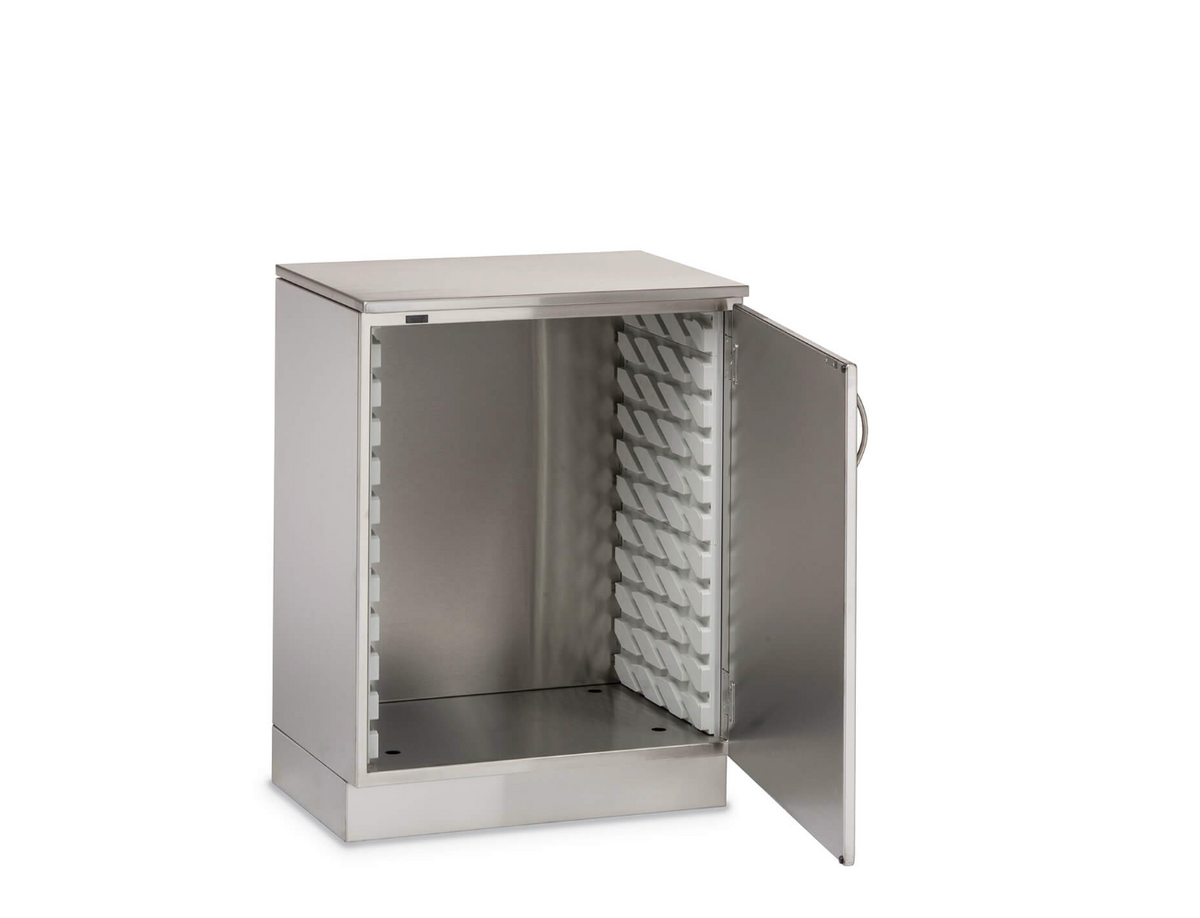

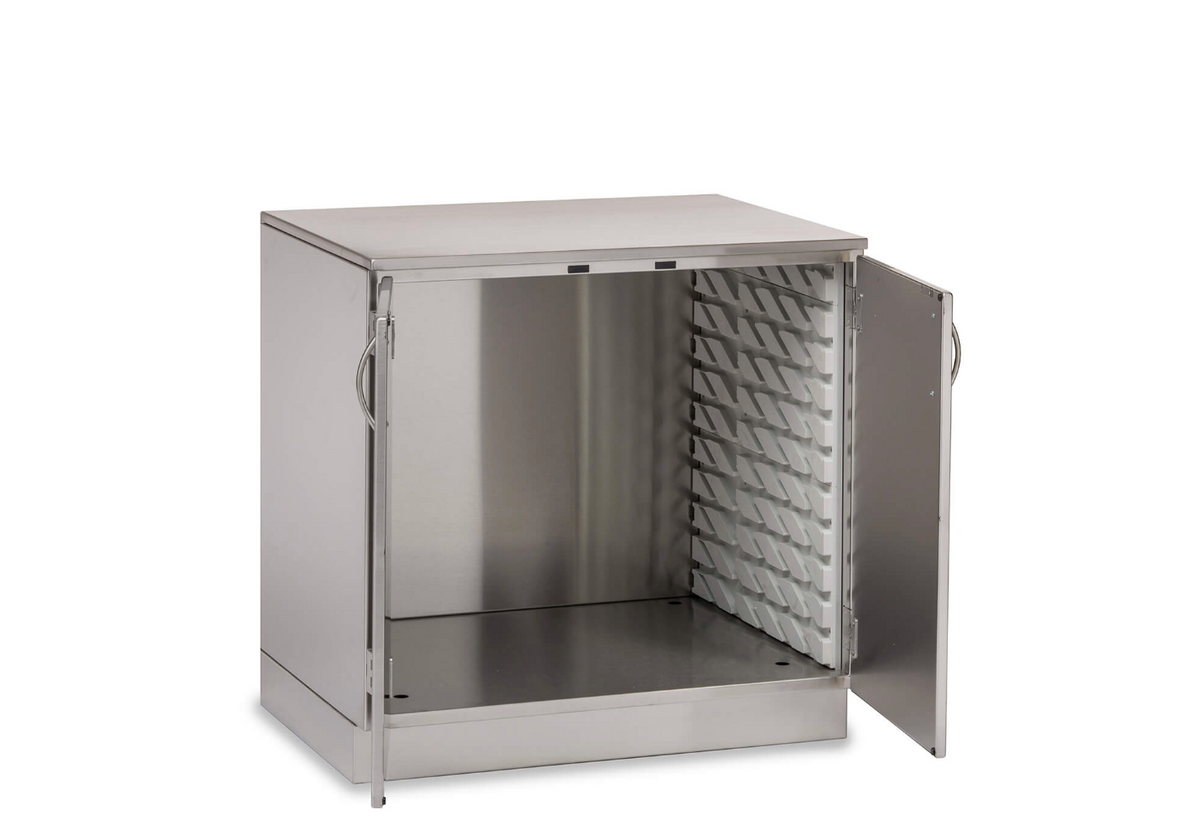

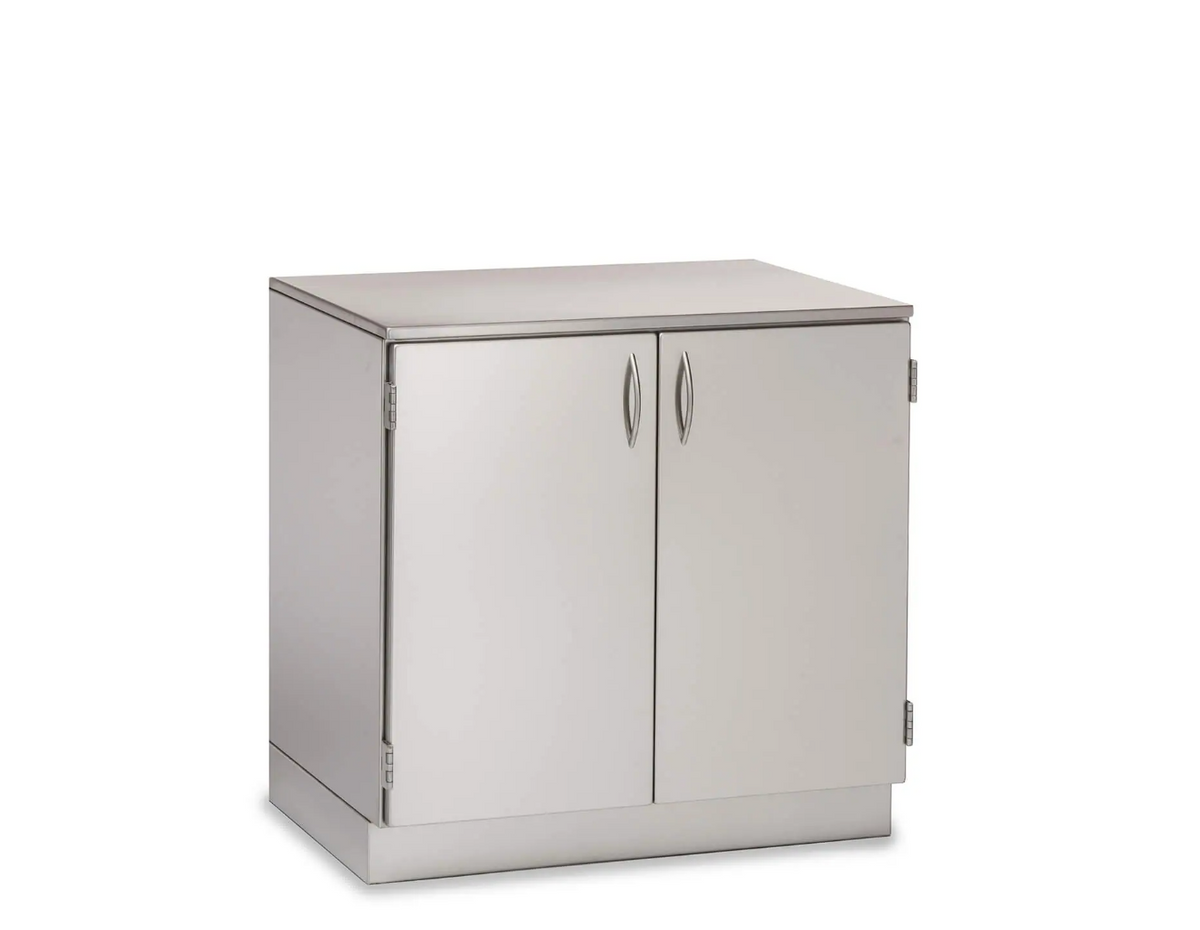

Cabinet with Stainless Steel

• Cabinet shell: 18-gauge 304 stainless steel with 18% chrome and 8% nickel analysis; exposed surfaces furnished with #4 mill finish
• Door: 0.125″ poly-sealed tempered glass or solid hinged doors with 18-gauge 304 stainless steel construction
• Hinges: Stainless steel
• Door Pulls: 5” stainless steel bow pull

Options

• Material options include compression board with melamine, stainless steel, or nonporous AireCore with Glacier White or Brushed Aluminum finish
• Compression board and AireCore cabinets with hinged doors can be specified with laminate surface
• Door can be hinged on right or left side of 18.75”w and 26.75”w cabinets
• 26.75”w cabinet comes only with hinged door
• Stainless steel available only on cabinets with hinged doors
• Cabinets with roll-top doors come in Soft White laminate
• Variety of interior components available
• Optional keyed, InterConnect lock, or InterConnect Plus lock available
• Optional 6”h toe kick or no toe kick available

Product Numbers

Hinged Door:

18.75”w x 27.25″d x 34.5″h

• Compression board: SEC2719BSLNC, SEC2719BSRNC
• AireCore: SEA2719BSLNC, SEA2719BSRNC
• AireCore with Brushed Aluminum: SEB2719BSLNC, SEB2719BSRNC
• Stainless steel: SES2719BSLNC, SES2719BSRNC

26.75”w x 19.25″d x 34.5″h

• Compression board: SEC1927BSLNC, SEC1927BSRNC
• AireCore: SEA1927BSLNC, SEA1927BSRNC
• AireCore with Brushed Aluminum: SEB1927BSLNC, SEB1927BSRNC
• Stainless steel: SES1927BSLNC, SES1927BSRNC

36”w x 27.25″d x 34.5″h

• Compression board: SEC2736BSC, SEC2736BSNC
• AireCore: SEA2736BSC, SEA2736BSNC
• AireCore with Brushed Aluminum: SEB2736BSC, SEB2736BSNC
• Stainless steel: SES2736BSC, SES2736BSNC

Roll-top Door:

18.75”w x 27.25″d x 34.5″h

• Compression board: SEC2719BRTNC
• AireCore: SEA2719BRTNC
• AireCore with Brushed Aluminum: SEB2719BRTNC

36”w x 27.25″d x 34.5″h

• Compression board: SEC2736BRTC, SEC2736BRTNC
• AireCore: SEA2736BRTC, SEA2736BRTNC
• AireCore with Brushed Aluminum: SEB2736BRTC, SEB2736BRTNC
