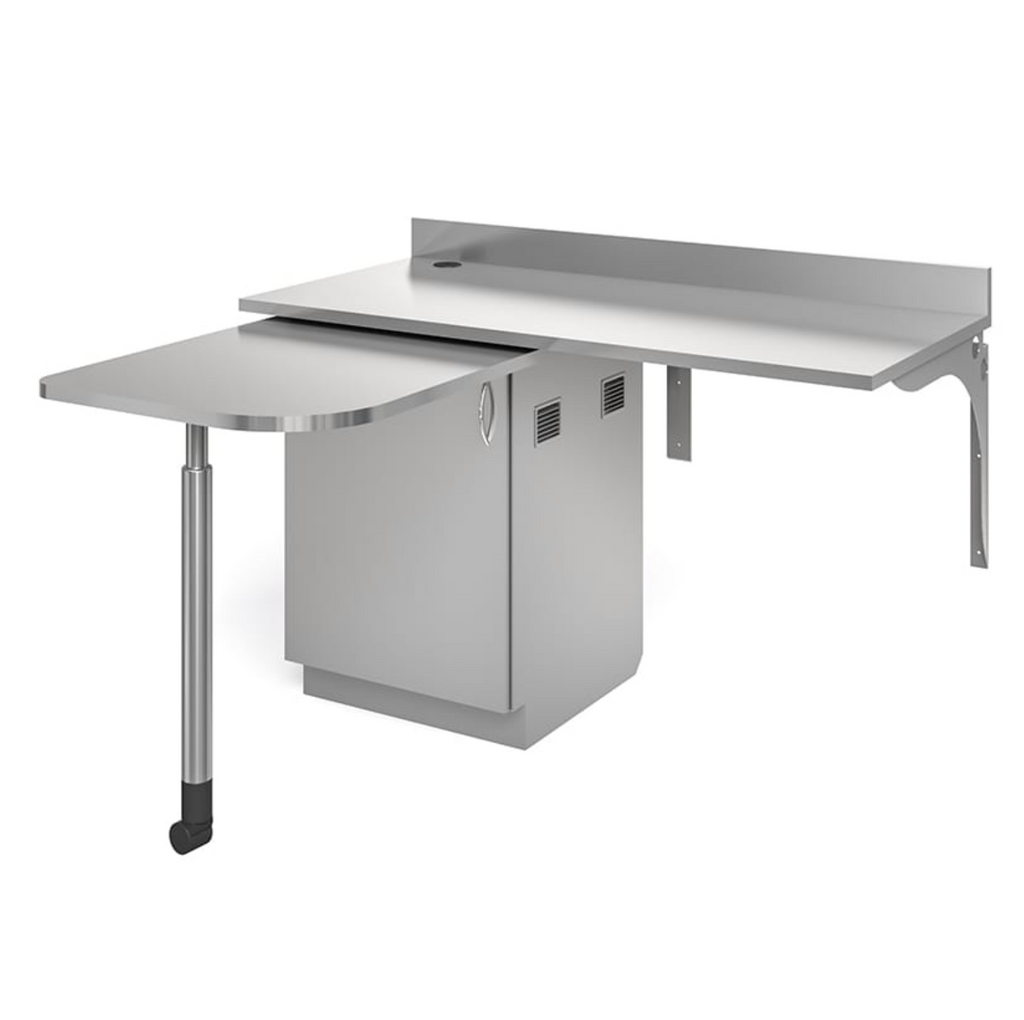

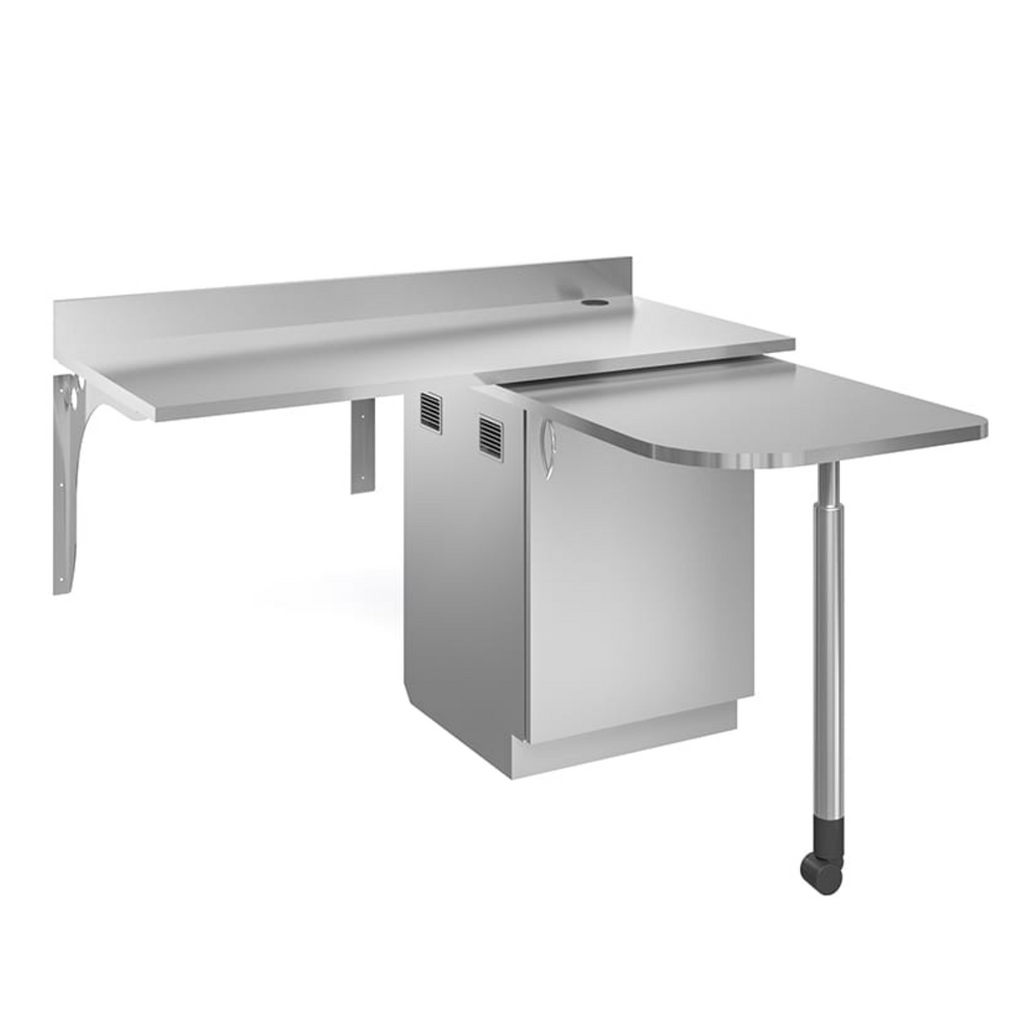

Base Cabinet with Doc Station - Evolve Architectural Series

This 60”-wide, 56”-deep, 37.5”-high base cabinet with doc station has a solid-front hinged door, 4”-high backsplash, and finished ends. It includes work surface with cord pass-through, swing-out surface, adjustable shelf with cord pass-through, adjustable leg, and attachment brackets. The base cabinet can be installed on the left or right side under the work surface. The open back on the cabinet allows for access to electrical outlets. A 4″-high toe kick is standard.

Details

Note: Overall cabinet height may vary based on selected configuration. Final dimensions will be confirmed prior to order placement.

Dimensions (nominal)

Cabinets are 60”w, 56”d, and 37.5”h

Materials and Finishes

Compression Board Cabinet

• Cabinet shell: Thermally fused melamine over 0.75”-thick compression board
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Thermally fused melamine over 0.75”-thick compression board
• Hinges: Metal, concealed European-style
• Edge banding: White ABS
• Door pulls: Dull chrome-plated steel

AireCore Cabinet

• Cabinet shell: Aluminum composite with Glacier White finish
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Aluminum composite with Glacier White finish
• Hinges: Metal, concealed European-style
• Edge banding: White ABS
• Door pulls: Dull chrome-plated steel

AireCore and Brushed Aluminum Cabinet

• Cabinet shell: Aluminum composite with Brushed Aluminum
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Aluminum composite with Brushed Aluminum
• Hinges: Metal, concealed European-style
• Edge banding: Brushed Aluminum Acrylic
• Door pulls: Dull chrome-plated steel

Stainless Steel Cabinet

• Cabinet shell: 18-gauge 304 stainless steel with 18% chrome and 8% nickel analysis; exposed surfaces furnished with #4 mill finish
• Door: 0.125” poly-sealed tempered glass or solid hinged doors with 18-gauge 304 stainless steel construction
• Hinges: Stainless steel
• Door Pulls: 5” stainless steel bow pull

Options

Material options include compression board with melamine or specified laminate, stainless steel, and AireCore with Glacier White or Brushed Aluminum finish

• Keyed, InterConnect lock, or InterConnect Plus lock (with Innerspace Cloud services)
• 6”-high toe kick or no toe kick
