Base Cabinet with Adjustable Shelves - Evolve Architectural Series

This 34.5”-high, 24”-deep base cabinet comes in 9 widths and with adjustable shelves and single and double solid-front hinged doors or no doors. A 4”-high toe kick is standard. Order countertop separately.

Details

Note: 48”-wide cabinets available only in stainless steel.

Note: Overall cabinet height may vary based on selected configuration. Final dimensions will be confirmed prior to order placement.

Dimensions (nominal)

Cabinets are 34.5”h and 24”d; cabinets with no doors are 23”d

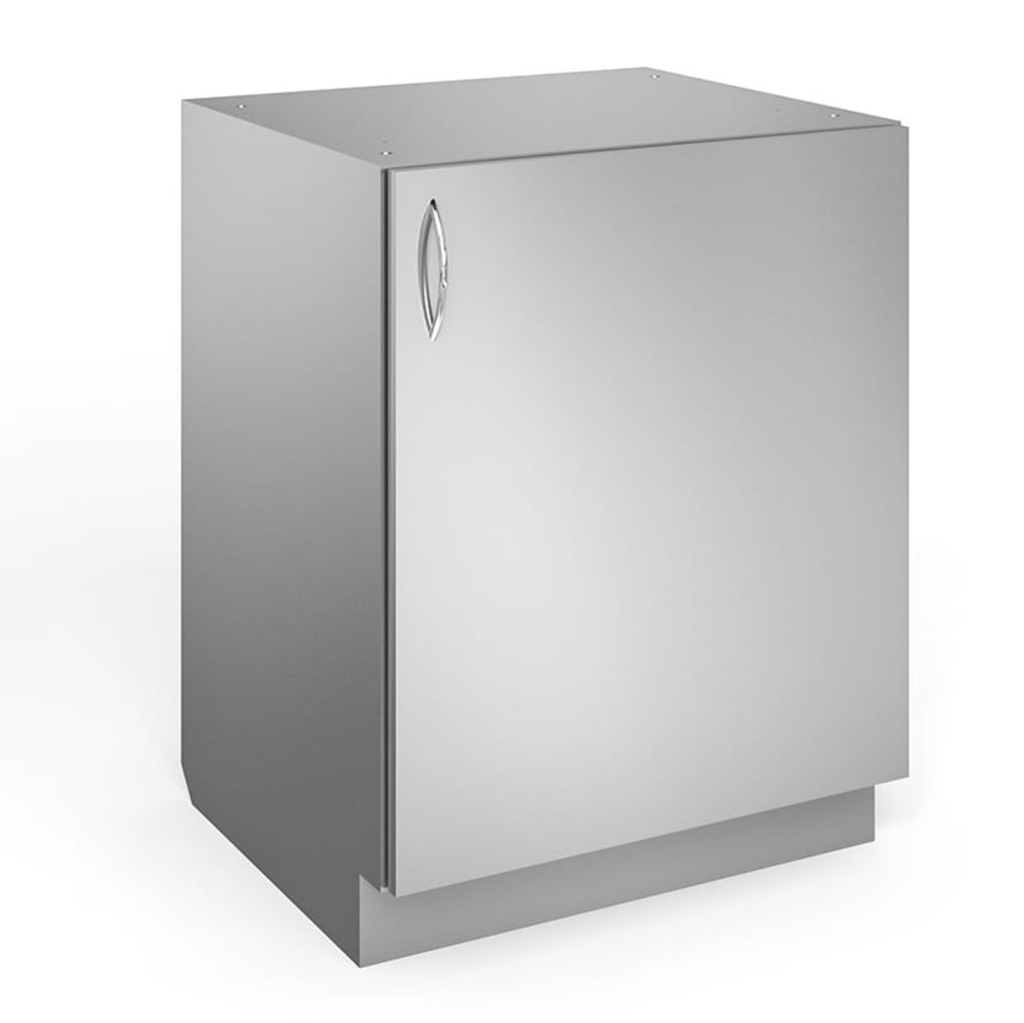

Single door with 1 adjustable shelf:

• 15”w, 18”w, 21”w, 24”w, and 27”w

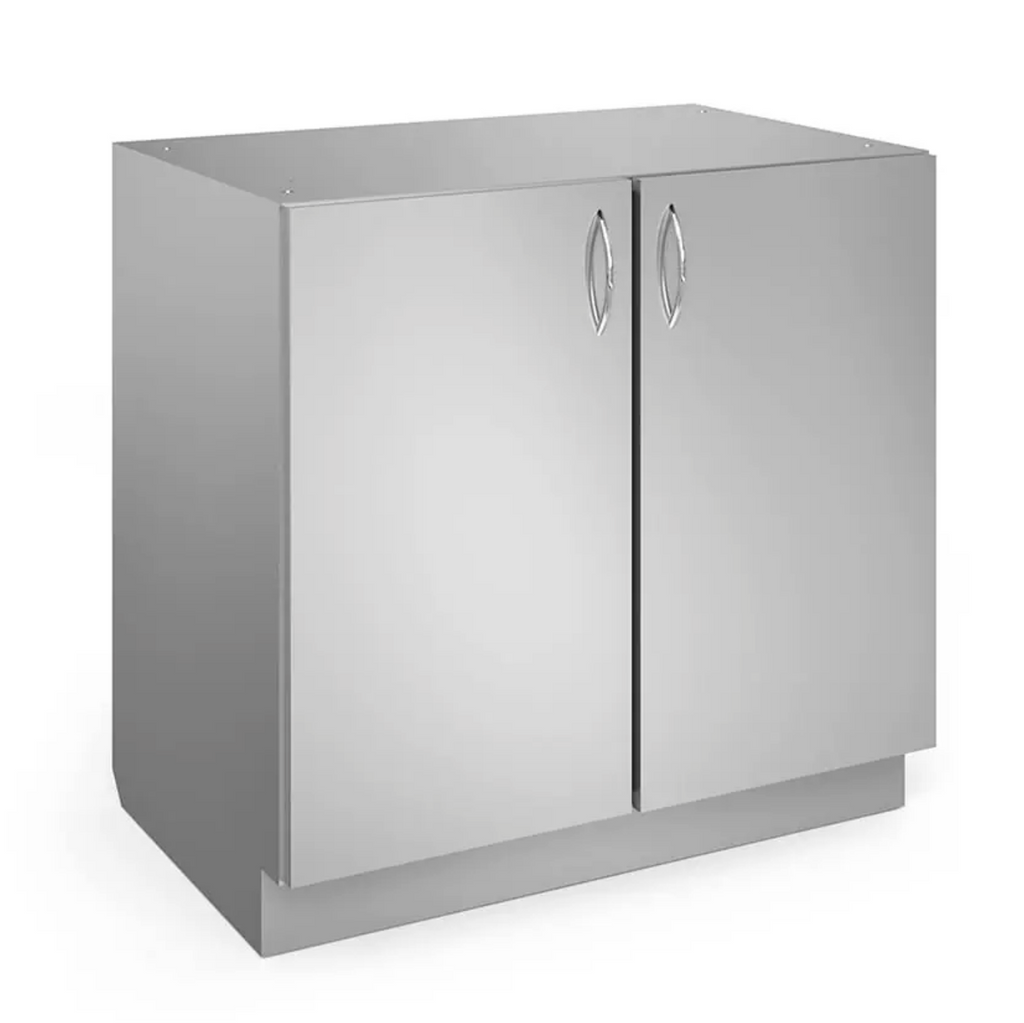

Double door with 1 adjustable shelf:

• 30”w, 36”w, 42”w, and 48”w

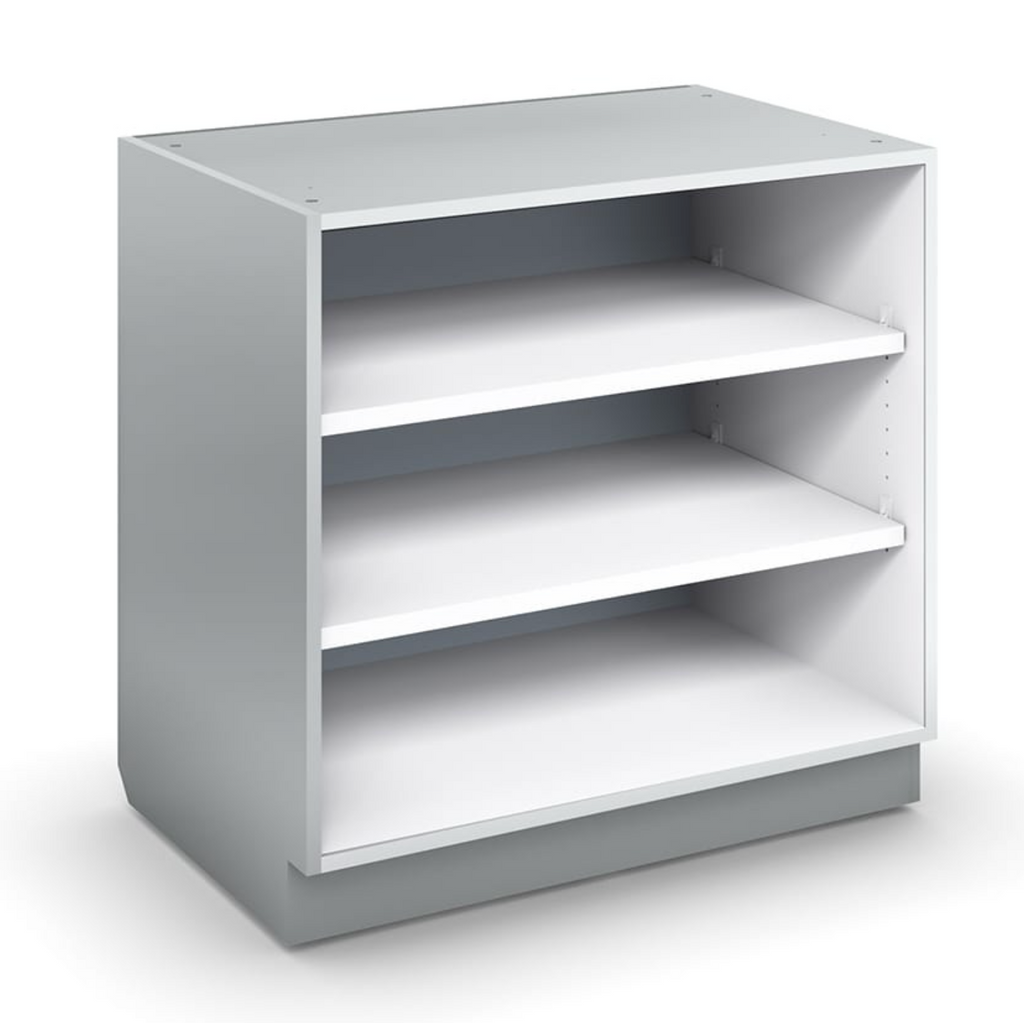

No doors with 2 adjustable shelves:

• 15”w, 18”w, 21”w, 24”w, 27”w, 30”w, 36”w, 42”w, and 48”w

Materials and Finishes

Compression Board Cabinet

• Cabinet shell: Thermally fused melamine over 0.75”-thick compression board
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Thermally fused melamine over 0.75”-thick compression board
• Hinges: Metal, concealed European-style
• Edge banding: White ABS
• Door pulls: Dull chrome-plated steel

AireCore Cabinet

• Cabinet shell: Aluminum composite with Glacier White finish
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Aluminum composite with Glacier White finish
• Hinges: Metal, concealed European-style
• Edge banding: White ABS
• Door pulls: Dull chrome-plated steel

AireCore and Brushed Aluminum Cabinet

• Cabinet shell: Aluminum composite with Brushed Aluminum
• Glass doors: Clear anodized aluminum and tempered glass
• Glass trim: Clear anodized aluminum
• Solid-front doors: Aluminum composite with Brushed Aluminum
• Hinges: Metal, concealed European-style
• Edge banding: Brushed Aluminum Acrylic
• Door pulls: Dull chrome-plated steel

Stainless Steel Cabinet

• Cabinet shell: 18-gauge 304 stainless steel with 18% chrome and 8% nickel analysis; exposed surfaces furnished with #4 mill finish
• Door: 0.125″ poly-sealed tempered glass or solid hinged doors with 18-gauge 304 stainless steel construction
• Hinges: Stainless steel
• Door Pulls: 5” stainless steel bow pull

Options

Material options include compression board with melamine or specified laminate, stainless steel, and AireCore with Glacier White or Brushed Aluminum finish

• Single or double solid-front hinged door or no door
• Keyed, InterConnect lock, or InterConnect Plus lock (with Innerspace Cloud services)
• 6”-high toe kick or no toe kick
• Countertop can be ordered separately
• Additional shelves
